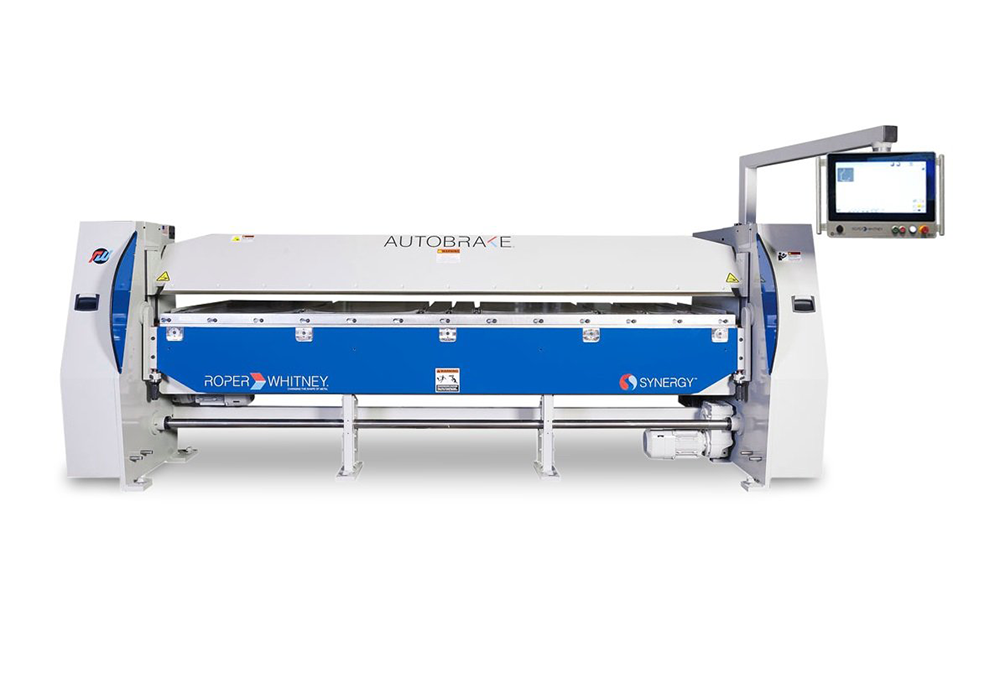

10 Foot 16 Gauge Automatic Folding Brake

Manufacturer: Roper Whitney

Model: AB1016


Quote Request

 Thank you for your quote request, we will be in touch shortly.

The Roper Whitney AB1016 Autobrake provides accuracy and repeatability when forming up to 10ft long 16 gauge or lighter materials. This sheet metal brake is a high speed solution to make multiple bends. The backgauge provides accurate part location through the use of servo drives and are expandable with optional backgauge extensions. The rigid design includes crowning adjustments to ensure accurate bending regardless of raw material stresses. Various options of tooling are provided to help customize to your specific needs, and can be provided in tool steel or hardened.

Standard Features
  • 30° Clamping Beam
  • Manual Crowning Adjustments
  • 61” Backgauge
  • Spring Steel Backgauge Fingers
  • 15” Touchscreen Monitor with Synergy Control
  • Konnect Software Package (Included While Under Warranty
Specifications and Capacities

Weight

6900 lbs

Dimensions

155 × 56 × 60 in

Bending capacity (Mild Steel)

16 ga/ 1,6 mm

Bending capacity (Stainless)

20 ga/ 1,2 mm

Bending length

122 in/ 3100 mm

Bending bars

0.787 in/ 20 mm, 0.390 in/ 10 mm, 0.250 in/ 7 mm

Back gauge depth (standard)

39.37 in/ 1000 m

Clamping beam opening height

4.5 in/ 114 mm

Clamping beam straight bar tooling

20 degrees

Folding beam adjustment

2 in/ 50 mm

Crowning of the folding beam

5-point 0" – .030" adjustment

Working height

35 in/ 889 mm

Machine weight

6,202 lbs/ 2,819 kg

Back gauge servo motor

3/4 hp

Clamping beam motor

1.5 hp/ 1.1 kw

Bending beam motor

1.5 hp/ 1.1 kw
