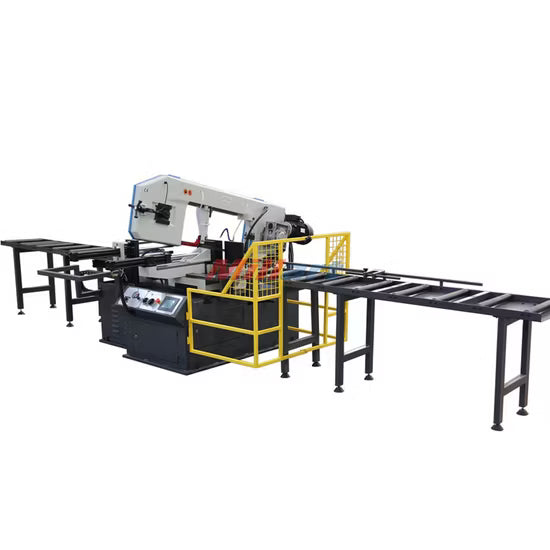

18" x 9.8" Automatic Horizontal Mitre Band Saw – Hydrauli...
The BS-460GB Horizontal Mitre Band Saw is a high-performance industrial metal cutting machine designed for precision cutting, heavy-duty production, and fabrication applications. Built with a robust gear drive system and servo motor, this European-design band saw provides powerful cutting capability, excellent stability, and long service life.
This automatic horizontal band saw supports both manual and automatic operation modes, making it suitable for production environments and metal fabrication workshops. The machine features a hydraulic-controlled saw bow system, automatic feeding and clamping, and a coolant system to improve cutting accuracy and extend blade life.
With large cutting capacities and adjustable mitre cutting angles, the BS-460GB is ideal for cutting steel bars, pipes, structural profiles, and other metal materials commonly used in manufacturing and industrial applications.
Standard Features
- Heavy duty horizontal metal cutting band saw
- Hydraulic controlled saw bow movement
- Gear driven transmission system for stable cutting
- Servo motor for powerful cutting performance
- Automatic feeding and clamping system
- Adjustable mitre cutting capability
- Coolant system to extend blade life
- Automatic stop after cutting material
- Safety protection system with guard and power cut-off
- European design for precision sawing performance
Machine Features
- Two-speed band control motor
- Vertical rotation system with adjustable tapered bearings
- Electro-mechanical blade tensioning system with microswitch
- Manual and automatic operation modes
- Saw bow rotation for angle cutting
- Hydraulic cylinder controls the falling speed of saw bow
- Block feeder system for fixed length cutting
- Automatic machine stop after completing the cut
- Hydraulic system controls jaw tightening and saw bow movement
- Cooling system improves cutting precision and blade lifespan
- Optional PLC control system available
- Automatic material feeding and clamping
- Metric and inch feeding length options
- 3 meter feeding platform and back support table
- Operator safety protection with guarding system
- Maximum single feeding length: 500 mm
Specifications & Capacities
Model: BS-460GB
Maximum Cutting Capacity:
90°
Round: 330 mm (13")
Rectangular: 460 × 250 mm (18" × 9.8")
60° Right
Round: 205 mm (8")
Rectangular: 205 × 250 mm (8" × 9.8")
45° Right
Round: 305 mm (12")
Rectangular: 305 × 250 mm (12" × 9.8")
30° Right
Round: 330 mm (13")
Rectangular: 400 × 250 mm (16" × 9.8")
Blade Size: 34 × 0.9 × 3960 mm
Blade Speed:
50Hz: 40 / 80 MPM (Up to 100 MPM)
60Hz: 48 / 96 MPM
Motor Power: 3.7 kW Servo Motor
Drive System: Gear Drive
Machine Dimensions
Packing Size: 250 × 230 × 163 cm
Net Weight: 1520 kg
Gross Weight: 1655 kg
