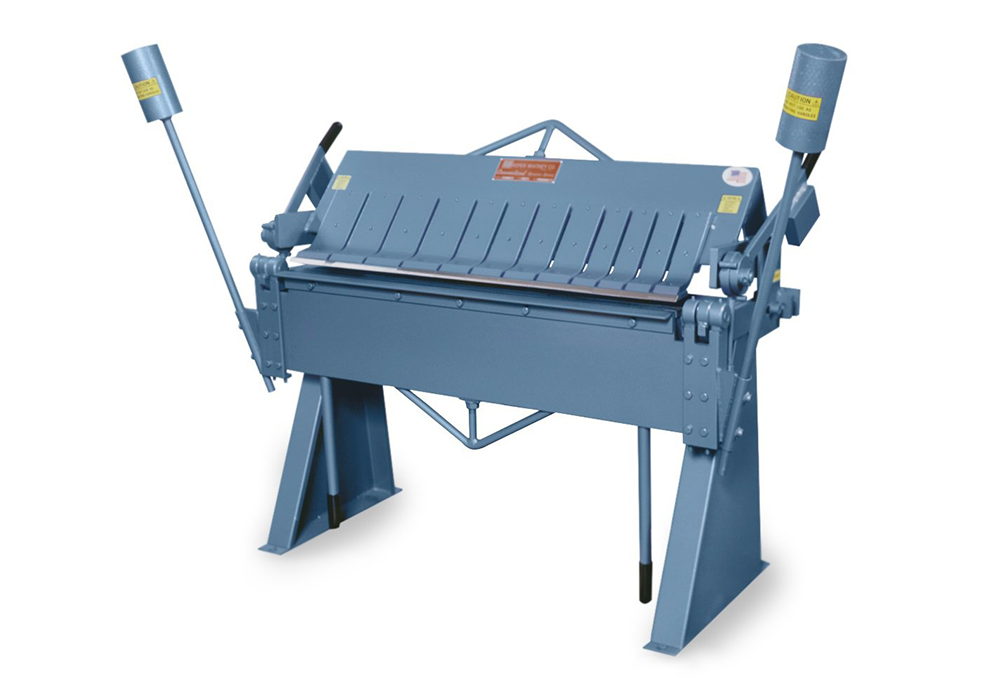

6 Foot 16 Gauge Box and Pan Brake

Manufacturer: Roper Whitney

Model: U-616-6


Quote Request

 Thank you for your quote request, we will be in touch shortly.

The Roper Whitney floor mounted manual bending brakes are precision machines designed for accurate bending with rated capacities. Features of the Connecticut box and pan bending brake are a 6-inch depth of box capacity, 6 feet of 16 gauge bending capacity, positive clamping pressure adjustment, apron stop rod for repeat bends, replaceable bushings and hinge pins, long handles for extra leverage, work support angle bar for full capacity 1-inch minimum flange, improved leg design for lighter weight, all steel construction with no castings, heavy tie rods for minimum deflection, removable bending bar and angle, adjustable apron hinges and positive rear material gauge adjustment.

Standard Feature
  • Length - 72”
  • Bending Angle: 0-135°
  • Beam Adjustment: 1”
  • Min Reverse Bend: 1/2”
  • Positive clamping pressure adjustment
  • Adjustable apron hinges and a positive rear material gauge adjustment
  • Apron stop rods for repeat bends
  • Heavy tie rods for minimum deflection
Specifications and Capacities

Weight

1800 lbs

Dimensions

91 × 54 × 35 in

Bending length

72 in/ 1830 mm

Capacity mild steel, 1-inch flange, with bending bar and angle in place

16 ga/ 1.60 mm

Capacity mild steel, 1-inch flange, with bending angle removed

1/4 in/ 6.35 mm

Capacity mild steel, 1-inch flange, with bending bar and angle removed

24 ga/ 0.61 mm

Minimum reverse bend (bar and angle removed)

1/4 in/ 6.35 mm

Maximum lift of beam

1 5/8 in/ 41 mm

Finger widths

3, 4 and 5 in/ 76, 101 and 127 mm

Maximum depth of box

6 in/ 152 mm

Front to rear adjustment

1 1/8 in/ 28.5 mm
