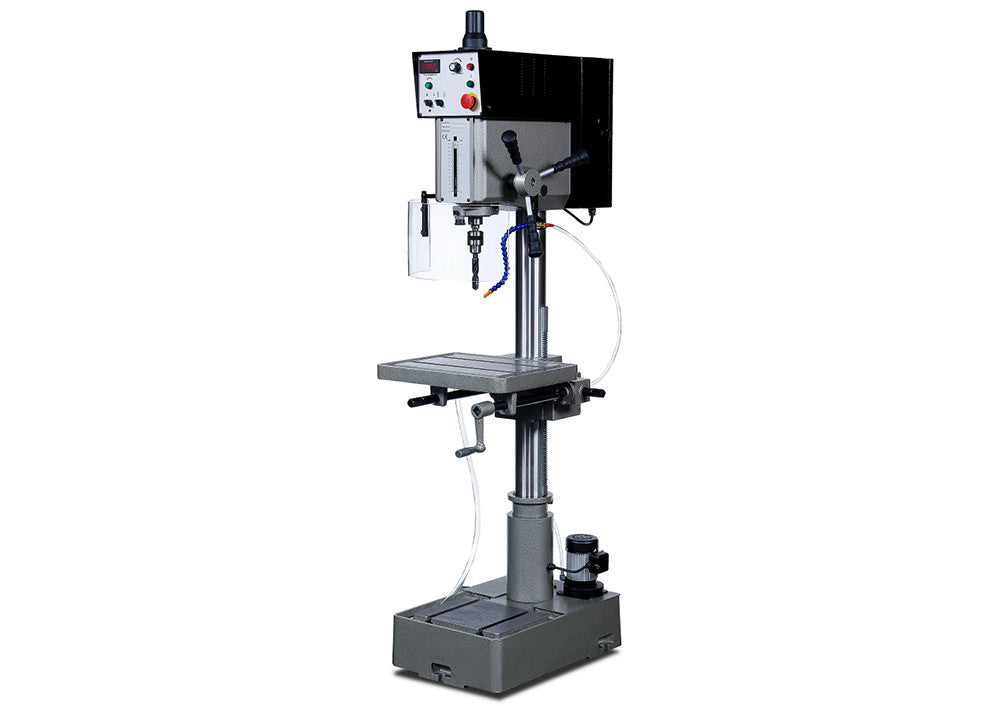

1" Capacity Drill Press

Manufacturer: Linmac

Model: DP-915AH

Quote Request

 Thank you for your quote request, we will be in touch shortly.

The Linmac DP-915AH is a variable speed drill press with inverter timing belt driven head. It allows users to drill and tap various steels at the proper speed, which extends tooling life and avoids unnecessary energy lost. When drilling at the exact speed, the tooling life can last for longer life than the regular pulley driven drills. Wide casting column provides strong support to the entire machine and reduces flexing as full 25mm (1”) capacity drilling. The rigid base and the work table are made of premium casting iron. The wide T-slot helps securing vises, tooling or workpieces well. DP-915AH drill has other available options for cooling system, guarding and a halogen work lamp.

Standard Features
  • Timing Belt Driven with Inverter variable Speed
  • Manual Down Feed
  • Auto Reverse Tapping
  • Digital RPM Readout
  • High Precision T-Slot Work Table
  • Integrated Coolant System
    • Specifications and Capacities
    • Drilling Capacity #3MT 1”
    • Swing 16”
    • Quill Diameter 2-1/2”
    • Column Diameter 3-5/8”
    • 5/8” Table T-Slot
    • Cast Iron Base 15” x 23”
    • Machine Weight 572 lbs.
    • Tapping Capacity 5/8”
    • Spindle Travel 5-1/2”
    • Table Size 18” x 14”
    • Spindle Nose to Table 26.8”
    • Spindle Nose to Base 43.28”
    • Packing size (L x W x H) 820 x 622 x 2000 mm
      Linmac

      1" Capacity Drill Press

      The Linmac DP-915AH is a variable speed drill press with inverter timing belt driven head. It allows users to drill and tap various steels at the proper speed, which extends tooling life and avoids unnecessary energy lost. When drilling at the exact speed, the tooling life can last for longer life than the regular pulley driven drills. Wide casting column provides strong support to the entire machine and reduces flexing as full 25mm (1”) capacity drilling. The rigid base and the work table are made of premium casting iron. The wide T-slot helps securing vises, tooling or workpieces well. DP-915AH drill has other available options for cooling system, guarding and a halogen work lamp.

      Standard Features
    • Timing Belt Driven with Inverter variable Speed
    • Manual Down Feed
    • Auto Reverse Tapping
    • Digital RPM Readout
    • High Precision T-Slot Work Table
    • Integrated Coolant System
      • Specifications and Capacities
      View product

      • QPS Certification

        All equipment electrically approved for Canadian use
