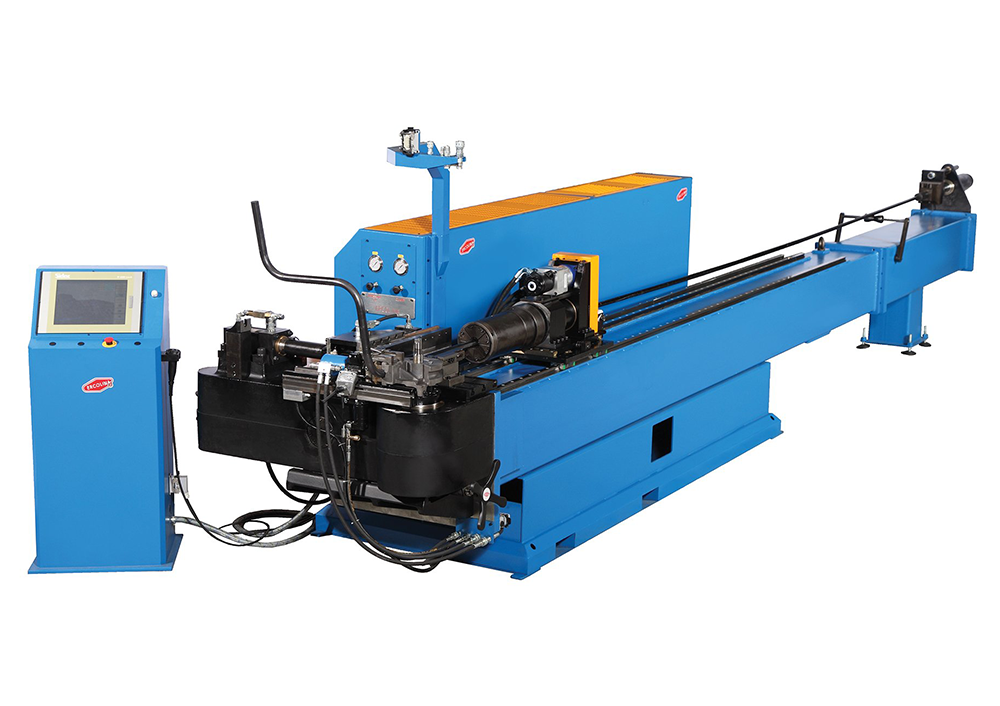

4.75" Automatic CNC Mandrel Tube Bender
$0.00
Unit price
/
Unavailable
Ercolina’s GB100SCNCV2 mandrel bender is ideal for industrial mandrel bending tube, pipe, square and rectangular profiles to a center line radius as tight as 1.5 x diameter. Large radii tooling is available to 16″ CLR.
Standard Features
- Mild steel tube capacity 4¾” (.187 wall)
- Stainless tube capacity 4¾” (.187 wall)
- Square tube capacity 4½” (.125 wall)
- A36 pipe capacity to 3″ Sch. 40
- Interactive PLC touch screen offers easy access to auto and manual operating modes, system diagnostics and multiple language capability
- GB100CNC control of 7 axis with Windows controller
- Programmable bend angles with independent material springback setting for each bend
- Programmable auto mandrel positioning allows operator to optimize extraction for improved bend quality
- Programmable clamping, pressure die and boost movements with manual override
- USB for unlimited program memory storage and communication
- Precision encoders on each axis
- Touch screen displays absolute (ABS) or incremental (INC) positioning with inch or metric readout
- Programmable tail stock interference zone monitors position and eliminates workhead collision
- Standard hydraulic ports accept Ercolina’s patented (KST) clam shell clamp system
- Accepts YBC and XYZ input values
- Y – Auto Feeding Hydraulic
- B – Auto Feeding Hydraulic
- C – Bending Hydraulic CNC
Specifications and Capacities
- Tube Capacity – Mild Steel 4¾″ (.187 wall) KST std., Stainless 4¾″ (.187 wall) KST std., Square Tube 4″ (.125 wall) KST std.
- Pipe Capacity – A36 3″ Sch. 40
- Bending Radius 16″
- Bending Radius 1.5 x Ø
- Material Length – Standard table 13′
- Hydraulic Clamping (KST) Clam Shell
- (C Axis) Rotation / Bend Angle CCW / 0° to 180°
- (B Axis) Bend Plane Rotation Auto positioning with
- (Y1 Axis) Distance Between Bends digital display
- (X2) Pressure Die Linear Travel Programmable with digital readout
- (Y2) Pressure Die In-feed
- Program Storage Unlimited with USB
- Hydraulic Reservoir 40 gal.
- Motor (horse power @ 480V) 30
- Power Three Phase 480V
- Dimensions (Height x Width x Length) 55″ x 51″ x 298″
- Weight (Dry) 7,200 lbs.
