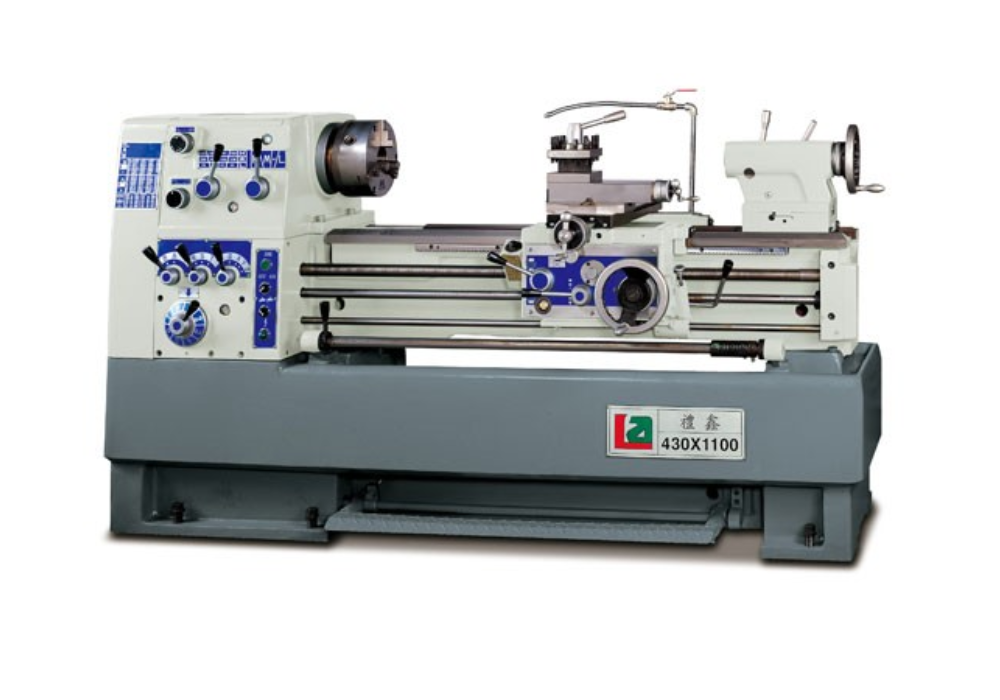

17" Swing 44" Between Centers High Speed Precision Lathe

Manufacturer:

Model: LA-430x1100


Quote Request

 Thank you for your quote request, we will be in touch shortly.

$19,700 USD / $26,500 CAD

Standard Features
  • 8 Spindle Speeds, from 35 to 2,000 rpm
  • 2-Axis Digital Readout
  • 5-Piece Quick-Change Tool Post
  • Precision-Ground Hardened Ways
  • Micro Carriage Stop
  • Metric and Imperial Thread Cutting
  • 3-Jaw and 4-Jaw Chucks
  • Chuk Guard with Limit Switch
  • LED Work Light
  • Face plate lets you bolt large but not long pieces in place.
  • Steady rest and follow rest brace the shaft and help prevent wobbling.
  • Emergency Foot Brake
  • Integrated Coolant System
  • Rigid Castings
Specifications and Capacities

Capacity

  • Width of bed: 12”
  • Total travel of top slide: 4-3/4”
  • Swing over bed: 17”
  • Swing over cross slide: 10-3/4
  • Swing in gap: 24”
  • Gap width in front of face plate: 5-7/8”
  • Height of center from leg bottom: 42-3/8”
  • Distance between centers: 44"

Headstock

  • Number of spindle speeds: 12 steps
  • Spindle bore: Ø2 1/4”
  • Type of spindle nose: ASA-A1-6 D1-6
  • Taper of spindle bore and center: MT. NO. 6 x No. 4
  • Range of spindle speeds: 35, 52, 75, 110, 160, 230, 330, 490, 650, 950, 1350, 2000

Thread & Feed

  • Lead screw diameter and pitch: 1-1/8” 4TPI or pitch
  • Range of inch threads: 2-72(44 changes)
  • Number feeds: 36 steps
  • Range of longitudinal feeds: 0.0012”-0.034”
  • Range of cross feeds: 1/2 of longitudinal feeds

Tailstock

  • Tailstock quill diameter: Ø2-3/8”
  • Total travel of tailstock quill: 6”
  • Taper in tailstock quill: No. 4

Motors

  • Spindle drive motor: 5 HP
  • Coolant pump motor: 1/8
