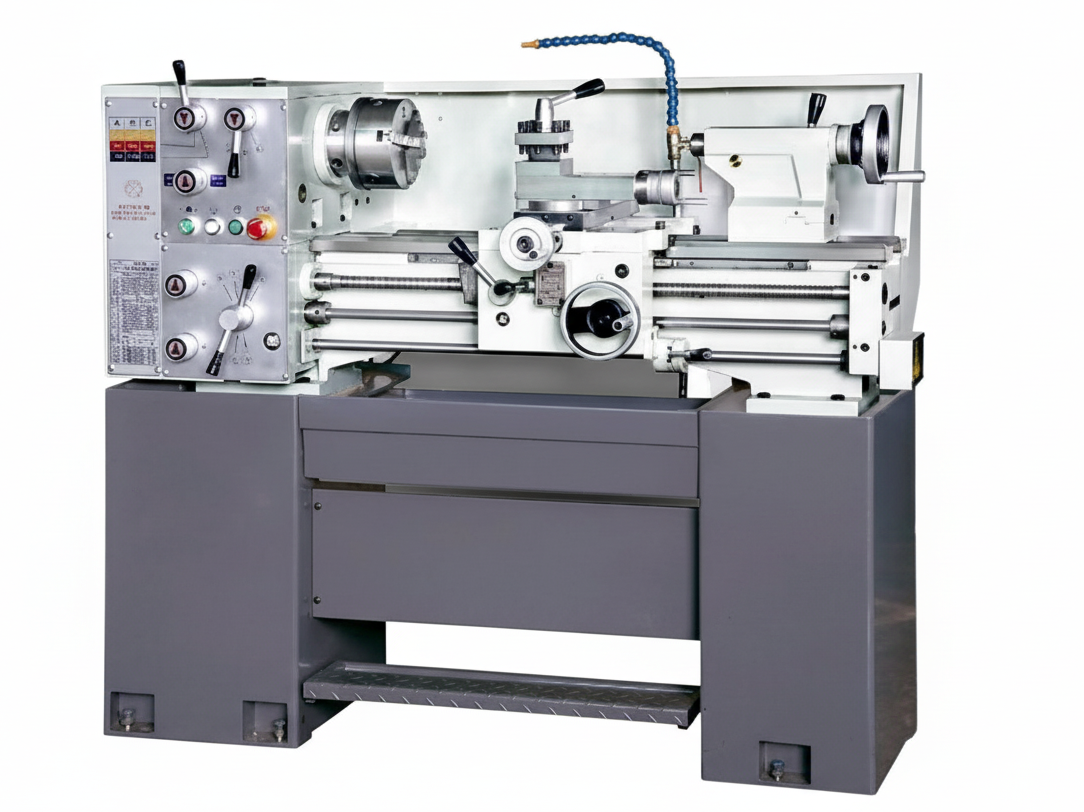

Linmac LD-1440E High Speed Precision Lathe

The Linmac LD-1440E High Speed Precision Lathe is a robust and reliable metalworking solution designed for precision turning operations. Built with high tensile cast iron and hardened bedways, this lathe delivers excellent stability, accuracy, and long-term durability for workshops and fabrication environments.

With a 14” swing and 40” between centers, this machine is ideal for general machining, maintenance work, and small-to-medium production tasks.

Key Features

• Hardened and ground bedways for long-lasting accuracy
• Rigid construction using high tensile cast iron
• Precision ground gears in headstock
• D1-4 camlock spindle for secure tooling
• Available in both metric and imperial configurations

---

Technical Specifications

Capacity

• Swing over bed: 360 mm (14”)
• Swing over cross slide: 225 mm (8-3/4”)
• Distance between centers: 1000 mm (40”)
• Swing over gap: 520 mm (20-3/4”)

Spindle & Speed

• Spindle speeds: 9 speeds
• Speed range: 82 – 2000 RPM
• Spindle bore: 40 mm (1-1/2”)
• Spindle nose: D1-4 Camlock

Travels

• Cross slide travel: 165 mm (6-1/2”)
• Compound rest travel: 100 mm (4”)
• Tailstock quill travel: 100 mm (4”)

Threading & Feeds

• Metric threads: 0.4 – 7.0 mm (30 types)
• Inch threads: 4 – 56 TPI (32 types)
• Longitudinal feeds: 0.068 – 0.936 mm/rev

---

Standard Equipment

• 2HP (1PH) or 3HP (3PH) main motor
• Rapid foot brake system
• 4-way tool post
• Faceplate (10”)
• Steady rest & follow rest
• Coolant pump system
• Complete electrical control unit
• Floor stand included
• Tool kit with box
• Rear splash guard

---

Optional Accessories

• 3-jaw chuck (6”)
• 4-jaw chuck (8”)
• Taper attachment
• Quick change toolpost
• DRO (X/Z axes)
• Work light
• Chuck guard & toolpost guard
