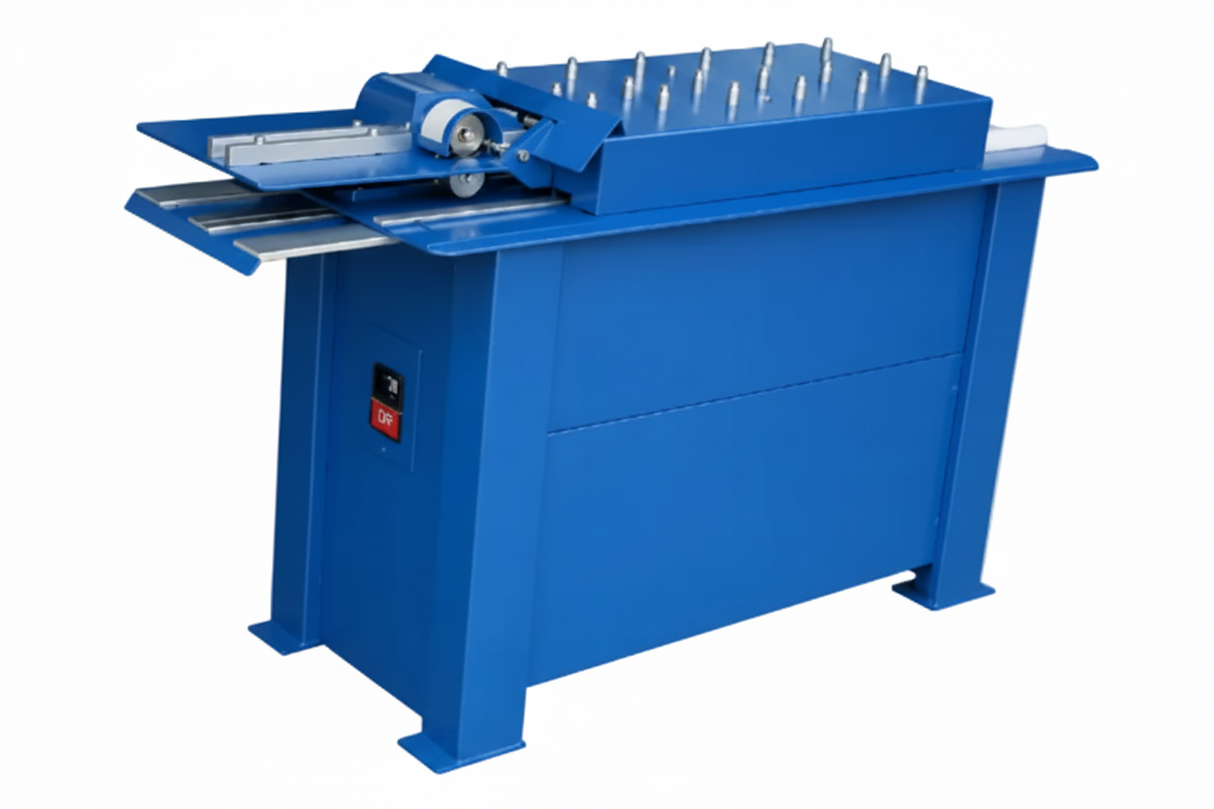

Locker Former – Slip, Drive & Button Lock
$0.00
Unit price
/
Unavailable
The Locker Former is a compact and efficient sheet metal forming machine designed for producing Slip & Drive cleats and Button Lock profiles used in HVAC duct fabrication. It provides consistent forming quality with high production speed, making it ideal for light to medium gauge sheet metal applications.
Key Specifications
| Material Thickness Range | 0.018" – 0.031" (0.45 – 0.80 mm) |
| S-Cleat Width | 1.06" (27.0 mm) |
| Drive Cleat Width | 1.13" (28.6 mm) |
| Forming Speed | 100 ft/min (30.5 m/min) |
| Motor Power | 4 kW (Approx. 5.36 HP), 230V, 3 Phase, 60 Hz |
| Machine Dimensions (L × W × H) | 74" × 30" × 50" (1880 × 762 × 1270 mm) |
Forming Capabilities
- Drive Cleats: 0.018" – 0.036" (approx. 20–26 gauge)
- S Cleats: 0.015" – 0.030" (approx. 22–28 gauge)
- Button Lock: 0.024" – 0.036" (approx. 20–24 gauge)
Features
- Multi-profile forming: Slip, Drive & Button Lock
- High-speed continuous operation
- Compact footprint for shop environments
- Simple operation with reliable output consistency
- Heavy-duty steel construction
