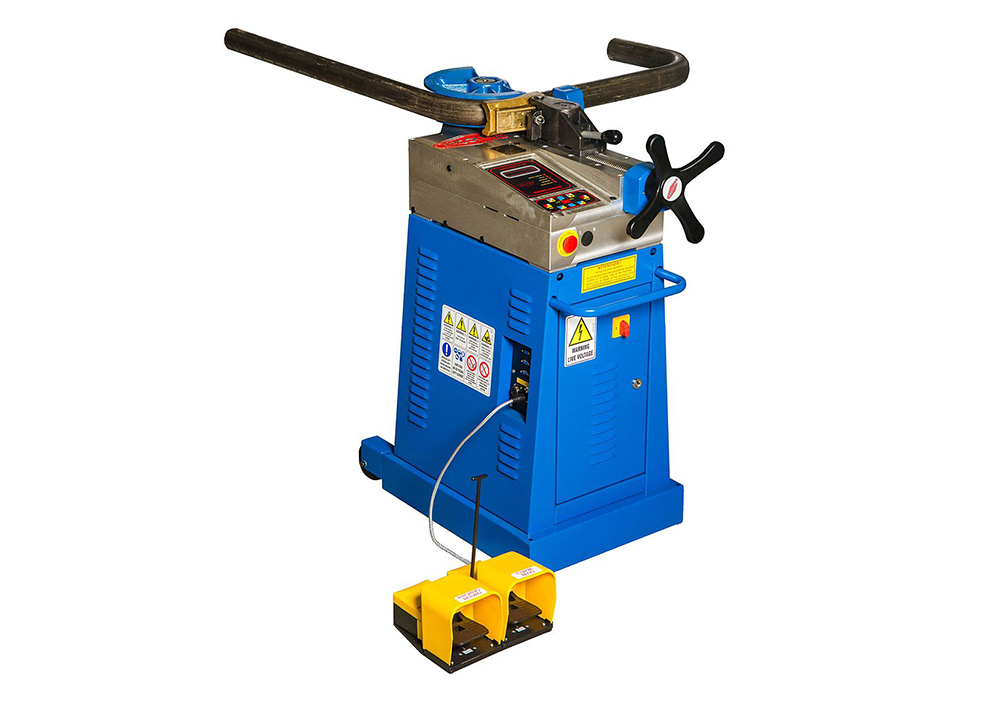

Ercolina’s 030 Mega Bender is ideal for producing consistent quality bends in pipe, tube, squares, solids and other profiles
Standard Features
- Mild steel tube capacity 3″
- Pipe capacity 2-1/2″ Sch. 10
- Square tube capacity 2″
- Maximum CLR 15″
- Bend to CLR as small as 2D
- Touch screen programming of bend angle with system diagnostics in multiple languages
- Quick-change tooling system
- Digital display of bend angle
- Material spring back compensation
- Counter bending die positioning monitored electronically for accuracy and repeatability
- Foot pedal control for hands-free operation
- Accepts Ercolina’s A40-P two axis positioning table for multiple and sequential bends
- No hydraulic components
- All capacities based on A53 grade A 48,000 psi tensile materials; heavy wall and high tensile materials reduce machine capacity.
Specifications and Capacities
- Tube - (Min.) ¼″ (Max.) 3″
- Pipe - (Max.) 2-1/2″ Sch. 10
- Centerline Radius - (Min.) 2 x Ø (Max.) 15″
- Degree of Bend - 0-210°
- Bending Speed - Variable
- Programming - NC with Touchpad, (30) programs, (9) bends per program
- Material Positioning Table Available
- Voltage - 220V or 480V 3ph
- Length, Width, Height - 27″ x 15″ x 36″
- Weight- 480 lbs
