4" Rotary Draw Bender

Manufacturer: Ercolina

Model: TB100


Quote Request

 Thank you for your quote request, we will be in touch shortly.

Ercolina’s TB100 Top Bender is ideal for producing consistent quality bends in pipe, tube, squares, solids and other profiles.

Standard Features
  • Mild steel tube capacity 4″
  • Pipe capacity 3″ Sch. 40
  • Square tube capacity 3-1/2″
  • Maximum CLR 17″
  • Bend to CLR as small as 2D
  • Touch screen programming of bend angle with system diagnostics in multiple languages
  • Quick-change tooling system
  • Digital display of bend angle
  • Material spring back compensation
  • Foot pedal control of bend and return functions
  • Counter bending die positioning monitored electronically for accuracy and repeatability
  • Heavy-duty steel gear case
  • No hydraulic components
  • All capacities based on A53 grade A 48,000 psi tensile materials; heavy wall and high tensile materials reduce machine capacity.
Specifications and Capacities
  • Tube - (Min.) ¼″ (Max.) 4″
  • Pipe - (Max.) 3″ Sch. 40
  • Centerline Radius - (Min.) 2 x Ø (Max.) 17″
  • Degree of Bend - 0-210°
  • Bending Speed - Variable 1.3 RPM
  • Programming – Touch screen, Unlimited storage with USB, (12) bends per program
  • Voltage - 480V 3ph standard (220V 3ph available)
  • Length, Width, Height - 20″ x 34″ x 47″
  • Weight- 1,030 lbs.

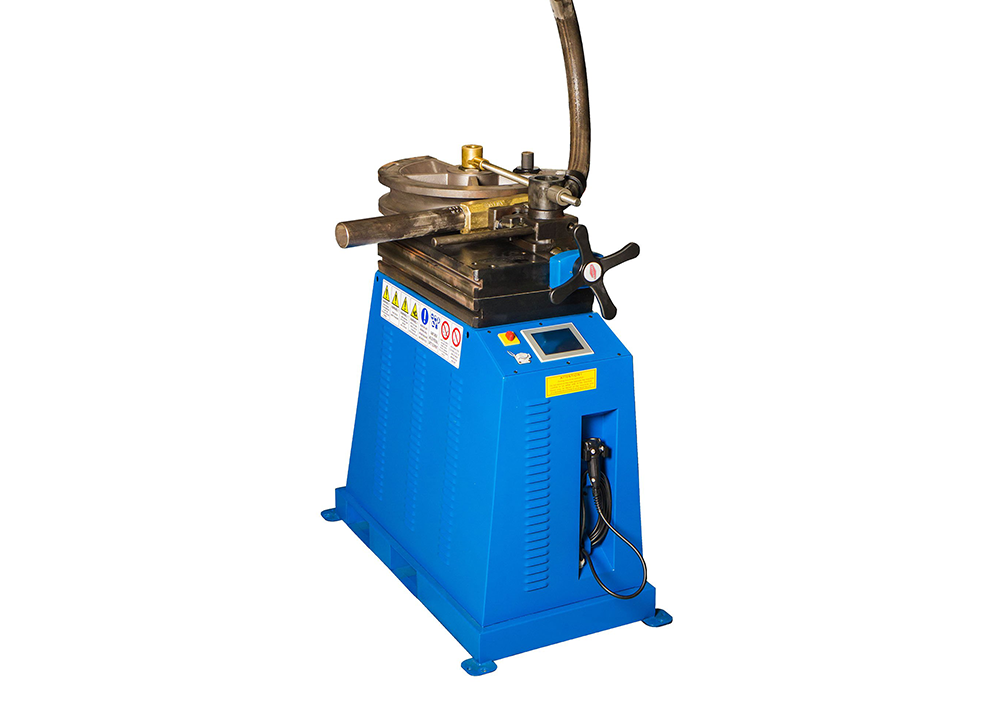

Ercolina • Rotary Draw Bender • 4 Inch • TB100 Top Bender.
