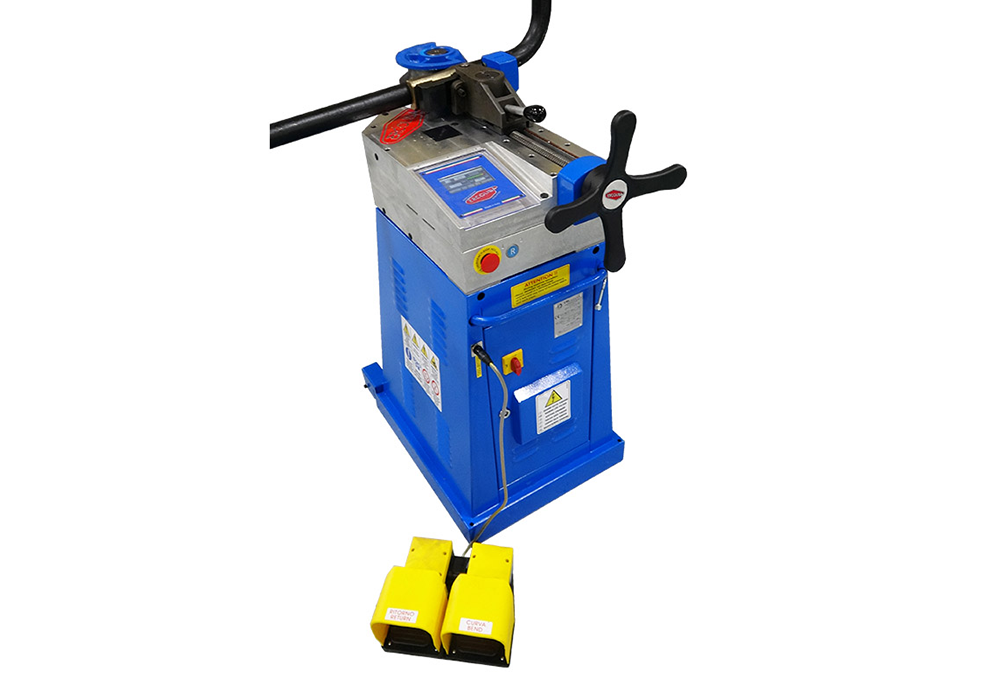

2.5" Rotary Draw Bender
$0.00
Unit price
/
Unavailable
Ercolina’s TB60 Top Bender is ideal for producing consistent quality bends in pipe, tube, squares, solids and other profiles.
Standard Features
- Mild steel tube capacity 2-1/2″
- Pipe capacity 2″ Sch. 40
- Square tube capacity 2″ .083 wall
- Maximum CLR 15″
- Bend to CLR as small as 2D
- Easy-to-read windows-based touchscreen control displays machine position, current status and alarm functions on one screen for greater convenience
- Touch screen indicates bend angle, springback and bend speed for each angle within the program
- Patented swing away counter bend die vise offers easy loading and unloading of work piece, monitored electronically for greater accuracy
- Automatically monitors and adjusts bending speed throughout bend cycle providing maximum torque and protecting machine components
- Quick-change tooling system with multiple radii available
- Right or left hand bending available with vise accessory
- Automatically stops at desired bend angle to end cycle
- Unlimited program storage for quick recall
- Use control panel or foot pedal to initiate bend and return functions
- Counterbending die position monitored electronically for accuracy and repeatability
- Accepts Ercolina’s A40-P two axis positioning table for multiple and sequential bends
- No hydraulic components
- All capacities based on A53 grade A 48,000 psi tensile materials; heavy wall and high tensile materials reduce machine capacity.
Specifications and Capacities
- Tube - (Min.) ¼″ (Max.) 2½″
- Pipe - (Max.) 2″ Sch. 40
- Centerline Radius - (Min.) 2 x Ø (Max.) 15″
- Degree of Bend - 0-210°
- Bending Speed - Variable
- Unlimited programs with unlimited bends per program
- Material Positioning Table Available
- Voltage - 120V 1ph
- Length, Width, Height - 27″ x 15″ x 36″
- Weight- 430 lbs.
