Scotchman • Single Operator Ironworker • 120 Ton • 12012-24M

Description

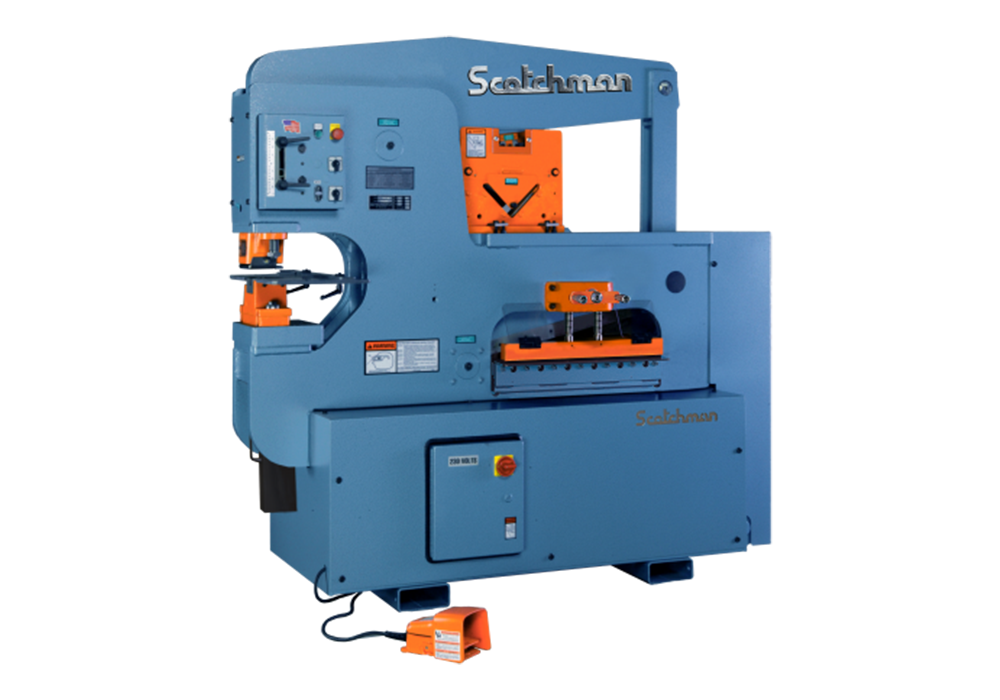

The Scotchman 12012-24M hydraulic ironworker can punch and shear 1” thick, 65,000 tensile plate and a 1-1/2” hole through 1” plate. Its 24” wide flat bar shear can shear 1” x 12” and 1/2” x 24” base plate and this machine is supplied with a 6” x 6” x 1/2” angle shear.

All Scotchman ironworkers are backed by a 3 year parts warranty.

* Please note that this video is a demonstration of the 6509-24M. This machine shares very similar features, but has less capacity than the 12012-24M.

Standard Features

Single Operator, 4 Stations
120 Ton Punch Station (1-1/2" in 1")
Keyed Punch Ram for Safety
12" Throat Depth
Punch Gauging Table with Fence and Scale
Die Holder Complete with 2" Die Insert
Punch Nut with Wrench & Stripper
One Round Punch & Die: Max. Dia. 1-1/4"
Punch Jog Control
Adjustable Electric Stroke Control with Scale
Electric Remote Foot Pedal Angle Shear Capacity 6" x 6" x 1/2" at 90°
24" Flat Bar Shear with 4-Way Reversible Blade (1" x 12", 1/2" x 24")
Shear Table with Miter Fence
Tool Table Work Area
Slug Receptacle
Two-Stage Hydraulic Pump
Electrical Box Supplied
Emergency Palm Button and Lock-out Tag-out Accommodations
230/460 volt /3 Phase Electrics (must specify voltage)
Forklift Accommodations
Warranty: Three Years on Parts
Made in USA

Specifications and Capacities

Rated on:	65,000 PSI Tensile
Punching Capacity	120 ton 1-1/2" in 1"
Special Tooling	4" Max. Dia.
Throat Depth	12"
Flat Bar Shear	24" Length 1" x 12" 3/4" x 20" 1/2" x 24"
Angle Shear 90°	6" x 6" x 1/2"
Angle Shear 45° (with Bar Shear)	3" x 3" x 3/8" 4" x 4" x 1/2"
Brake 12"	83 ton
Brake 24"	65 ton
Open End Brake	Max. 1/4" x 5" Flat or Angle Iron
Pipe Notcher Schedule 40 I.D.	3/4" 1" 1-1/4" 1-1/2" 2"
Rectangle Notcher	2" x 2-1/2" x 3/8"
90° V. Notcher	6" x 6" x 5/16"
Channel Shear	2" to 6" Adj.
Unistrut Shear	Samples Required
Rod Shear Round Rod (Max.) Square Rod (Max.)	1/4" to 1-1/4", 9 Cav. 1/4" to 1", 1 Cav.
Square Tube Shear	1/2" to 2" 12 ga.
Picket Tool	1/2" 3/4" 1" 16 ga.
Offset Die Holder	Max. 40 ton
Strokes Per Minute in Light Material	1/4" Stroke [Punch Station]
Strokes Per Minute in Heavy Material	3/4" Stroke [Punch Station]
Hydraulics	2,600 psi
Motors Standard	5 hp 3 ph 230/460 208/380/575
Motor Optional	5 hp 1 ph 230v
Dimensions	W-28" L-77" H-73"
Shipping Weight	5,204 lbs.
