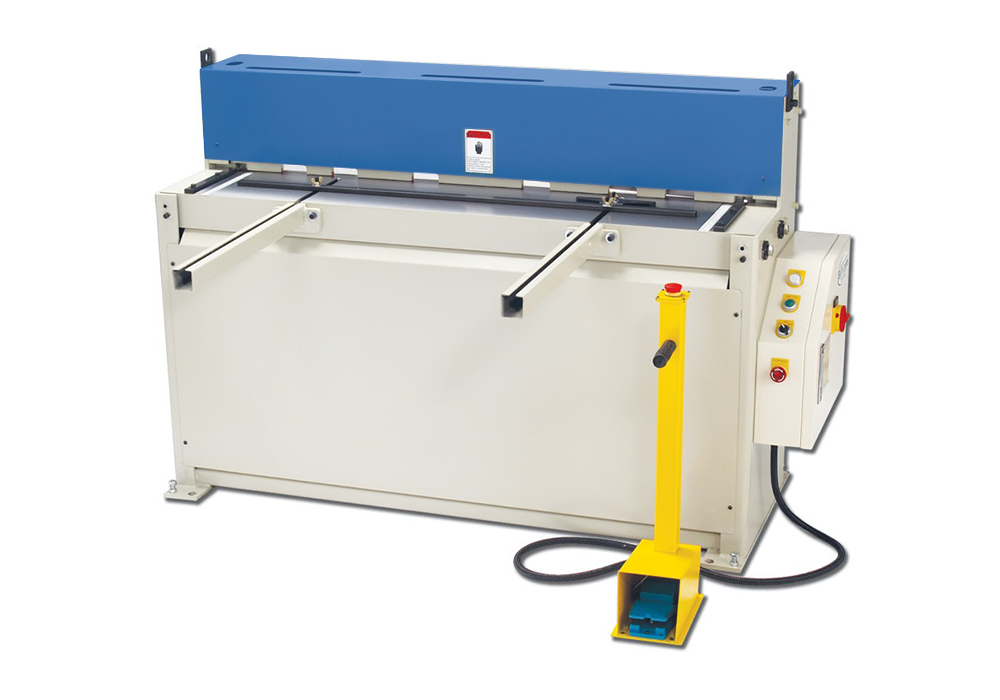

52 Inch 10 Gauge Hydraulic Squaring Shear

Manufacturer: Linmac

Model: H-5210


Quote Request

 Thank you for your quote request, we will be in touch shortly.

The Linmac H-5210 squaring shear features compact, fully-integrated, hydraulically powered units that are ideal for a range of shearing applications. This shear will handle a 52″ sheet and has a maximum rated capacity of 16 gauge for mild steel.

Standard Features
  • Up to 28 strokes per minute.
  • Adjustable 24” backgauge.
  • Front support arms and squaring table guides.
  • 3 modes on the operator console:
    1. Inch mode: Jog the control and ease the blade down to the material.
    2. Single mode: Make one cut cycle per foot pedal push.
    3. Auto mode: Continue cycling as you hold the pedal down.
  • High carbon chromium blades.
  • Blades have 4 shearing edges.
  • Hydraulic hold-downs clamp the sheet solidly to the table.
  • Fully welded steel plate construction.
Specifications and Capacities
  • 52” length.
  • 10 gauge mild steel maximum capacity
  • 24 gauge mild steel Minimum capacity
  • 5 hp motor
  • 220-volt single-phase
  • Strokes Per Minute: 28
  • Blade Angle: 1°
