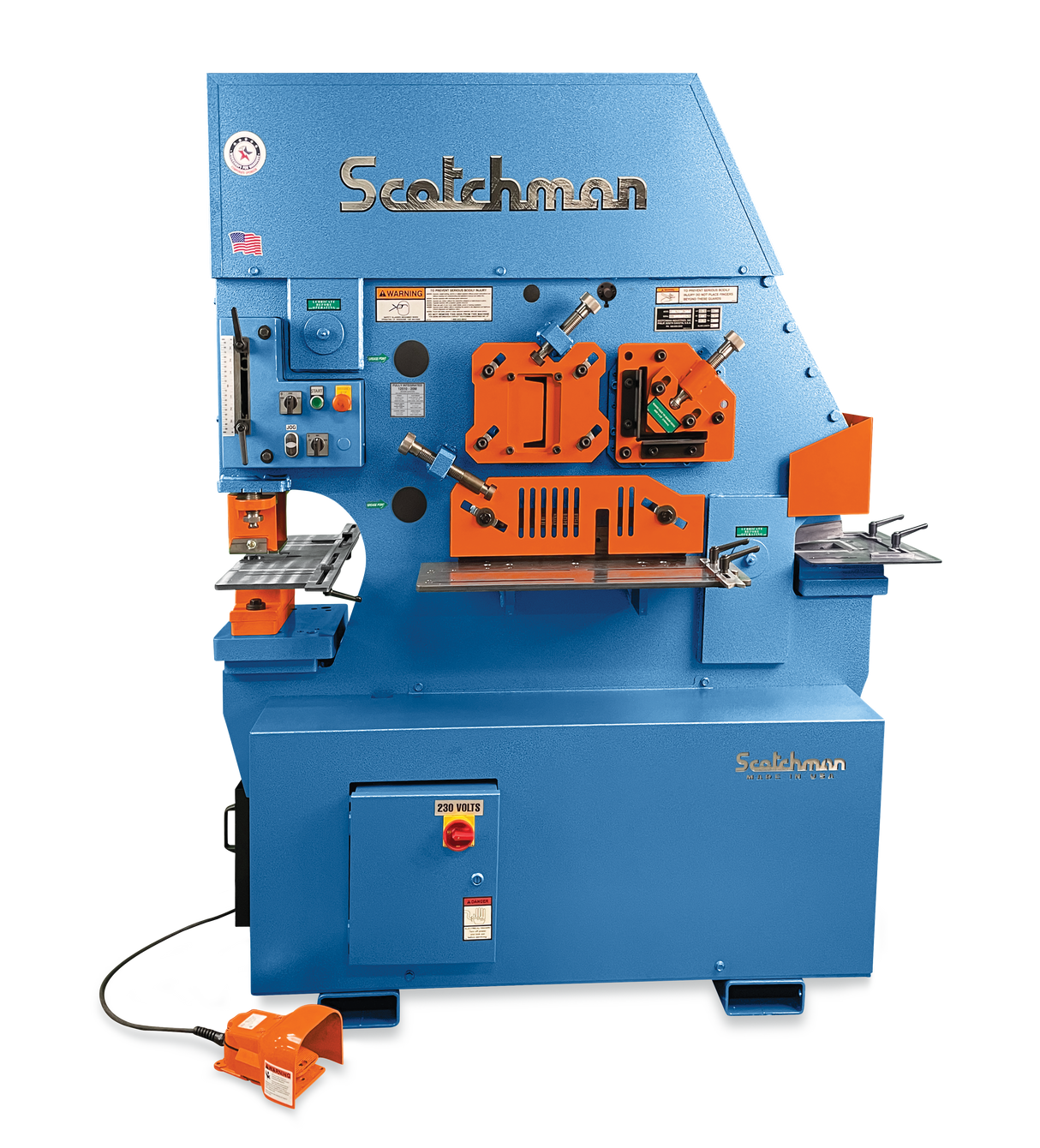

125 TON SINGLE OPERATOR IRONWORKER
$0.00
Unit price
/
Unavailable

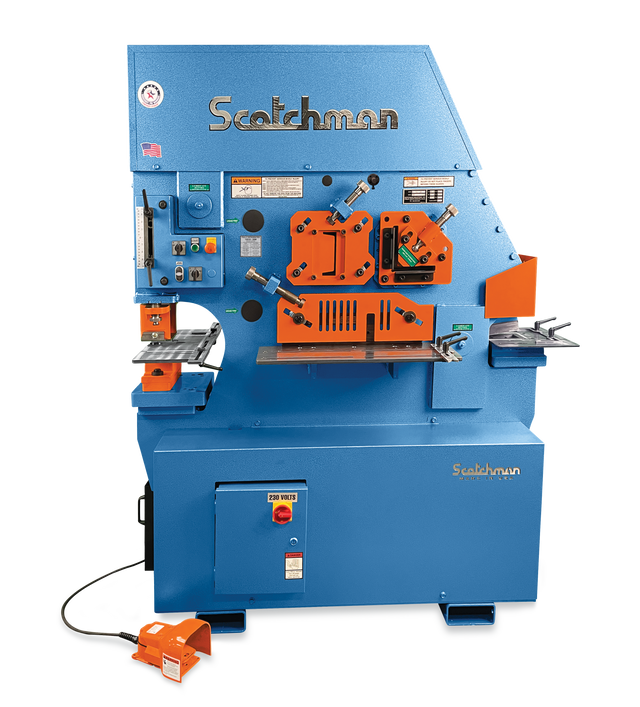

The Scotchman FI 12510-20M is a fully integrated, single-operator ironworker designed for efficiency and productivity. Equipped with five built-in tool stations, it’s ideal for repetitive tasks and high-volume projects. This 125-ton machine delivers a powerful punch capacity, capable of punching a 1-1/2” round hole through 1” mild steel with ease.
Standard Features
- 125 ton punch station
- Keyed punch ram for safety
- Punch gauging table with fence and scale
- Die holder complete with 2" die insert
- Punch nut with wrench & stripper
- Adjustable swing-away stripper
- One round punch & die: max. diameter 1-1/4"
- Punch jog control
- Adjustable electric stroke control with scale
- Electric remote foot pedal
- Slug-less angle shear
- Flat bar shear with sabre blade
- Shear table with miter fence
- 4” slug-less channel shear
- Slug receptacles
- Rectangle notcher with table, scale and guide
- LED Work Lights
- Two-stage hydraulic pump
- Electrical box supplied with emergency palm button and lock-out tag-out accommodations
- Complies with ANSI B 11.5 safety standards
- Forklift accommodations
- Three-year warranty on parts
- Made in USA
Specifications and Capacities
| Rated On | A36 Mild Steel / 65,000 PSI Tensile |
| Punching Capacity | 125 ton (113 mt) 1-1/2" Round in 1" (38 mm in 25 mm) |
| Special Tooling | 4" Round (102 mm) Max. Dia. |
| Throat Depth | 10" (254 mm) |
| Flat Bar Shear (sabre blade-std.) |
20" Length (508 mm) 1" x 18" (25 x 457 mm) 3/4" x 20" (19 x 508 mm) |
| Angle Shear 90° | 6" x 6" x 1/2" (152 x 152 x 12 mm) |
| Angle Shear 45° (with Bar Shear) |
4" x 4" x 1/2" (102 x 102 x 12 mm) |
| Brake 12" | 125 ton (113 mt) |
| Brake 24" | 125 ton (113 mt) |
| Open End Brake | Max. 1/4" x 5" (6 x 127 mm) [Flat or Angle Iron] |
| Pipe Notcher Schedule 40 |
3/4", 1", 1-1/4", 1-1/2", 2" |
| Rectangle Notcher | 3" x 5" x 1/2" (76 x 127 x 12 mm) |
| 90° V-Notcher (Punch Station) |
6" x 6" x 5/16" (152 x 152 x 8 mm) |
| Channel Shear | 4" standard (Optional 2”, 3”, 5” and 6”) |
| Unistrut Shear | Samples Required |
| Rod Shear Round (max.) |
4 cavity, 1/2”, 3/4”, 1”, 1-1/2” (12, 19, 25, 38 mm) |
| Rod Shear Square (max.) |
1 cavity, 1-1/2” (38 mm) |
| Square Tube Shear | 1/2" to 2" (12 mm to 51 mm) 12 gauge (0.105" / 2.7 mm) |
| Picket Tool | 1/2", 3/4" & 1" (12 mm, 19 mm, 25 mm) 16 gauge (0.06" / 1.5 mm) |
| Weld Coupon Bender (max.) |
2" wide x 3/8" (51 mm x 10 mm) |
| Offset Die Holder | Max. 40 ton (36 mt) |
| Strokes per minute in light material |
34 spm (1/4" stroke) [Punch Station] |
| Strokes per minute in heavy material |
17 spm (3/4" stroke) [Punch Station] |
| Hydraulics | 3,000 psi (207 Bar) |
| Motor Options (must specify) |
5 hp 3 ph (3.76 kW) 208/230/460, 380/575v 5 hp 1 ph (3.76 kW) 220v |
| Dimensions | L-67-3/4" (172 cm) W-32" (81.5 cm) H-78-3/4" (200 cm) |
| Shipping Weight | 4,750 lbs. (2,154 kg) |
