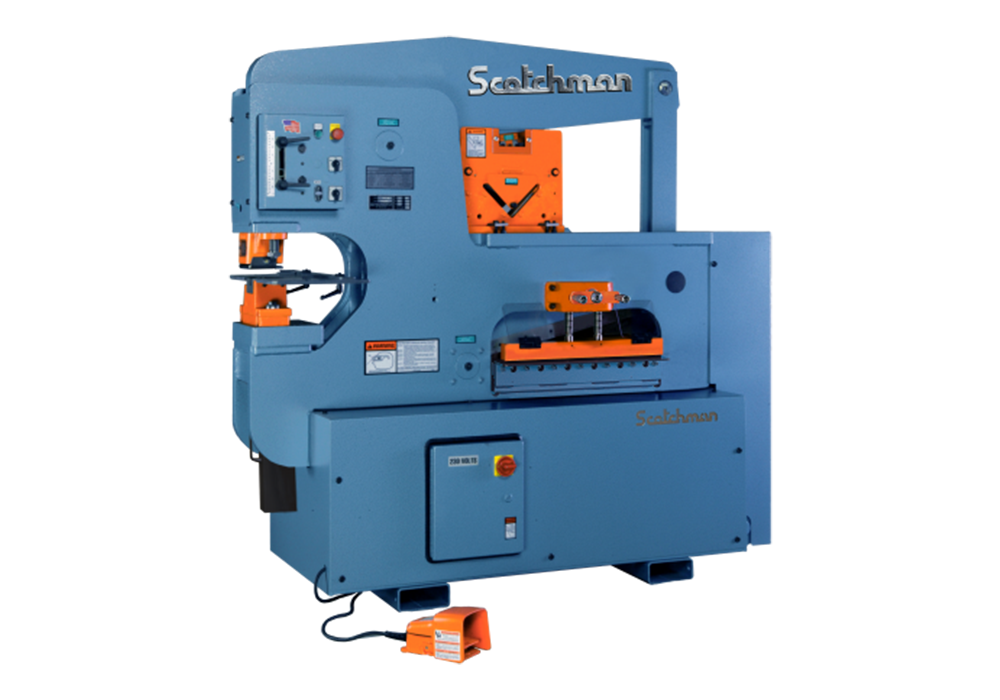

120 Ton Single Operator Ironworker
The Scotchman 12012-24M hydraulic ironworker can punch and shear 1” thick, 65,000 tensile plate and a 1-1/2” hole through 1” plate. Its 24” wide flat bar shear can shear 1” x 12” and 1/2” x 24” base plate and this machine is supplied with a 6” x 6” x 1/2” angle shear.
All Scotchman ironworkers are backed by a 3 year parts warranty.
Standard Features
- Single Operator, 4 Stations
- 120 Ton Punch Station (1-1/2" in 1")
- Keyed Punch Ram for Safety
- 12" Throat Depth
- Punch Gauging Table with Fence and Scale
- Die Holder Complete with 2" Die Insert
- Punch Nut with Wrench & Stripper
- One Round Punch & Die: Max. Dia. 1-1/4"
- Punch Jog Control
- Adjustable Electric Stroke Control with Scale
- Electric Remote Foot Pedal Angle Shear Capacity 6" x 6" x 1/2" at 90°
- 24" Flat Bar Shear with 4-Way Reversible Blade (1" x 12", 1/2" x 24")
- Shear Table with Miter Fence
- Tool Table Work Area
- Slug Receptacle
- Two-Stage Hydraulic Pump
- Electrical Box Supplied
- Emergency Palm Button and Lock-out Tag-out Accommodations
- 230/460 volt /3 Phase Electrics (must specify voltage)
- Forklift Accommodations
- Warranty: Three Years on Parts
- Made in USA
Specifications and Capacities
|
Rated on: |
65,000 PSI Tensile |
|
Punching Capacity |
120 ton 1-1/2" in 1" |
|
Special Tooling |
4" Max. Dia. |
|
Throat Depth |
12" |
|
Flat Bar Shear |
24" Length 1" x 12" 3/4" x 20" 1/2" x 24" |
|
Angle Shear 90° |
6" x 6" x 1/2" |
|
Angle Shear 45° (with Bar Shear) |
3" x 3" x 3/8" 4" x 4" x 1/2" |
|
Brake 12" |
83 ton |
|
Brake 24" |
65 ton |
|
Open End Brake |
Max. 1/4" x 5" Flat or Angle Iron |
|
Pipe Notcher Schedule 40 I.D. |
3/4" 1" 1-1/4" 1-1/2" 2" |
|
Rectangle Notcher |
2" x 2-1/2" x 3/8" |
|
90° V. Notcher |
6" x 6" x 5/16" |
|
Channel Shear |
2" to 6" Adj. |
|
Unistrut Shear |
Samples Required |
|
Rod Shear Round Rod (Max.) Square Rod (Max.) |
1/4" to 1-1/4", 9 Cav. 1/4" to 1", 1 Cav. |
|
Square Tube Shear |
1/2" to 2" 12 ga. |
|
Picket Tool |
1/2" 3/4" 1" 16 ga. |
|
Offset Die Holder |
Max. 40 ton |
|
Strokes Per Minute in Light Material |
1/4" Stroke [Punch Station] |
|
Strokes Per Minute in Heavy Material |
3/4" Stroke [Punch Station] |
|
Hydraulics |
2,600 psi |
|
Motors Standard |
5 hp 3 ph 230/460 208/380/575 |
|
Motor Optional |
5 hp 1 ph 230v |
|
Dimensions |
W-28" L-77" H-73" |
|
Shipping Weight |
5,204 lbs. |
