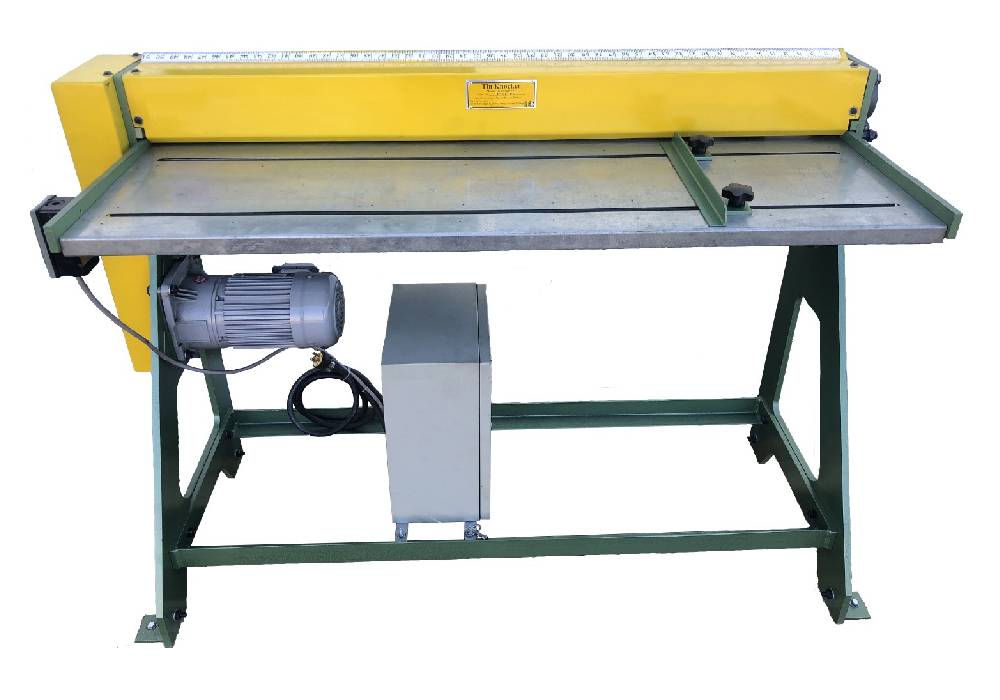

The TK gang slitter is A 48” slitter that can cut up to 16 gauge mild steel. It offers many features including a built in entry guide, intergraded scale, and stripper rings. The stripper rings come standard, and are beneficial for light gauged painted material to prevent marking the material. The TK Gang Slitter is equipped with a 3/4 HP motor to supply the torque required to cut a wide range of material at speeds up to 60 feet per minute.
Standard Features
- Life lubed bearings
- 3” cold rolled polish shafts
- 3 sets of reversible knives
- Heavy duty chain drive
- Stripper fingers to prevent twist
- Operating Speed: 60 FPM
- ¾ HP, 220V, 1 Phase Motor
- Tool steel blades with stripper rings
- (Non-scratch: pre-painted, copper, polished metals, etc.)
Specifications and Capacities
- Overall width: 48’’
- Width between end frames: 52 ¼”
- Max Cutting Width: 48 ½”
- Table Height: 35”
- Feed Speed: 60 FPM
- Weight: 525 lbs.
- Overall depth: 26”
- Shaft Diameter: 3”
- Knife Dimensions: 5” OD x ¼”
- Motor HP: ¾ HP
- Electrics: 110/220 V – 1ph
