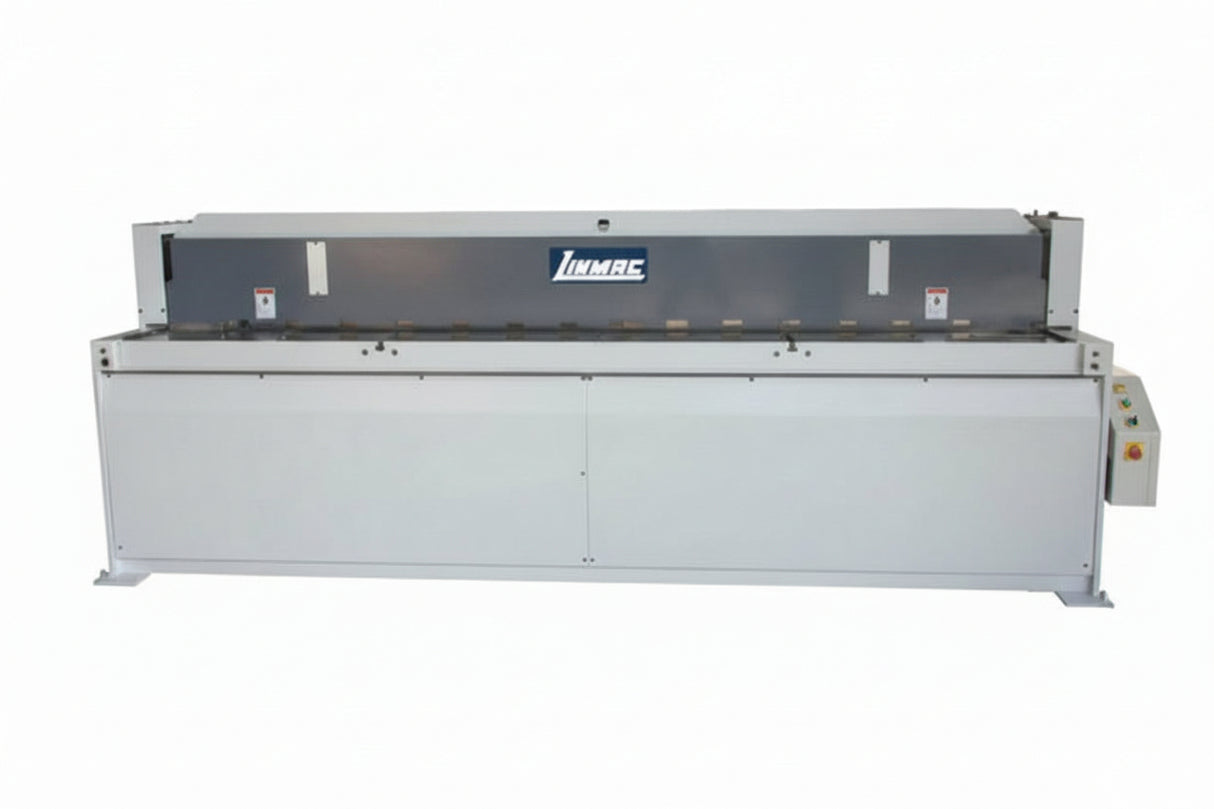

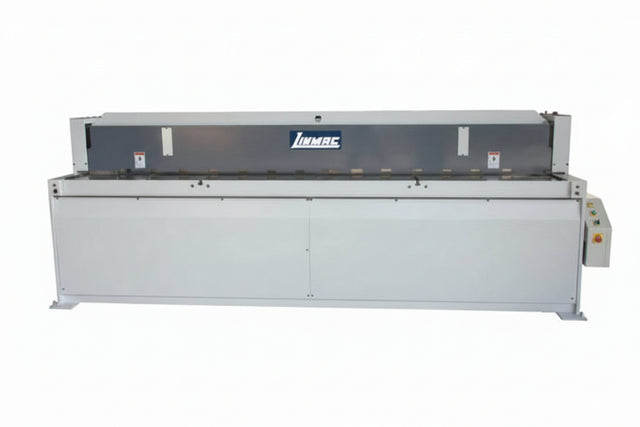

The H-12014 Hydraulic Shear is a heavy-duty sheet-metal cutting machine designed for precise and efficient shearing of large metal sheets. With a 10-ft (120 in / ~3048 mm) cutting capacity
The machine utilizes a hydraulic drive system to deliver smooth, powerful cutting action while maintaining high accuracy. A rigid welded steel frame minimizes vibration and ensures long-term durability. The integrated front and back gauge systems allow operators to perform repeatable cuts quickly, increasing productivity in production environments.
High-strength alloy shear blades provide clean cuts with minimal burrs, and adjustable hold-downs secure the sheet during cutting to maintain precision. The machine is typically equipped with safety guards, foot pedal operation, and adjustable squaring arms for accurate alignment.
H-12014 Hydraulic Shear Specifications
| Specification | Details |
|---|---|
| Model | H-12014 |
| Cutting Length | 120 in – 122 in (≈ 3048 mm / 10 ft) |
| Mild Steel Capacity | 14 gauge |
| Stainless Steel Capacity | 18 gauge |
| Minimum Sheet Thickness | 24 gauge |
| Stroke Rate | ~20 strokes/min |
| Blade Angle | approx. 1.5° – 2° |
| Motor Power | 5 HP |
| Power Requirement | 220V, 3-phase |
| Front Gauge | 24 in |
| Back Gauge | 24 in |
| Shipping Weight | approx. 5200 – 6200 lb |
| Machine Dimensions | approx. 150" × 40" × 56" |
Standard Features:
- Heavy-duty fully welded steel frame
- Hydraulic drive system for smooth shearing
- High-carbon high-chromium blades
- 24″ front gauge and 24″ back gauge
- Adjustable hold-down clamps
- Foot pedal control with safety guard
- Front support arms with squaring bar
- Single and continuous cutting modes
- Replaceable 2-edge upper blade / 4-edge bottom blade
- Optional long squaring arms (40″–118″)
