2" Tube & Angle Roller
$0.00
Unit price
/
Unavailable

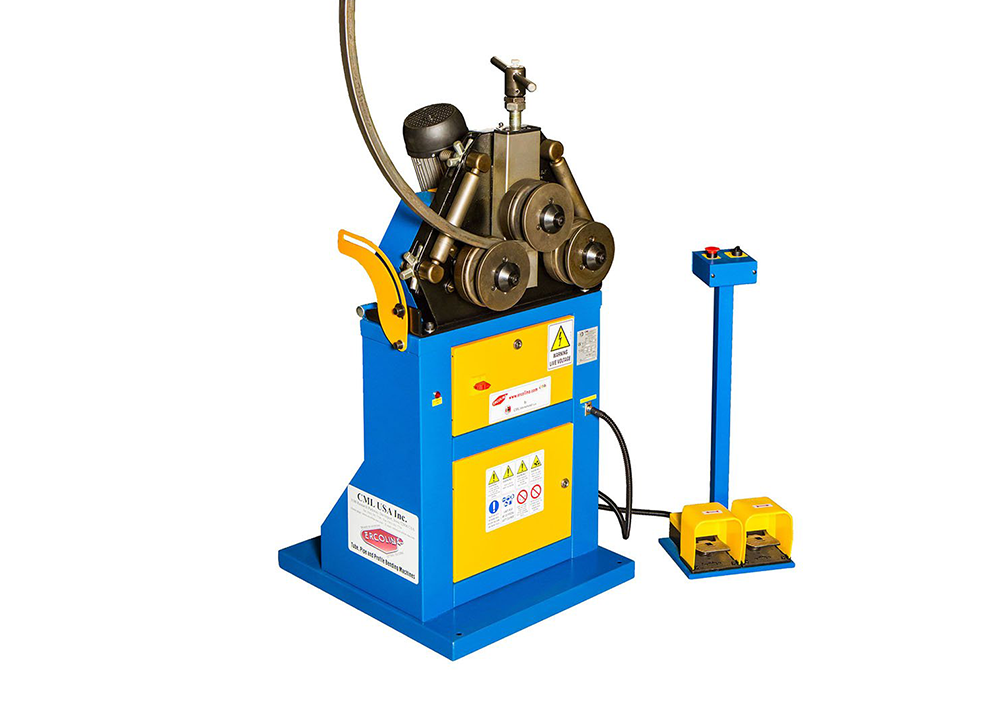

Ercolina’s CE35 angle roll offers the convenience of operating in the vertical or horizontal position.
Standard Features
- 40mm roll shaft diameter
- Maximum pipe capacity 1-1/2″ Sch. 40
- Maximum angle capacity to 1-1/2″ x 1-1/2″ x 1/4″
- Universal tooling set included with each machine – 6-5/8″ OD
- Forged roll shafts precision ground and fitted for maximum performance and minimal deflection
- Heavy duty structure and rigid components for high section modulus ratings
- Reinforced engineered mainframe design proven to outperform competitive models
- Inline direct drive roll shaft system
- Optional Anti-twist correction system for angle iron “Leg In” applications
- All capacities based on mild grade materials; heavy wall and high tensile materials reduce machine capacity.
Specifications and Capacities
- Pipe (Max.) 1½″ Sch. 40
- Angle (Max.) 1½″ x 1½″ x ¼″
- Tube (Max.) 2″ – .156 wall
- Roll Shaft Diameter 40mm
- Center Roll Positioning Manual
- Shaft Speed 6 or 12 RPM
- Universal Tooling (Included) 6⅝″ O.D.
- Distance between Shafts 11⅜″
- Operating Voltage 220V 1ph
- Length, Width, Height 27½″ x 25½″ x 59
