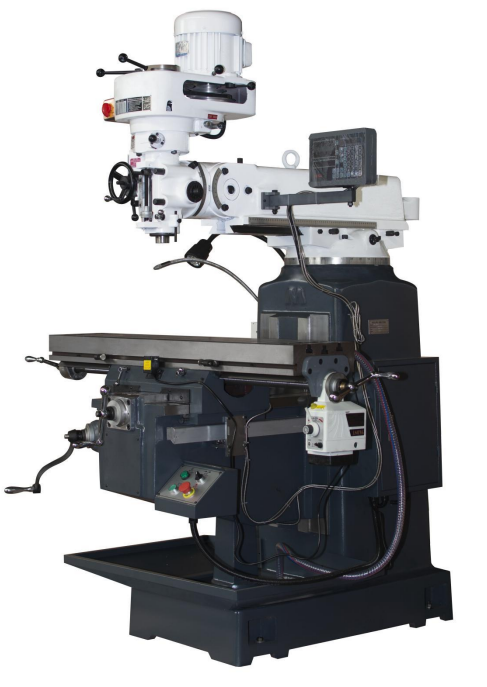

BM6325 Turret Milling Machine
$0.00
Unit price
/
Unavailable
The BM6325 Turret Milling Machine is a versatile, heavy-duty manual mill designed for precision machining, fabrication, and toolroom applications. Featuring a 10” x 50” table and R8 spindle, this machine is ideal for a wide range of milling operations including drilling, boring, and slotting.
Built for durability and flexibility, the BM6325 offers high spindle speeds, adjustable head angles, and optional upgrades for enhanced productivity.
Key Features
- Heavy-duty turret milling design for industrial use
- High-speed spindle with multiple speed ranges
- Adjustable head (90° swivel, 45° tilt) for versatile machining
- Smooth table travel with precision control
- Optional variable speed spindle for better control
- R8 spindle (ISO30 / ISO40 optional)
- Compact footprint with high rigidity
Technical Specifications
| Specification | Value |
|---|---|
| Table Size | 10” x 50” |
| Longitudinal Travel (X) | 34.25” |
| Cross Travel (Y) | 17.32” |
| Vertical Travel (Z) | 15.75” |
| Ram Travel | 18.50” |
| Spindle Travel | 5” |
| Distance Spindle to Table | 0 – 17.72” |
| Spindle Taper | R8 (ISO30 / ISO40 optional) |
| Spindle Speed | 66 – 4540 RPM (16 steps) |
| Motor Power | 2.25 kW (3 HP) |
| Head Movement | 90° swivel / 45° tilt |
| Machine Weight | 2645–2866 lbs |
| Packing Size | 1516 x 1550 x 2080 mm |
Standard Accessories
- Draw bar
- Reduction sleeve
- Coolant system
- Collet chuck kit
- Chip tray
- Splash guard
- Lubrication pump
- Working lamp
- Tool kit with tools
- Spindle & worktable protection
- 3-axis DRO (included)
Optional Accessories
- X-axis power feed motor
- Y-axis power feed motor
- Z-axis motorized lifting
- Variable speed spindle upgrades (3HP / 5HP)
- Machine vice 6.2"
- Clamping kit (58 pcs)
- Air drawbar
- Rotary table (HV10)
- Slotting head
- Universal dividing head
