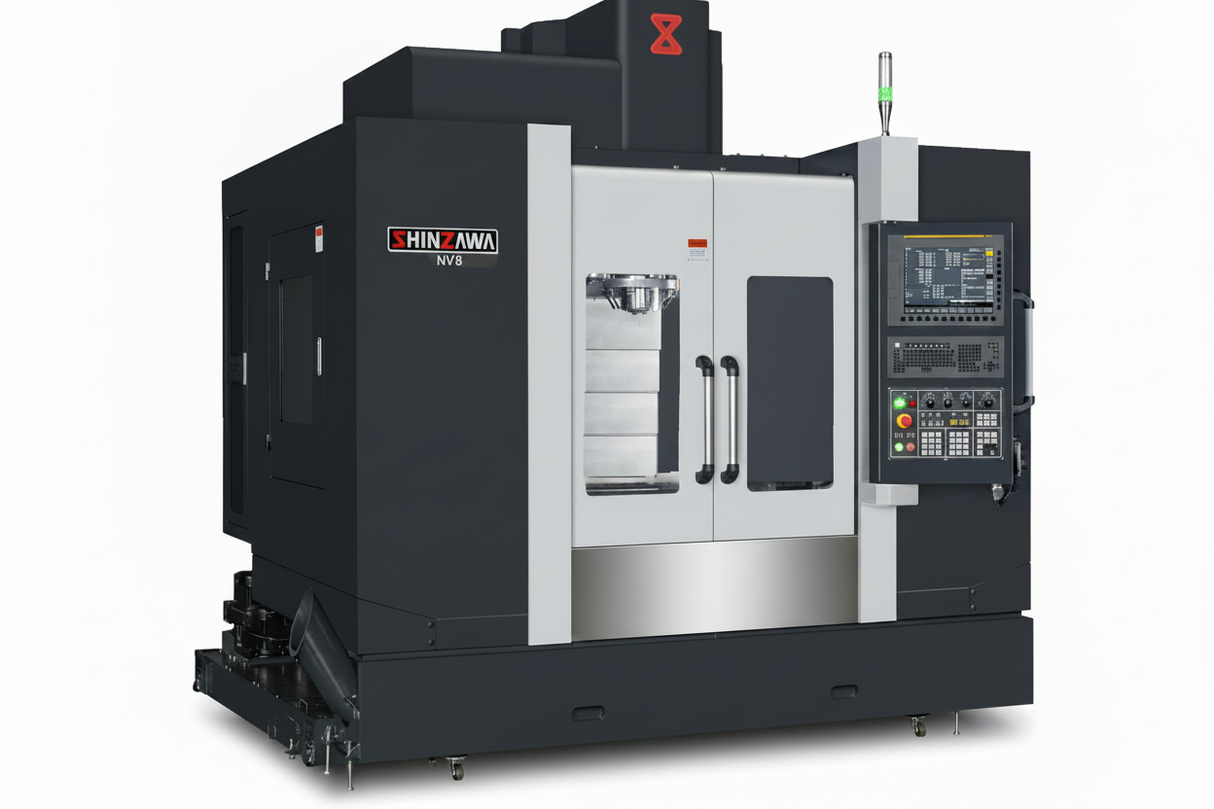

NV-8 High-performance CNC vertical machining center
$0.00
Unit price
/
Unavailable
The NV-8 is a high-performance CNC vertical machining center designed for precision milling, drilling, and tapping applications. Equipped with a 12,000 RPM direct-drive spindle, Mitsubishi M80A controller, BT40 spindle taper, and 24-tool arm-type ATC, the machine delivers excellent machining accuracy, fast rapid traverse rates, and stable cutting performance for mold, automotive, aerospace, and general manufacturing industries.
NV-8 Main Specifications
| Item | Specification |
|---|---|
| Model | NV-8 |
| Machine Type | CNC Vertical Machining Center |
| Controller | Mitsubishi M80A (10.4" LED) |
| X/Y/Z Travel | 850 × 530 × 600 mm |
| Table Size | 950 × 530 mm |
| Max Table Load | 800 kg |
| Spindle Speed | 12,000 RPM |
| Spindle Motor | 11 / 15 kW |
| Spindle Taper | BT40 |
| Tool Magazine | 24 Tools (Arm Type) |
| Rapid Traverse | 36 / 36 / 30 m/min |
| Spindle Nose to Table | 100 ~ 700 mm |
| Machine Weight | 5,200 kg |
| Machine Dimensions | 2580 × 2200 × 2850 mm |
| Voltage | 220V / 3PH / 60HZ |
Standard Accessories
- Rigid tapping
- Spindle air blast
- Fully enclosed splash guard
- Electrical cabinet heat exchanger
- Automatic lubrication system
- Spindle oil cooler
- Coolant system & coolant tank
- Coolant flushing device
- Work lamps
- Foundation bolts & blocks
- Tool box with tools
- Water gun & air gun
- Linear roller guideways
- Screw type chip conveyor with chip cart
