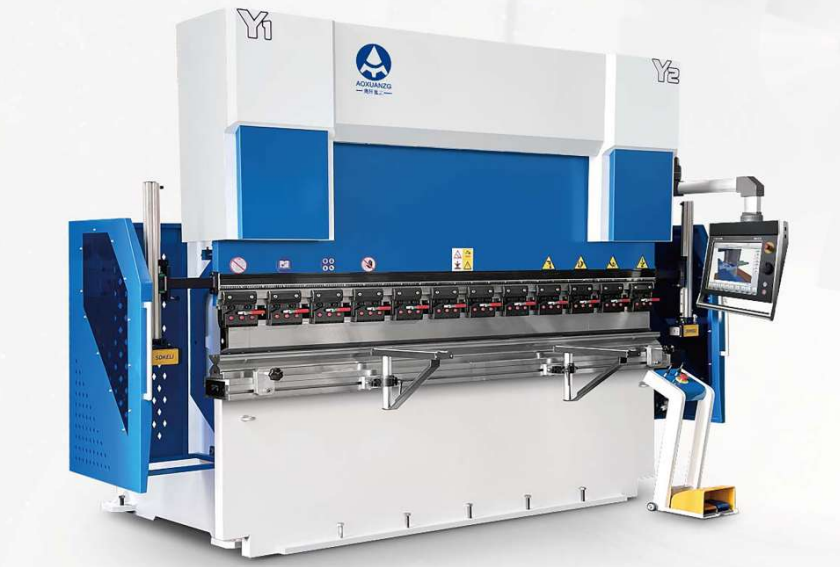

WE67K CNC Electro Hydraulic Servo Press Brake
Electro-hydraulic CNC press brake with a servo-driven backgauge, position feedback and worktable deflection compensation.
Features
- High-strength thick-plate frame
- Precision backgauge
- Standard 4+1 axes: Y1, Y2, X, R plus W/crowning
- Closed-loop automatic mechanical deflection compensation for worktable
- Servo backgauge driven through synchronous belt/pulley and ball screw on linear guides
Standard configuration
Bosch Rexroth hydraulic valve group; EMB hydraulic pipe joints; Siemens main motor; Schneider electrical components; Hydraulic and electrical overload protection; HIWIN ball screw and linear guide; catalogue states accuracy ±0.02 mm for this component/configuration, not a complete-machine bend accuracy guarantee; GIVI grating ruler/linear scale; Electric compensation; Delta inverter controls backgauge.
Illustrated components
Electrical cabinet; Grating ruler; Automatic lubricator; Fine-tuning fingers.
Axis configurations
- 3+1: Y1,Y2,X plus crowning
- 4+1: Y1,Y2,X,R plus crowning
- 6+1: Y1,Y2,Z1,Z2,X,R plus crowning
- 8+1: Y1,Y2,Z1,Z2,X1,X2,R1,R2 plus crowning
Options
CNC follower supports; Laser angle measurement; Custom upper/lower tools and optional WILA clamping/tooling; match to order.
Controller options
The catalogue presents the following controller choices. The selected controller, enabled functions and installed axes must match the ordered machine configuration.
Delem DA53T
10.1-inch high-resolution colour TFT; Hot-key touch navigation; Up to 4 axes (Y1,Y2 plus 2 auxiliary axes); Crowning control; Tool/material/product library; Servo and inverter control; Y-axis algorithms for open- and closed-loop valves; Optional TandemLink; USB memory stick interface; Profile-T offline software.
Delem DA58T
15-inch high-resolution colour TFT; 2D touch graphical programming; Bending-process calculation; Deflection-compensation control; Servo and drive control modes; Y-axis control for open- and closed-loop valves; USB interface.
Delem DA66T
17-inch high-resolution colour TFT; 2D touch graphical programming; 3D product simulation display; Windows application package; Delem modular architecture compatibility; USB/peripheral interface; User applications in multitasking environment; Angle-detection sensor interface.
Delem DA69T
17-inch high-resolution colour TFT; 2D and 3D graphical touchscreen programming; 3D visualisation for simulation and production; Windows application suite; Delem Modusys module scalability/adaptability; USB/peripheral interface; Open-system architecture; Bending sensor/correction interface.
Cybelec CybTouch 8 PS
8-inch colour LCD touchscreen; Icon interface and EasyBend page; Multi-bend production programming; Automatic calculation of angle, pressure, deflection compensation and upper-die depth; Angle and backgauge corrections.
Cybelec CybTouch 12 PS
12-inch colour LCD touchscreen; Icon interface and EasyBend; Multi-bend programming; Automatic bending calculations, pressure, compensation and upper-die depth; Angle/backgauge correction; 2D graphical programming; Optional automatic bend-sequence simulation/optimisation.
Cybelec CybTouch 15 PS
15-inch glass touchscreen usable with gloves; Touch/finger drawing and 2D programming; Automatic bend-step calculation; EasyBend single-part page; Larger storage capacity; Internal backup/storage; Wireless diagnostics and updates via laptop.
ESA VIS-640
15-inch high-definition colour TFT; Built-in PLC; 2D graphical programming; Developed-length calculation; Graphical upper/lower tools including gooseneck, arc and other profiles; Automatic and manual graphical-program optimisation; Bending simulation; Graphical or numerical arc bending; PS2 keyboard/mouse interface; Dual-linkage function without separate synchronisation card.
