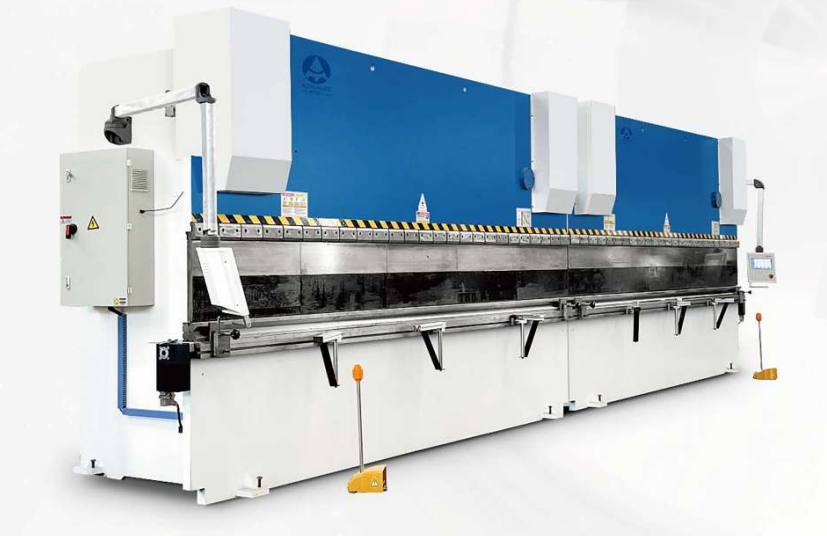

WE67K CNC Tandem Press Brake
Linked dual-machine press brake system for long workpieces, with synchronised tandem operation and independent-machine operation.
Features
- Two machines of the same specification with dual-machine synchronisation
- Long workpiece bending including pole-type profiles
- Custom tooling available for application
- Machines may operate independently at the same time
- Deflection compensation
- Servo-controlled backgauge
Configuration
Two machines of the same specification operate in synchronised tandem mode for long workpieces. The catalogue also states that the machines can operate independently at the same time. The supplied controls, tooling and compensation arrangement must be defined for the selected pair.
CNC reference forming specifications
The 35 rows below reproduce the technical table facing the tandem description. Their applicability to servo, hybrid or tandem configurations and their per-machine or combined basis require manufacturer confirmation.
|
Model |
Nominal |
Worktable length |
Between columns |
Throat depth |
Ram stroke |
Open height |
|
50T/1300 |
500 |
1300 |
1120 |
250 |
150 |
460 |
|
70T/1600 |
700 |
1600 |
1300 |
300 |
150 |
460 |
|
70T/2500 |
700 |
2500 |
2050 |
300 |
150 |
460 |
|
80T/2500 |
800 |
2500 |
2050 |
300 |
150 |
460 |
|
110/2500 |
1100 |
2500 |
2050 |
400 |
200 |
490/470 |
|
110T/3200 |
1100 |
3200 |
2700 |
400 |
200 |
490/470 |
|
110T/4000 |
1100 |
4000 |
3100/3600 |
400 |
200 |
490/470 |
|
135T/3200 |
1350 |
3200 |
2700 |
400 |
200 |
490/470 |
|
135T/4000 |
1350 |
4000 |
3100/3600 |
400 |
200 |
490/470 |
|
170T/3200 |
1600* |
3200 |
2700 |
450 |
200 |
490/470 |
|
170T/4000 |
1600* |
4000 |
3100/3600 |
450 |
200 |
490/470 |
|
220T/3200 |
2200 |
3200 |
2600 |
450 |
200 |
490/470 |
|
220T/4000 |
2200 |
4000 |
3100 |
450 |
200 |
490/470 |
|
250T/3200 |
2500 |
3200 |
2600 |
450 |
250 |
540 |
|
250T/4000 |
2500 |
4000 |
3100 |
450 |
250 |
540 |
|
250T/5000 |
2500 |
5000 |
3800 |
450 |
250 |
540 |
|
250T/6000 |
2500 |
6000 |
4800 |
450 |
250 |
540 |
|
300T/3200 |
3000 |
3200 |
2600 |
500 |
250 |
570 |
|
300T/4000 |
3000 |
4000 |
3100 |
500 |
250 |
570 |
|
300T/5000 |
3000 |
5000 |
3800 |
500 |
250 |
570 |
|
300T/6000 |
3000 |
6000 |
4800 |
500 |
250 |
570 |
|
400T/3200 |
4000 |
3200 |
2600 |
500 |
300 |
610 |
|
400T/4000 |
4000 |
4000 |
3100 |
500 |
300 |
610 |
|
400T/5000 |
4000 |
5000 |
3800 |
500 |
300 |
610 |
|
400T/6000 |
4000 |
6000 |
4800 |
500 |
300 |
610 |
|
500T/4000 |
5000 |
4000 |
3100 |
500 |
300 |
620 |
|
500T/5000 |
5000 |
5000 |
3800 |
500 |
300 |
620 |
|
500T/6000 |
5000 |
6000 |
4800 |
500 |
300 |
620 |
|
600T/5000 |
6000 |
5000 |
3800 |
600 |
320 |
650 |
|
600T/6000 |
6000 |
6000 |
4800 |
600 |
320 |
650 |
|
600T/7000 |
6000 |
7000 |
5600 |
600 |
320 |
650 |
|
800T/6000 |
8000 |
6000 |
4600 |
600 |
320 |
800 |
|
800T/7000 |
8000 |
7000 |
5600 |
600 |
320 |
800 |
|
800T/8000 |
8000 |
8000 |
6600 |
600 |
320 |
800 |
|
800T/10000 |
8000 |
10000 |
7800 |
600 |
320 |
800 |
CNC reference power and dimensions
The same 35 unassigned CNC reference rows. Dimensions are length x width x height. The source provides no machine weights for this table.
|
Model |
Main motor |
Overall dimensions |
|
50T/1300 |
5.5 |
1800 x 1500 x 2300 |
|
70T/1600 |
5.5 |
2300 x 1600 x 2500 |
|
70T/2500 |
5.5 |
3100 x 1600 x 2500 |
|
80T/2500 |
7.5 |
3100 x 1600 x 2600 |
|
110/2500 |
11 |
3100 x 1800 x 2600 |
|
110T/3200 |
11 |
3800 x 1800 x 2600 |
|
110T/4000 |
11 |
4600 x 1800 x 2600 |
|
135T/3200 |
11 |
3800 x 1800 x 2700 |
|
135T/4000 |
11 |
4600 x 1800 x 2700 |
|
170T/3200 |
15 |
3800 x 2000 x 2800 |
|
170T/4000 |
15 |
4600 x 2000 x 2800 |
|
220T/3200 |
18.5 |
3800 x 2200 x 2850 |
|
220T/4000 |
18.5 |
4600 x 2200 x 2850 |
|
250T/3200 |
22 |
3800 x 2000 x 2900 |
|
250T/4000 |
22 |
4600 x 2100 x 3100 |
|
250T/5000 |
22 |
5600 x 2150 x 3150 |
|
250T/6000 |
22 |
6600 x 2150 x 3150 |
|
300T/3200 |
22 |
3800 x 2250 x 3200 |
|
300T/4000 |
22 |
4600 x 2500 x 3400 |
|
300T/5000 |
22 |
5600 x 2500 x 3400 |
|
300T/6000 |
22 |
6600 x 2500 x 3400 |
|
400T/3200 |
30 |
3800 x 2700 x 3500 |
|
400T/4000 |
30 |
4600 x 2700 x 3500 |
|
400T/5000 |
30 |
5600 x 2700 x 3500 |
|
400T/6000 |
30 |
6600 x 2700 x 3500 |
|
500T/4000 |
37 |
4600 x 2700 x 3500 |
|
500T/5000 |
37 |
5600 x 2700 x 3500 |
|
500T/6000 |
37 |
6600 x 2700 x 3600 |
|
600T/5000 |
45 |
5600 x 3300 x 3900 |
|
600T/6000 |
45 |
6600 x 3300 x 3900 |
|
600T/7000 |
45 |
7600 x 3300 x 3900 |
|
800T/6000 |
2 x 30 |
6600 x 3500 x 4000 |
|
800T/7000 |
2 x 30 |
7600 x 3500 x 4200 |
|
800T/8000 |
2 x 30 |
8600 x 3600 x 4500 |
|
800T/10000 |
2 x 30 |
1060 x 3600 x 4900* |
Common press brake tooling options
The following options may be used when specifying press brake tooling and clamping. Compatibility and inclusion must be matched to the selected machine and application.
- Custom upper dies/punches with multiple profiles/angles
- Custom lower dies including V dies and other profiles
- WILA upper tool hydraulic clamping with electrical actuation
- WILA lower-tool hydraulic holders with electrical actuation
- WILA pneumatic self-locking clamping function described
- WILA New Standard clamping systems
- WILA hydraulic punch and die clamping
- WILA New Standard crowning and holders
The tooling illustrations show multiple upper and lower die profiles. They are options and custom tooling examples, not a statement that every profile or clamping system is supplied with every press brake
