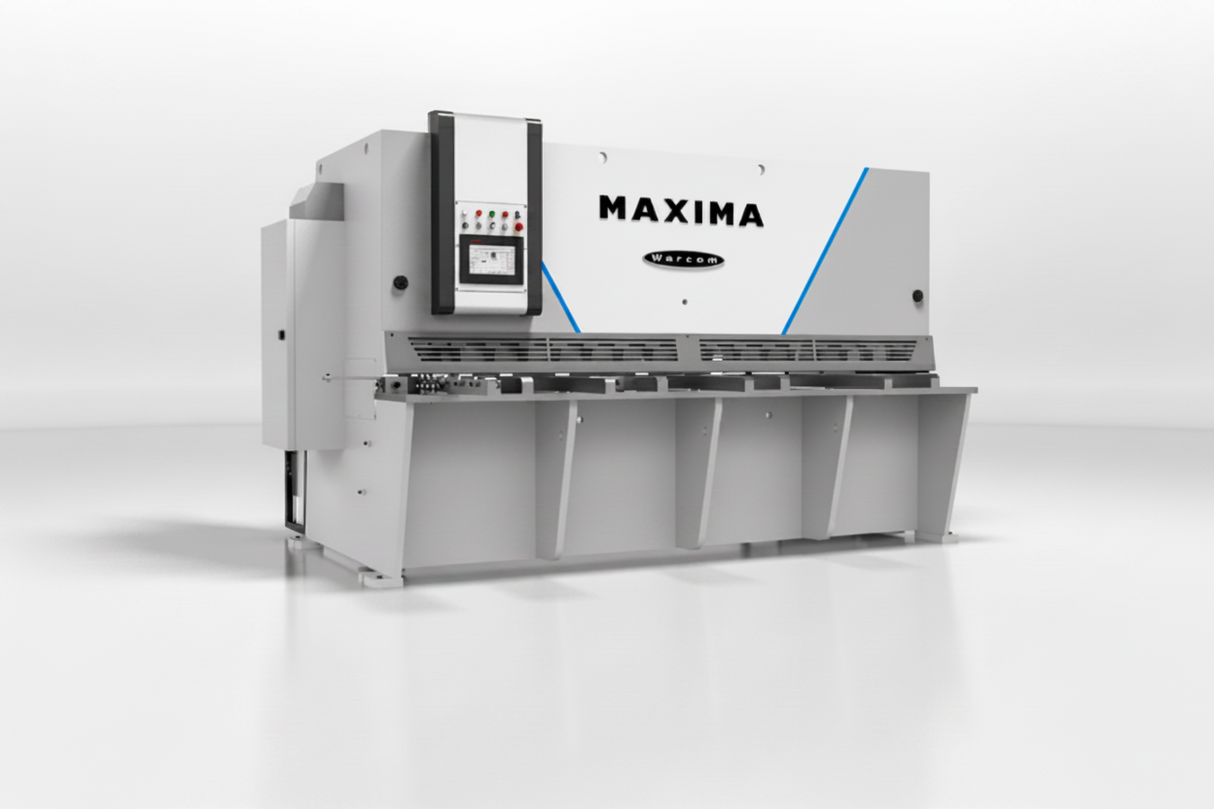

Maxima 20-06 Hydraulic Guillotine Shear
$0.00
Unit price
/
Unavailable
The Warcom Maxima 20-06 is a high-performance hydraulic guillotine shear engineered for precision sheet metal cutting. Manufactured in Italy, this CNC-controlled machine delivers excellent cutting accuracy, high productivity, and reliable operation for fabrication shops, OEM manufacturers, and metal processing facilities.
Designed with a robust welded frame, programmable CNC controls, and hydraulic blade clearance and rake angle adjustment, the Maxima series provides fast setup times while maintaining exceptional cut quality across a wide range of materials.
Key Features
- Italian engineered hydraulic guillotine shear
- 2,050 mm (80.7") cutting length
- Cuts mild steel up to 6 mm nominal / 9 mm maximum
- Siemens/Weintek 10" touchscreen CNC
- 3 CNC controlled axes
- Hydraulic blade clearance adjustment
- Hydraulic rake angle adjustment
- Retractable CNC backgauge
- Hydraulic independent hold-down system
- Two-edge hardened blades
- Automatic centralized lubrication
- Shadow line cutting system
- Heavy-duty welded construction
- CSA Certified
Machine Specifications
| Specification | Value |
|---|---|
| Manufacturer | Warcom |
| Model | Maxima 20-06 |
| Machine Type | Hydraulic Guillotine Shear |
| Cutting Length | 2050 mm (80.7") |
| Distance Between Side Frames | 2150 mm |
| Throat Depth | 500 mm |
| Nominal thickness | 6 mm |
| Cutting capacity R=42 Kg mm2 nom./maximum | 6/9 mm |
| Rake angle adjustment | 0°30' – 4° |
| Nominal angle (degrees) | 2° |
| Backgauge Stroke | 750 mm |
| Stroke Rate | 26–48 strokes/min |
| Main Motor | 11 kW |
| Power Supply | 400V / 50Hz / 3 Phase |
| Approximate Weight | 6,000 kg (13,228 lbs) |
Standard Equipment
- Siemens / Weintek 10" Touchscreen CNC
- CNC controlled blade clearance
- CNC controlled rake angle
- CNC controlled backgauge
- Hydraulic rake angle and blade gap adjustment managed by CNC
- Retractable back gauge during cutting phase
- Foot pedal for remote control
- Two-edge blade suitable for mild steel plates and for stainless steel plates
- Hydraulic and independent hold down units
- Machine without first fill oil
- Standard front support arms
- Standard ruled squaring arm
- Automatic centralized lubrication pump
- Shadow line cutting
- CSA compliant safety system
Optional Accessories
Available options include:
- 1,000 mm Backgauge
- Pneumatic sheet support arms
- Ruled side square arms
- Hydraulic swing beam backgauge
- Protractor squaring arms
- Ball transfer table
- Movable swing-up safety guard
- Installation & operator training
Industries
Ideal for:
- Metal fabrication
- Sheet metal manufacturing
- HVAC fabrication
- Agricultural equipment
- Trailer manufacturing
- Automotive suppliers
- General engineering shops
- Industrial fabrication
Why Choose the Warcom Maxima Series?
- High cutting accuracy
- Fast CNC setup
- Reliable Italian manufacturing
- Heavy-duty industrial construction
- Easy-to-use touchscreen interface
- Low maintenance hydraulic system
- Excellent productivity for daily production
