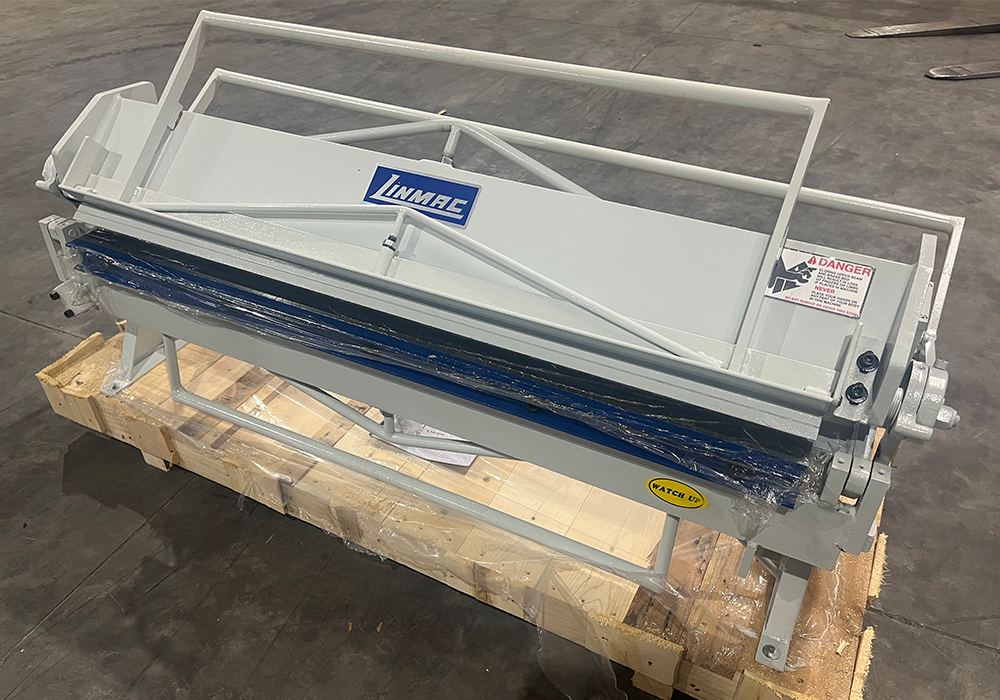

4 Foot 16 Gauge S-Lock Brake

Linmac manual bending brakes are precision machines designed for accurate bending with rated capacities. The model NS4816-SL is a heavy-duty bench brake suitable for S-Locks or straight bending in up to 16-gauge mild steel. The front to rear adjustment allows for a wide range of radius bending.

Standard Feature

• Length - 48”
• Bending Angle: 0-135°
• Beam Adjustment: 1”
• Min Reverse Bend: 1/2”
• Positive clamping pressure adjustment
• Adjustable apron hinges and a positive rear material gauge adjustment
• Apron stop rods for repeat bends
• Heavy tie rods for minimum deflection

Specifications and Capacities

• Capacity, mild steel: 16 ga.
• Bending Length: 48″
• Maximum Lift of Beam: 1-3/4″
• Front to Rear Beam Adjustment: 5/8″
