4 Foot 16 Gauge S-Lock Brake
$0.00
Unit price
/
Unavailable

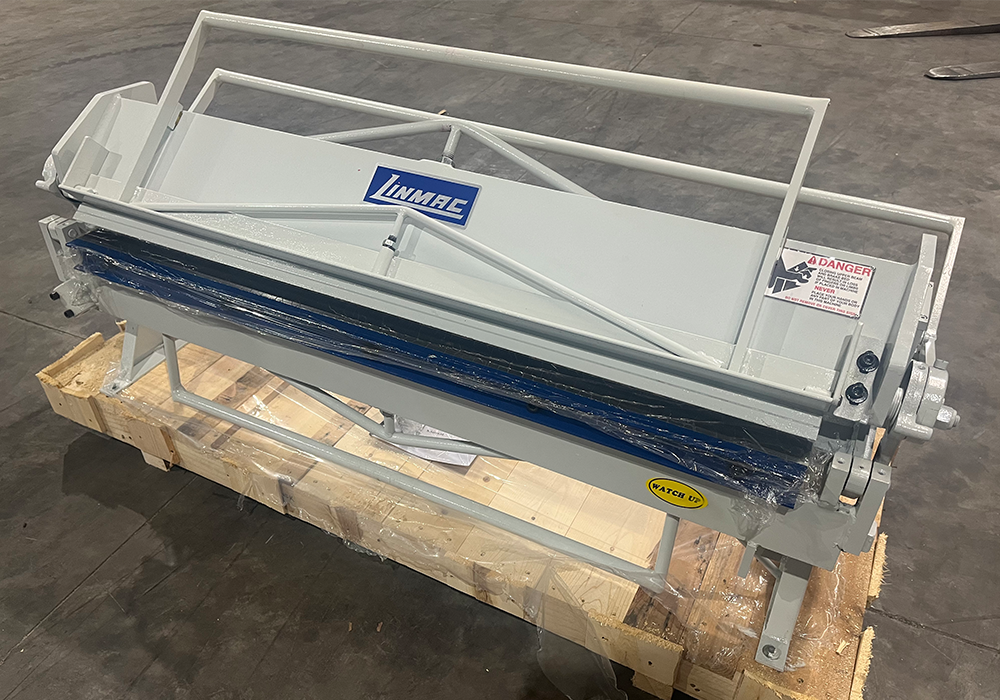

Linmac manual bending brakes are precision machines designed for accurate bending with rated capacities. The model NS4816-SL is a heavy-duty bench brake suitable for S-Locks or straight bending in up to 16-gauge mild steel. The front to rear adjustment allows for a wide range of radius bending.
Standard Feature
- Length - 48”
- Bending Angle: 0-135°
- Beam Adjustment: 1”
- Min Reverse Bend: 1/2”
- Positive clamping pressure adjustment
- Adjustable apron hinges and a positive rear material gauge adjustment
- Apron stop rods for repeat bends
- Heavy tie rods for minimum deflection
Specifications and Capacities
- Capacity, mild steel: 16 ga.
- Bending Length: 48″
- Maximum Lift of Beam: 1-3/4″
- Front to Rear Beam Adjustment: 5/8″
