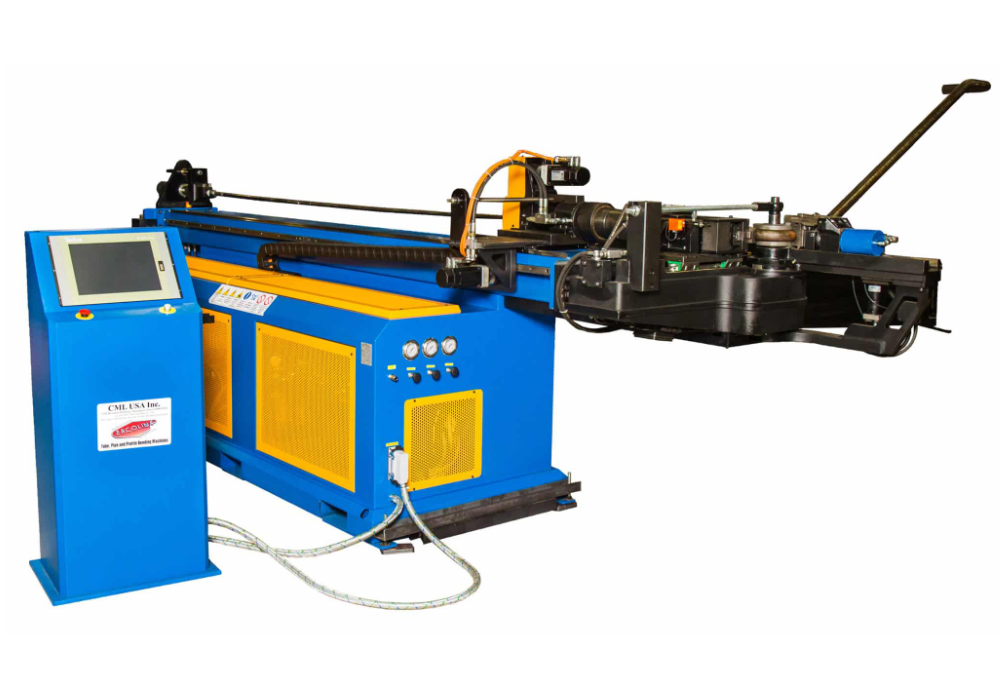

2.5" Automatic CNC Mandrel Tube Bender
$0.00
Unit price
/
Unavailable
Description
Obtain quality repeatable bends in steel, stainless, aluminum, titanium and brass with Ercolina’s Erco Bender 65 CNC 3V1 Mandrel Bender. Ercolina’s model EB65 – 3 Axis mandrel bender has an extended bending head capable of bending complex shapes and profiles.
Standard Features
- Mild steel tube capacity 2-1/2" (.083 wall)
- Stainless tube capacity 2" (.065 wall)
- Maximum pipe capacity 1-1/2" Sch. 40
- Automatic or manual bend sequencing
- Independent pressure and clamp die adjustment
- Programmable carriage movement for tight radii
- Standard right hand bending direction
- Interactive touch screen with auto and manual operating modes, system diagnostics and multiple language capability
- Programmable material springback settings for each bend angle
- USB for unlimited program memory storage
- Displays absolute (ABS) or incremental (INC) positioning with inch or metric readout
- Optional file importation of IGES and DXF files - consult Ercolina for details and pricing
- Accepts YBC and XYZ input values
- Y - Feeding Electric Servo
- B - Rotation Electric Servo
- C - Bending Hydraulic CNC
Specifications and Capacities
- Max. Tube Capacity – Mild Steel 2½″ (.083 wall), Stainless 2½″ (.065 wall)
- Pipe Capacity 1½″ Sch. 40
- Max. Bending Radius 9.8″
- Min. Bending Radius 1.5 x Ø
- Max. Shaft Rotation 210°
- Max. Bending Angle 185°
- Max. Tailstock Capacity 2½″
- Interactive Touch Screen Control 10″ color screen
- Max. Material Length – Standard table 13′
- Optional Table Extension 21′
- Minimum Underhead Swing Clearance 14.5″
- Length of Bending Head 59″
- Maximum Carriage Travel 125″
- Number of Programs Unlimited
- Precision of Bend Angle +/- .5°
- Power Three Phase 480V
- Dimensions (Height x Width x Length) 52″ x 44″ x 205″
- Weight 7,200 lbs
