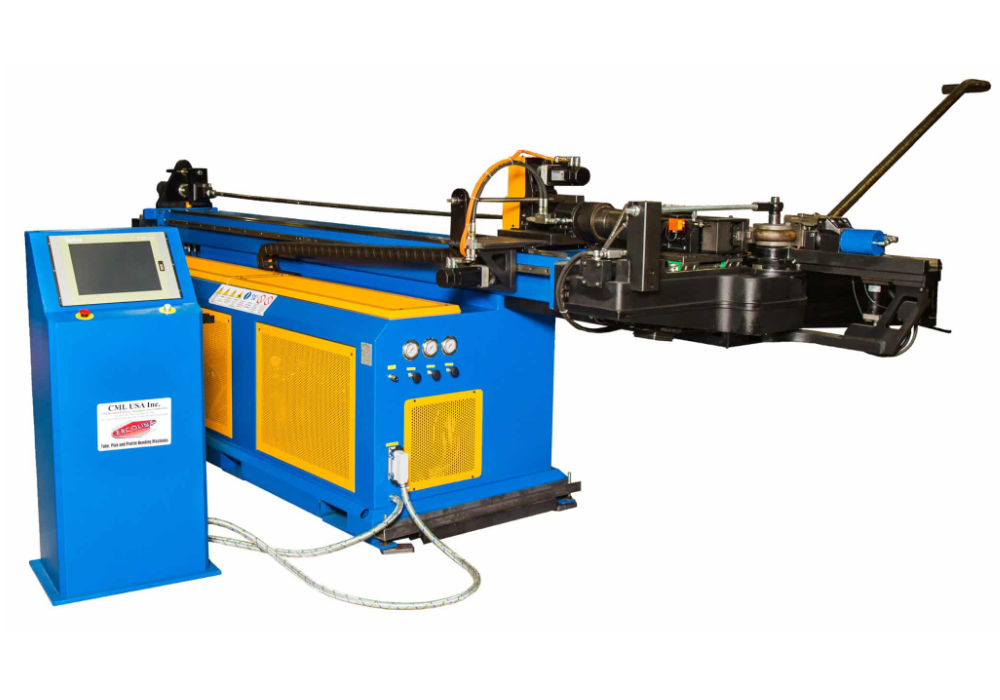

2.5" Automatic CNC Mandrel Tube Bender

Manufacturer: Ercolina

Model: EB65CNC


Quote Request

 Thank you for your quote request, we will be in touch shortly.

Description

Obtain quality repeatable bends in steel, stainless, aluminum, titanium and brass with Ercolina’s Erco Bender 65 CNC 3V1 Mandrel Bender. Ercolina’s model EB65 – 3 Axis mandrel bender has an extended bending head capable of bending complex shapes and profiles.

Standard Features
  • Mild steel tube capacity 2-1/2" (.083 wall)
  • Stainless tube capacity 2" (.065 wall)
  • Maximum pipe capacity 1-1/2" Sch. 40
  • Automatic or manual bend sequencing
  • Independent pressure and clamp die adjustment
  • Programmable carriage movement for tight radii
  • Standard right hand bending direction
  • Interactive touch screen with auto and manual operating modes, system diagnostics and multiple language capability
  • Programmable material springback settings for each bend angle
  • USB for unlimited program memory storage
  • Displays absolute (ABS) or incremental (INC) positioning with inch or metric readout
  • Optional file importation of IGES and DXF files - consult Ercolina for details and pricing
  • Accepts YBC and XYZ input values
  • Y - Feeding Electric Servo
  • B - Rotation Electric Servo
  • C - Bending Hydraulic CNC
Specifications and Capacities
  • Max. Tube Capacity –  Mild Steel 2½″ (.083 wall), Stainless 2½″ (.065 wall)
  • Pipe Capacity 1½″ Sch. 40
  • Max. Bending Radius 9.8″
  • Min. Bending Radius 1.5 x Ø
  • Max. Shaft Rotation 210°
  • Max. Bending Angle 185°
  • Max. Tailstock Capacity 2½″
  • Interactive Touch Screen Control 10″ color screen
  • Max. Material Length –  Standard table 13′
  • Optional Table Extension  21′
  • Minimum Underhead Swing Clearance 14.5″
  • Length of Bending Head  59″
  • Maximum Carriage Travel  125″
  • Number of Programs  Unlimited
  • Precision of Bend Angle  +/- .5°
  • Power  Three Phase 480V
  • Dimensions (Height x Width x Length) 52″ x 44″ x 205″
  • Weight  7,200 lbs
