2.5" Semi-Automatic Mandrel Bender

Manufacturer: Ercolina

Model: 030 Mega Bender


Quote Request

 Thank you for your quote request, we will be in touch shortly.

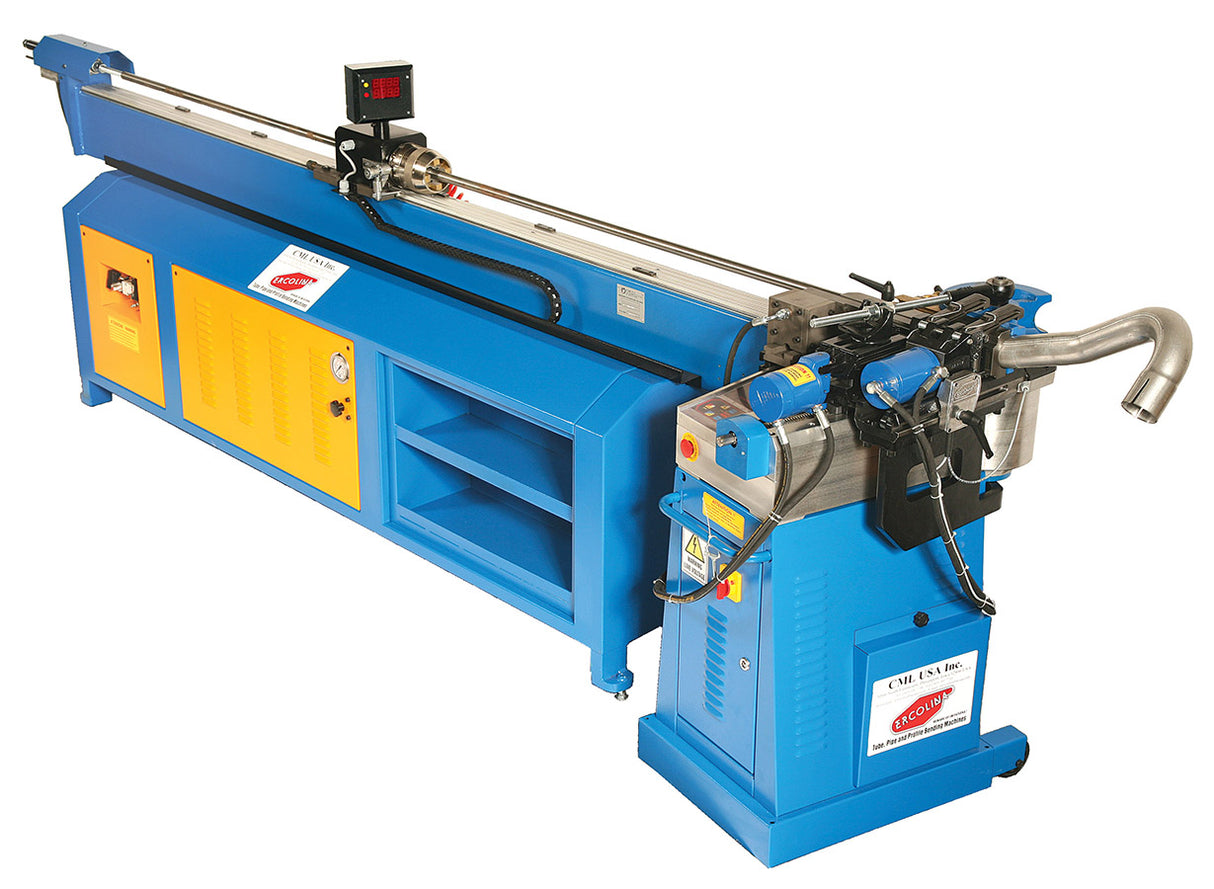

Ercolina’s Mega Bender 030 with mandrel system is ideal for prototype or small production mandrel bending applications. Model pictured with 10’ table.

Standard Features
  • Mild steel tube capacity 2.5″ (.083 wall)
  • Stainless tube capacity 2.5″ (.065 wall)
  • Square tube capacity 2″ (.065 wall)
  • Pipe capacity 1.5″ Sch. 40
  • Maximum bend radius 7.875″
  • Bend to CLR as small as 1.5D
  • Variable bending speed
  • Programmable bend angle
  • Ideal for bending handrail, thin wall mild steel, stainless steel, bend grade aluminum and other materials
  • Programmable bend sequencing and mandrel retraction
  • Independent clamp and pressure die adjustment
  • Quick change tooling reduces setup time
  • Bending software available for part layout guideline
  • Reference display of Y & B axis to assist set-up
  • Y – Feeding manual with adjustable stops
  • B – Feeding manual with adjustable stops
  • C – NC programmable bend angle
  • A15/H76 – 5′ mandrel table only
  • A3/H76 – 10′ mandrel table only
  • A6/H76 – 20′ mandrel table only
Specifications and Capacities
  • Tube Capacity – Mild Steel 2½″ (.083 wall), Stainless 2½″ (.065 wall), Square Tube 2″ (.065 wall) Max. Pipe Capacity  1½″ Sch. 40
  • Bending Radius 7⅞″
  • Bending Radius 1.5 x Ø
  • Shaft Rotation 210°
  • Bending Angle 180°
  • Tailstock Capacity 2⅜″
  • Material Length – 5′ table 59″ 10′ table 118″ 20′ table 240″
  • Mandrel Table (available in 5′-10′-20′ lengths) 165″
  • Number of Programs (30) Standard
  • Precision of Bend Angle +/- 1°
  • Power Three Phase 220V or 480V
  • Dimensions (Height x Width x Length) 44″ x 32″ x 83″-260″
  • Weight 1,600 lbs.
