2.5" Semi-Automatic Mandrel Bender
$0.00
Unit price
/
Unavailable

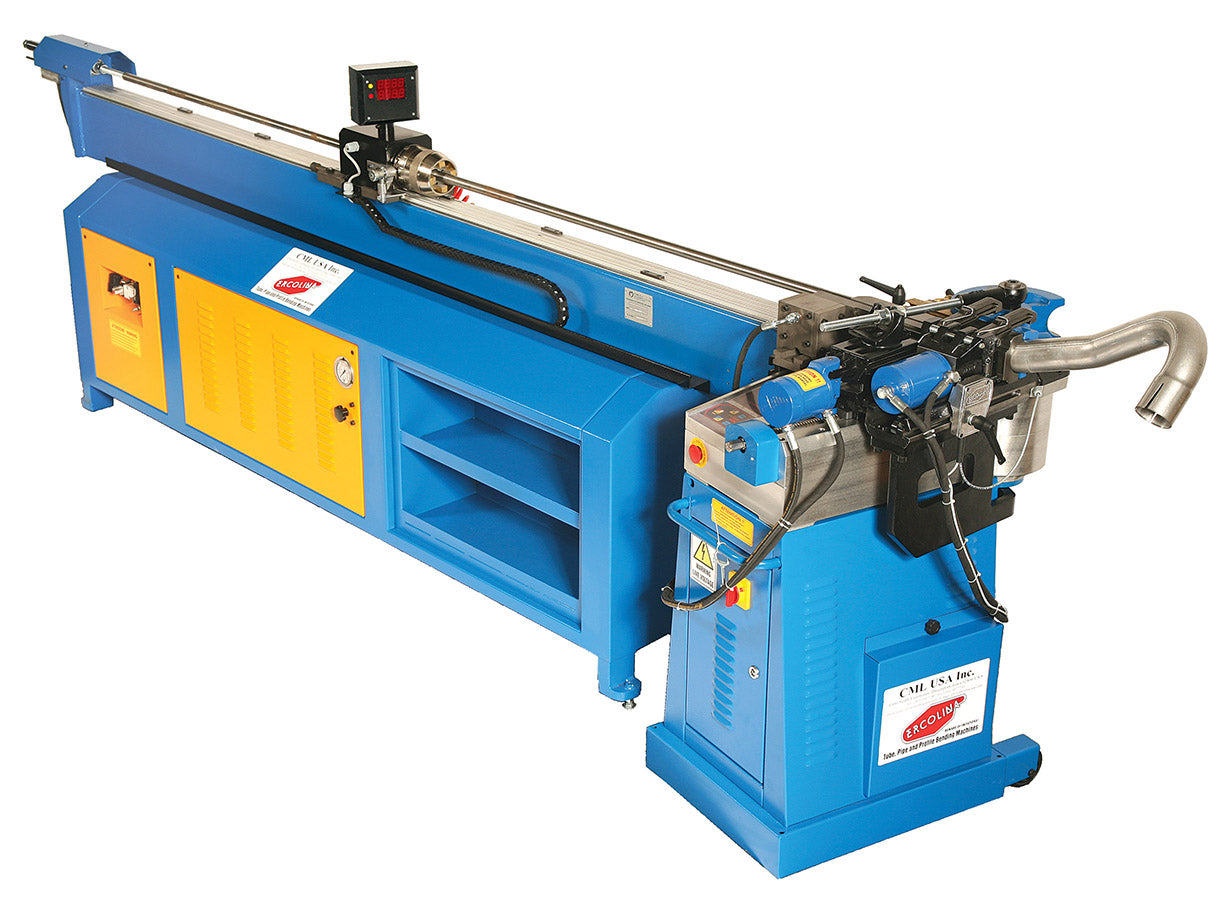

Ercolina’s Mega Bender 030 with mandrel system is ideal for prototype or small production mandrel bending applications. Model pictured with 10’ table.
Standard Features
- Mild steel tube capacity 2.5″ (.083 wall)
- Stainless tube capacity 2.5″ (.065 wall)
- Square tube capacity 2″ (.065 wall)
- Pipe capacity 1.5″ Sch. 40
- Maximum bend radius 7.875″
- Bend to CLR as small as 1.5D
- Variable bending speed
- Programmable bend angle
- Ideal for bending handrail, thin wall mild steel, stainless steel, bend grade aluminum and other materials
- Programmable bend sequencing and mandrel retraction
- Independent clamp and pressure die adjustment
- Quick change tooling reduces setup time
- Bending software available for part layout guideline
- Reference display of Y & B axis to assist set-up
- Y – Feeding manual with adjustable stops
- B – Feeding manual with adjustable stops
- C – NC programmable bend angle
- A15/H76 – 5′ mandrel table only
- A3/H76 – 10′ mandrel table only
- A6/H76 – 20′ mandrel table only
Specifications and Capacities
- Tube Capacity – Mild Steel 2½″ (.083 wall), Stainless 2½″ (.065 wall), Square Tube 2″ (.065 wall) Max. Pipe Capacity 1½″ Sch. 40
- Bending Radius 7⅞″
- Bending Radius 1.5 x Ø
- Shaft Rotation 210°
- Bending Angle 180°
- Tailstock Capacity 2⅜″
- Material Length – 5′ table 59″ 10′ table 118″ 20′ table 240″
- Mandrel Table (available in 5′-10′-20′ lengths) 165″
- Number of Programs (30) Standard
- Precision of Bend Angle +/- 1°
- Power Three Phase 220V or 480V
- Dimensions (Height x Width x Length) 44″ x 32″ x 83″-260″
- Weight 1,600 lbs.
