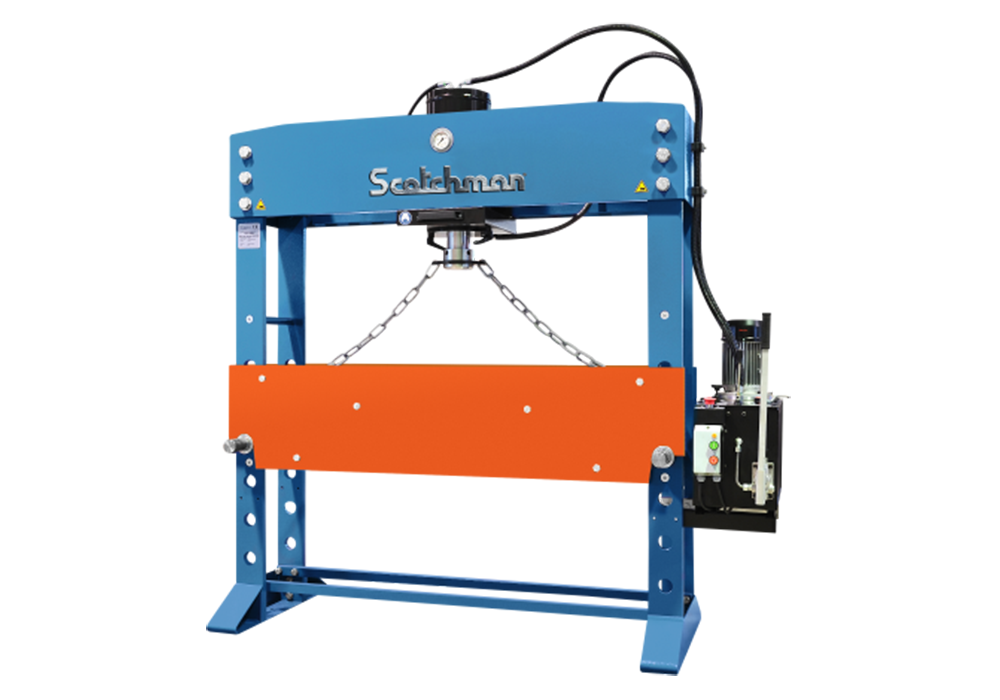

110 Ton H-Frame Press w/ Extra Wide Table

Manufacturer: Scotchman

Model: PressPro 110W

The Scotchman PressPro 110W ton hydraulic press has an extra wide working width (1500 mm) for handling larger materials.

It features a movable cylinder (left to right) and an in-height adjustable working table. In addition, it has a pressure regulation, 2 speeds, a joystick and a hand pump for precision pressing.

This hydraulic press is industrial-grade and ideal for assembly, straightening, fabrication, quality control, maintenance, product testing, bending, & forming.

The open side frame design allows for material to pass through and provides flexibility to work on the longest work pieces. The adjustable H-frame bed height offers increased versatility with its ability to raise and lower the table for the best working distance possible The PressPro is backed by a 3-year warranty.

Standard Features
  • Heavy Duty All-Steel Construction
  • Industrial Grade Hydraulic System
  • Extra-wide working width for handling larger materials
  • Ram Moves Laterally for Added Versatility
  • 3 Ram Speeds15" of vertical ram travel
  • Joystick Operation with Hand Pump Option
  • Removable Ram Cap to Accept a Wide Variety of Tooling
  • Open-side frame design allows for material to pass through
  • Adjustable H-Frame Table Height Offers Increased Versatility
  • Hydraulic-assist adjustable work table for maximum operator safety
  • Set of V-blocks to simplify your pressing jobs
  • Pressure gauge to monitor force
  • Three-year warranty
  • Made in the Netherlands
Specifications and Capacities

Capacity

110 ton

100 mt

Motor Rate

3 hp

2.2 kW

Motor Options (must specify)

230/460v, 3ph

RPM

3,000

Ram Speed - Approach

18 ipm

7.54 mm/s

Ram Speed - Press

5 ipm

2.47 mm/s

Ram Speed - Return

21 ipm

9.06 mm/s

Open Height (min.)

5"

127mm

Open Height (max.)

34-3/4"

882.7 mm

Stroke

15"

381 mm

Lateral Ram Slide

YES

Width Between Uprights

59"

1,500 mm

Width Between Table Channels

11-3/4"

298.5 mm

Table Height

Adjustable

Footprint (LxW)

81-1/4" x 34"

2,063.75mm x 863.6mm

Height Overall

82"

2,080 mm

Weight (including V-blocks)

3,451 lbs.

1,563.3 kg
