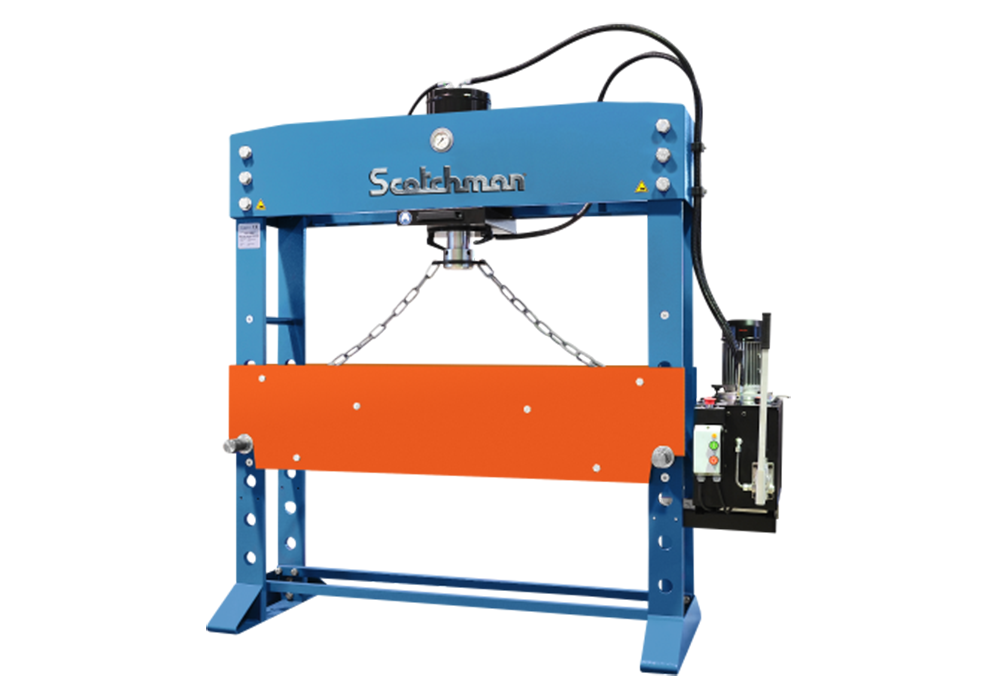

110 Ton H-Frame Press w/ Extra Wide Table
The Scotchman PressPro 110W ton hydraulic press has an extra wide working width (1500 mm) for handling larger materials.
It features a movable cylinder (left to right) and an in-height adjustable working table. In addition, it has a pressure regulation, 2 speeds, a joystick and a hand pump for precision pressing.
This hydraulic press is industrial-grade and ideal for assembly, straightening, fabrication, quality control, maintenance, product testing, bending, & forming.
The open side frame design allows for material to pass through and provides flexibility to work on the longest work pieces. The adjustable H-frame bed height offers increased versatility with its ability to raise and lower the table for the best working distance possible The PressPro is backed by a 3-year warranty.
Standard Features
- Heavy Duty All-Steel Construction
- Industrial Grade Hydraulic System
- Extra-wide working width for handling larger materials
- Ram Moves Laterally for Added Versatility
- 3 Ram Speeds15" of vertical ram travel
- Joystick Operation with Hand Pump Option
- Removable Ram Cap to Accept a Wide Variety of Tooling
- Open-side frame design allows for material to pass through
- Adjustable H-Frame Table Height Offers Increased Versatility
- Hydraulic-assist adjustable work table for maximum operator safety
- Set of V-blocks to simplify your pressing jobs
- Pressure gauge to monitor force
- Three-year warranty
- Made in the Netherlands
Specifications and Capacities
|
Capacity |
110 ton |
100 mt |
|
Motor Rate |
3 hp |
2.2 kW |
|
Motor Options (must specify) |
230/460v, 3ph |
|
|
RPM |
3,000 |
|
|
Ram Speed - Approach |
18 ipm |
7.54 mm/s |
|
Ram Speed - Press |
5 ipm |
2.47 mm/s |
|
Ram Speed - Return |
21 ipm |
9.06 mm/s |
|
Open Height (min.) |
5" |
127mm |
|
Open Height (max.) |
34-3/4" |
882.7 mm |
|
Stroke |
15" |
381 mm |
|
Lateral Ram Slide |
YES |
|
|
Width Between Uprights |
59" |
1,500 mm |
|
Width Between Table Channels |
11-3/4" |
298.5 mm |
|
Table Height |
Adjustable |
|
|
Footprint (LxW) |
81-1/4" x 34" |
2,063.75mm x 863.6mm |
|
Height Overall |
82" |
2,080 mm |
|
Weight (including V-blocks) |
3,451 lbs. |
1,563.3 kg |
