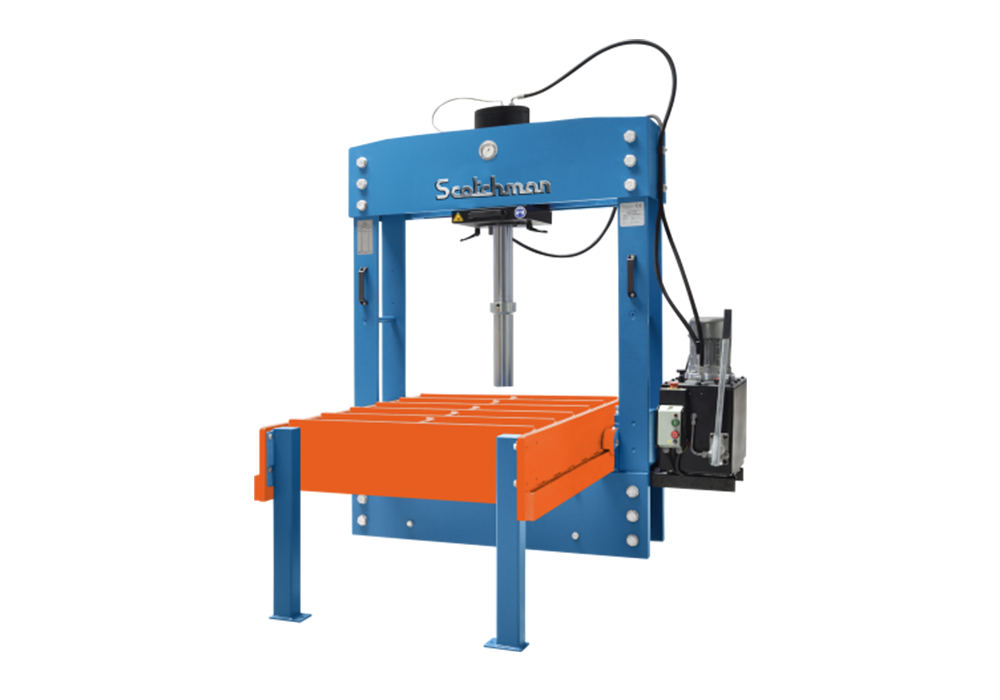

176 Ton H-Frame Press w/ Movable Table
This Scotchman Presspro 176MT is a 176 ton press has a movable table which allows for overhead loading of heavy workpieces and is ideal for the straightening of large sheets and structures. User can easily slide ram head from side to side and move the table forward and back to access all different points of the work surface. The movable table/bed and movable cylinder design allows user to easily reach every point of the ‘to be pressed’ surface. Movement of the ram cylinder and table frame are done manually.
The quality of these hydraulic straightening presses is very high and the hydraulic unit is equipped with a pressure regulator, 2 speeds, joystick and a hand pump for precision pressing.
The PressPro is backed by a 3-year warranty.
Standard Features
- Heavy Duty All-Steel Construction
- Industrial Grade Hydraulic System
- Movable table/bed feature allows for overhead loading of heavy workpieces
- Ram head easily slides from side to side; table moves forward and back
- 3 Ram Speeds
- 15-3/4" of vertical ram travel, with cylinder extension of 12" to reach table
- Joystick Operation with Hand Pump Option
- Removable Ram Cap to Accept a Wide Variety of Tooling
- Pressure gauge to monitor force
- Three-year warranty
- Made in the Netherlands
Specifications and Capacities
|
Capacity |
176 Ton |
160 mt |
|
Motor Rate |
4 hp |
3 kW |
|
Motor Options (must specify) |
230/460v, 3ph |
|
|
RPM |
3,000 |
|
|
Ram Speed - Approach |
18 ipm |
7.54 mm/s |
|
Ram Speed - Press |
5 ipm |
2.47 mm/s |
|
Ram Speed - Return |
22 ipm |
9.35 mm/s |
|
Open Height (min.) |
7" |
177.8 mm |
|
Open Height (max.) |
36-1/2" |
927 mm |
|
Stroke |
15-3/4" |
400 mm |
|
Lateral Ram Slide |
YES |
|
|
Width Between Uprights |
43-1/4" |
1,100 |
|
Width Between Table Channels |
15" |
381 mm |
|
Table Height |
Adjustable |
|
|
Footprint (LxW) |
68" x 37" |
1,727.2mm x 939.8mm |
|
Height Overall |
89" |
2,260 mm |
|
Weight (including V-blocks) |
2,873 lbs. |
1,303.1 kg |
