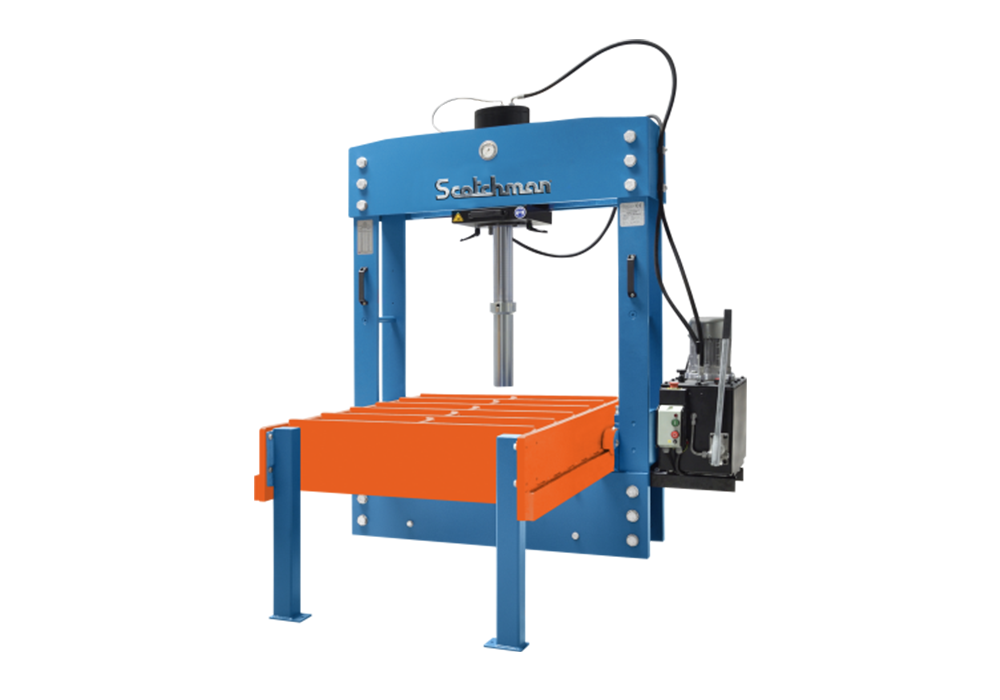

176 Ton H-Frame Press w/ Movable Table

Manufacturer: Scotchman

Model: PressPro 176MT


Quote Request

 Thank you for your quote request, we will be in touch shortly.

This Scotchman Presspro 176MT is a 176 ton press has a movable table which allows for overhead loading of heavy workpieces and is ideal for the straightening of large sheets and structures. User can easily slide ram head from side to side and move the table forward and back to access all different points of the work surface. The movable table/bed and movable cylinder design allows user to easily reach every point of the ‘to be pressed’ surface. Movement of the ram cylinder and table frame are done manually.

The quality of these hydraulic straightening presses is very high and the hydraulic unit is equipped with a pressure regulator, 2 speeds, joystick and a hand pump for precision pressing.

The PressPro is backed by a 3-year warranty.

Standard Features
  • Heavy Duty All-Steel Construction
  • Industrial Grade Hydraulic System
  • Movable table/bed feature allows for overhead loading of heavy workpieces
  • Ram head easily slides from side to side; table moves forward and back
  • 3 Ram Speeds
  • 15-3/4" of vertical ram travel, with cylinder extension of 12" to reach table
  • Joystick Operation with Hand Pump Option
  • Removable Ram Cap to Accept a Wide Variety of Tooling
  • Pressure gauge to monitor force
  • Three-year warranty
  • Made in the Netherlands
    Specifications and Capacities

    Capacity

    176 Ton

    160 mt

    Motor Rate

    4 hp

    3 kW

    Motor Options (must specify)

    230/460v, 3ph

    RPM

    3,000

    Ram Speed - Approach

    18 ipm

    7.54 mm/s

    Ram Speed - Press

    5 ipm

    2.47 mm/s

    Ram Speed - Return

    22 ipm

    9.35 mm/s

    Open Height (min.)

    7"

    177.8 mm

    Open Height (max.)

    36-1/2"

    927 mm

    Stroke

    15-3/4"

    400 mm

    Lateral Ram Slide

    YES

    Width Between Uprights

    43-1/4"

    1,100

    Width Between Table Channels

    15"

    381 mm

    Table Height

    Adjustable

    Footprint (LxW)

    68" x 37"

    1,727.2mm x 939.8mm

    Height Overall

    89"

    2,260 mm

    Weight (including V-blocks)

    2,873 lbs.

    1,303.1 kg
