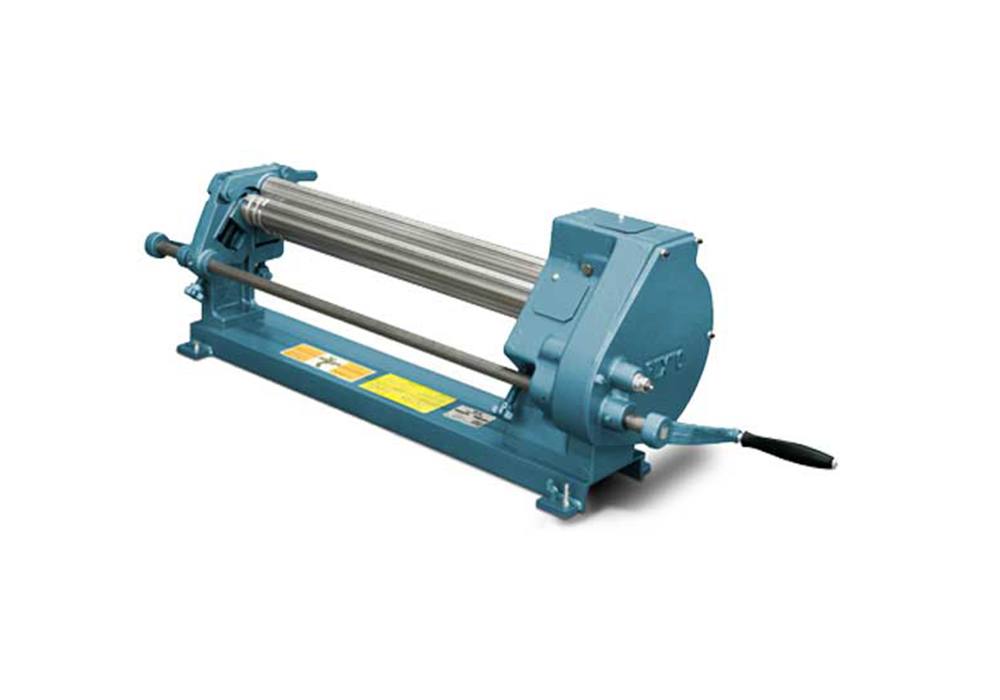

36 Inch 14 Gauge Manual Roll Bender
$0.00
Unit price
/
Unavailable
The Roper Whitney No. 416 manual roll has 3″ precision turned and ground high carbon steel rollers. There are three wiring grooves 3/8″, 1/2″ and 5/8″. All rolls are standard with fully enclosed gear housings and all three rolls are driven. The upper roll lifts for conventional removal of the work piece. The maximum sheet length is 36″ with a thickness capacity of 14-16 gauge mild steel.
Specifications and Capacities
|
Weight |
720 lbs |
|
Dimensions |
69 × 19 × 19 in |
|
Maximum capacity, mild steel |
14 ga/ 2.00 mm |
|
Maximum forming length |
36 in/ 915 mm |
|
Roll diameter |
3 in/ 76 mm |
|
Minimum forming radius |
1.5 in/ 38 mm |
|
Gearing ratio |
4:01 |
|
Wiring grooves |
3/8, 1/2, 5/8/ 9.5, 12.5, 15.5 mm |
