36 Inch 14 Gauge Manual Roll Bender

Manufacturer: Roper Whitney

Model: No. 416


Quote Request

 Thank you for your quote request, we will be in touch shortly.

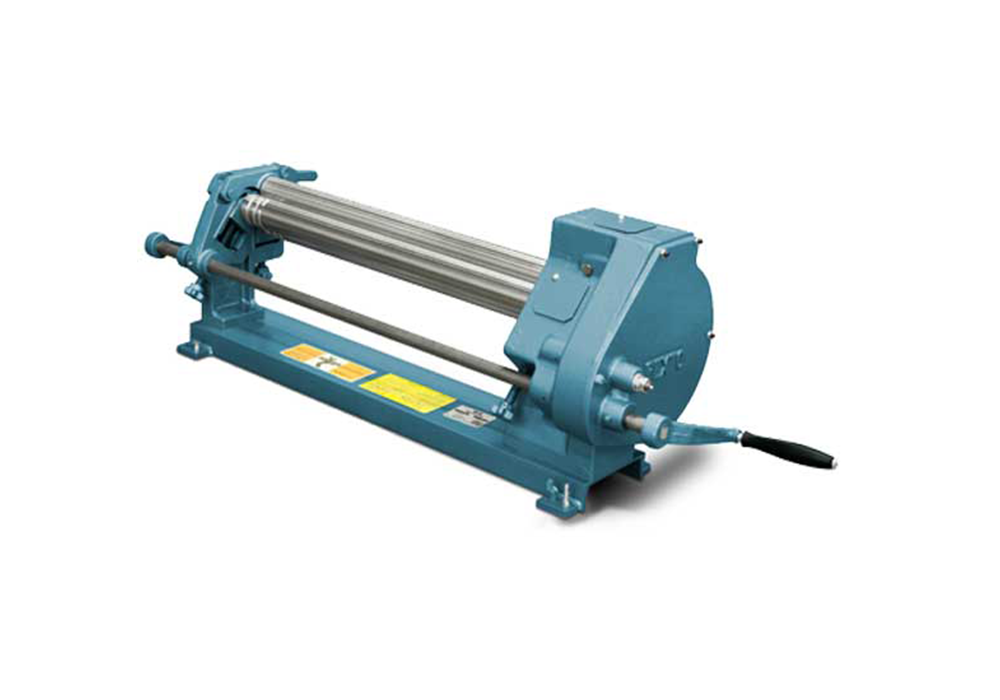

The Roper Whitney No. 416 manual roll has 3″ precision turned and ground high carbon steel rollers. There are three wiring grooves 3/8″, 1/2″ and 5/8″. All rolls are standard with fully enclosed gear housings and all three rolls are driven. The upper roll lifts for conventional removal of the work piece. The maximum sheet length is 36″ with a thickness capacity of 14-16 gauge mild steel.

Specifications and Capacities

Weight

720 lbs

Dimensions

69 × 19 × 19 in

Maximum capacity, mild steel

14 ga/ 2.00 mm

Maximum forming length

36 in/ 915 mm

Roll diameter

3 in/ 76 mm

Minimum forming radius

1.5 in/ 38 mm

Gearing ratio

4:01

Wiring grooves

3/8, 1/2, 5/8/ 9.5, 12.5, 15.5 mm

Roper Whitney

36 Inch 14 Gauge Manual Roll Bender

The Roper Whitney No. 416 manual roll has 3″ precision turned and ground high carbon steel rollers. There are three wiring grooves 3/8″, 1/2″ and 5/8″. All rolls are standard with fully enclosed gear housings and all three rolls are driven. The upper roll lifts for conventional removal of the work piece. The maximum sheet length is 36″ with a thickness capacity of 14-16 gauge mild steel.

Specifications and Capacities

Weight

720 lbs

Dimensions

69 × 19 × 19 in

Maximum capacity, mild steel

14 ga/ 2.00 mm

Maximum forming length

36 in/ 915 mm

Roll diameter

3 in/ 76 mm

Minimum forming radius

1.5 in/ 38 mm

Gearing ratio

4:01

Wiring grooves

3/8, 1/2, 5/8/ 9.5, 12.5, 15.5 mm
