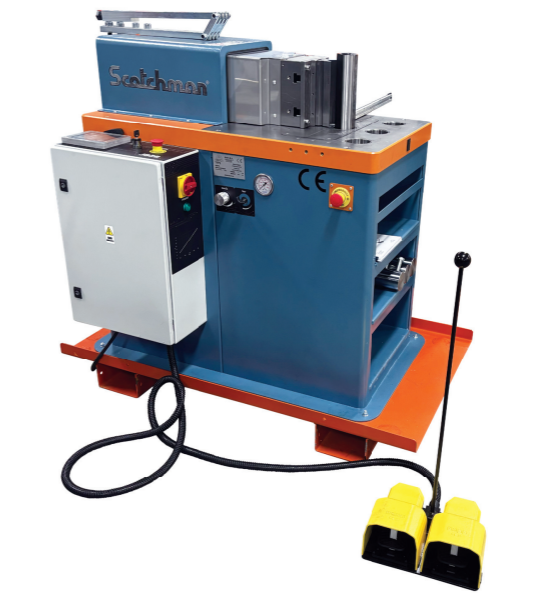

The HB-88, horizontal bending and straightening press is an universal hydraulic press that has been designed to perform bending, profiling and straightening operations. It is equipped with NC-controls and a standard tooling set including a 4 sided V-die with openings of 5/8”, 7/8”, 1-3/8”, 2”, 3” and matching V-stamp, resistance pins, and a manual back gauge.
Standard Features:
• NC control of bends
• Full stroke control settings
• 100 job storage of programs
• Manual programming mode
• Automatic mode: Hold foot pedal down to initiate bend and return
• Support arm to control flex when bending heavy materials
• Dual column posts for straightening applications or chambering of beams
Capacities & Specs:
| Force | 88 US Tons |
| Motor | 7.4 HP |
| Max Pressure | 3,625 psi |
| Stroke |
11.8" |
| Table Size | 17.7" x 28.7" |
| Bending Capacity | 11.8" tall stock |
| Machine Dimensions | 69.5" x 41" x 55" tall |
| Weight in lbs | 4190 |
