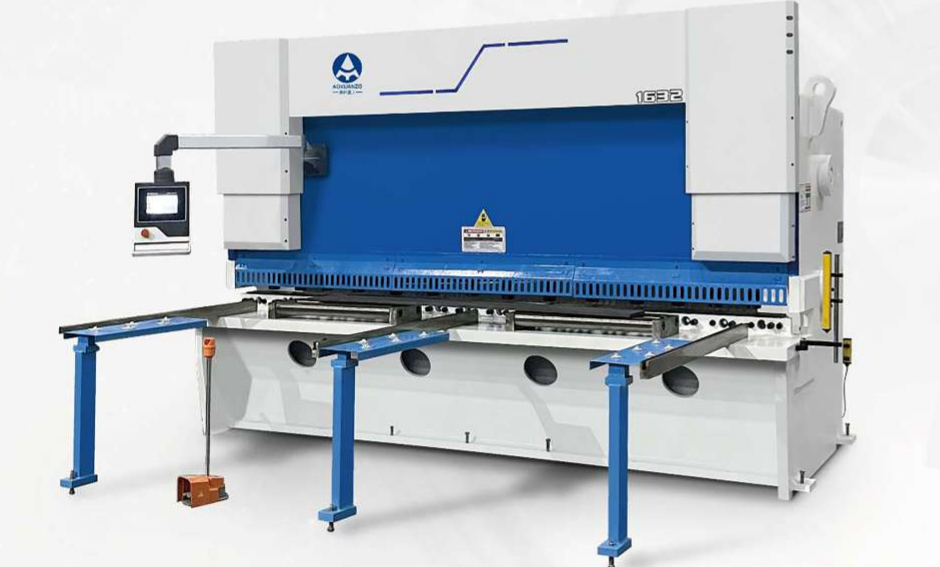

QC11Y Hydraulic Guillotine Shearing Machine
Hydraulic guillotine shearing machine with a vibration stress-relieved welded frame, integrated hydraulic valves, adjustable cutting angle and a motorized backgauge with position display. Model-specific capacities span 6 to 40 mm cutting thickness and 2500 to 8000 mm cutting width.
Features
- Integrated welded steel-sheet structure with vibration stress relief
- Compact integrated hydraulic valve unit with fewer pipe connections
- Series-connected cylinders to maintain cutting angle during the cut
- Accumulator return
- Manual blade-gap adjustment
- Adjustable shearing angle to reduce plate distortion
- Motorized backgauge with position display
- Rolling ball material supports to reduce scuffing and friction
Standard configuration
Built-in spring pressure cylinders; Steel ball worktable supports; Squaring arm and front support arms; Bosch-Rexroth hydraulic valve group; EMB tubing connectors; Siemens main motor; Schneider electrical components; Manual blade-clearance adjustment; Upper and lower 6CrW2Si blades, each with four cutting edges.
Controller options
The catalogue presents the following controller choices. The selected controller, enabled functions and installed axes must match the ordered machine configuration.
Estun E21s
Backgauge and block control; Control for general AC motors and frequency inverter; Intelligent positioning; Stock counter; Holding/decompression time setting; Up to 40 programs; Up to 25 steps per program; One-side positioning; Retract function; One-key parameter backup and restore; mm/inch units; English language selection.
DAC-360T
Panel mounting; High-brightness LCD display; Rear/front gauge control; Back-off function; Shear-angle and gap control; Shear-stroke limitation; Manual movement of all axes; Pressure control; Plate-thickness inspection; Return to feeding position; Second and third servo-axis control; Sheet-support function.
Optional accessories
- Light-curtain protection
- Electric shear-angle adjustment
- Pneumatic material support
- Automatic swing/flip-up function (catalogue wording; exact mechanism to be confirmed)
QC11Y cutting and backgauge specifications
All 31 guillotine shear rows use the source prefix Q11Y/K. For example, suffix 6x2500 corresponds to the printed Q11Y/K-6*2500. The series heading is QC11Y. Angles beginning 30′ mean 30 arcminutes, or 0.5 degrees.
|
Model suffix |
Thickness |
Cutting width |
Cutting angle range |
Backgauge range |
Strokes |
|
6x2500 |
6 |
2500 |
30′-1°30′ |
20-800 |
16-25 |
|
6x3200 |
6 |
3200 |
30′-1°30′ |
20-800 |
14-20 |
|
6x4000 |
6 |
4000 |
30′-1°30′ |
20-800 |
12-17 |
|
6x5000 |
6 |
5000 |
30′-1°30′ |
20-800 |
8-14 |
|
6x6000 |
6 |
6000 |
30′-1°30′ |
20-800 |
7-12 |
|
8x2500 |
8 |
2500 |
30′-1°30′ |
20-800 |
13-20 |
|
8x3200 |
8 |
3200 |
30′-1°30′ |
20-800 |
11-18 |
|
8x4000 |
8 |
4000 |
30′-1°30′ |
20-800 |
9-16 |
|
8x5000 |
8 |
5000 |
30′-1°30′ |
20-800 |
8-15 |
|
8x6000 |
8 |
6000 |
30′-1°30′ |
20-800 |
7-14 |
|
13x2500 |
13 |
2500 |
30′-2° |
20-800 |
10-20 |
|
13x3200 |
13 |
3200 |
30′-2° |
20-800 |
9-18 |
|
13x4000 |
13 |
4000 |
30′-2° |
20-800 |
8-16 |
|
13x5000 |
13 |
5000 |
30′-2° |
20-1000 |
7-14 |
|
13x6000 |
13 |
6000 |
30′-2° |
20-1000 |
6-12 |
|
16x2500 |
16 |
2500 |
30′-2°30′ |
20-800 |
9-18 |
|
16x3200 |
16 |
3200 |
30′-2°30′ |
20-800 |
8-17 |
|
16x4000 |
16 |
4000 |
30′-2°30′ |
20-800 |
7-15 |
|
16x6000 |
16 |
6000 |
30′-2°30′ |
20-1000 |
6-11 |
|
16x8000 |
16 |
8000 |
30′-2°30′ |
20-1000 |
4-8 |
|
20x2500 |
20 |
2500 |
30′-3° |
20-800 |
7-16 |
|
20x3200 |
20 |
3200 |
30′-3° |
20-800 |
6-15 |
|
20x4000 |
20 |
4000 |
30′-3° |
20-800 |
6-14 |
|
20x6000 |
20 |
6000 |
30′-3° |
20-1000 |
5-11 |
|
25x2500 |
25 |
2500 |
30′-3°30′ |
20-800 |
5-14 |
|
25x3200 |
25 |
3200 |
30′-3°30′ |
20-800 |
5-10 |
|
25x4000 |
25 |
4000 |
30′-3°30′ |
20-800 |
5-8 |
|
30x2500 |
30 |
2500 |
30′-3° |
20-1000 |
5-12 |
|
30x3200 |
30 |
3200 |
30′-3°30′ |
20-1000 |
4-10 |
|
30x4000 |
30 |
4000 |
30′-3°30′ |
20-1000 |
3-7 |
|
40x2500 |
40 |
2500 |
30′-4° |
20-1000 |
4-8 |
QC11Y oil tank power and dimensions
The same 31 Q11Y/K source model suffixes. Dimensions are reproduced in the catalogue order.
|
Model suffix |
Oil tank |
Main power |
Overall dimensions |
|
6x2500 |
300 |
7.5 |
3200 x 1950 x 2050 |
|
6x3200 |
300 |
7.5 |
3900 x 1950 x 2075 |
|
6x4000 |
340 |
7.5 |
4640 x 2000 x 2100 |
|
6x5000 |
340 |
15 |
5780 x 2100 x 2380 |
|
6x6000 |
340 |
15 |
6750 x 2200 x 2500 |
|
8x2500 |
300 |
11 |
3150 x 1970 x 2055 |
|
8x3200 |
300 |
11 |
3850 x 2050 x 2100 |
|
8x4000 |
340 |
15 |
4650 x 2100 x 2400 |
|
8x5000 |
350 |
15 |
5700 x 1950 x 2600 |
|
8x6000 |
580 |
18.5 |
6750 x 2250 x 2615 |
|
13x2500 |
405 |
22 |
3250 x 1950 x 2110 |
|
13x3200 |
405 |
22 |
3900 x 2070 x 2315 |
|
13x4000 |
405 |
22 |
4800 x 2150 x 2460 |
|
13x5000 |
505 |
22 |
5800 x 2270 x 2800 |
|
13x6000 |
1020 |
30 |
6950 x 2450 x 3050 |
|
16x2500 |
475 |
22 |
3280 x 2020 x 2270 |
|
16x3200 |
475 |
22 |
3950 x 2150 x 2450 |
|
16x4000 |
595 |
22 |
4800 x 2130 x 2550 |
|
16x6000 |
1020 |
37 |
7000 x 2500 x 3000 |
|
16x8000 |
2060 |
45 |
9050 x 3180 x 3500 |
|
20x2500 |
510 |
30 |
3200 x 2220 x 2520 |
|
20x3200 |
510 |
30 |
3950 x 2150 x 2600 |
|
20x4000 |
640 |
37 |
4750 x 2400 x 2900 |
|
20x6000 |
1500 |
2 x 30 |
7000 x 2850 x 3350 |
|
25x2500 |
750 |
37 |
3270 x 2000 x 2650 |
|
25x3200 |
820 |
37 |
3970 x 2200 x 2670 |
|
25x4000 |
1200 |
45 |
4900 x 2800 x 3190 |
|
30x2500 |
780 |
45 |
3450 x 2500 x 2900 |
|
30x3200 |
1000 |
55 |
4150 x 2700 x 2850 |
|
30x4000 |
1400 |
55 |
5200 x 2600 x 3350 |
|
40x2500 |
1370 |
55 |
4000 x 2950 x 3150 |
