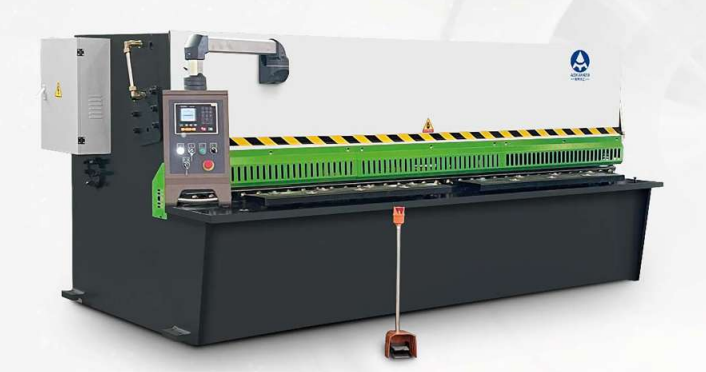

QC12Y Hydraulic Swing Beam Shearing Machine
Hydraulic swing-beam shearing machine for sheet and plate cutting, with welded steel construction, nitrogen-cylinder return, an illuminated cutting line and a controlled backgauge. Model-specific capacities span 4 to 40 mm cutting thickness and 2500 to 6000 mm cutting length.
Features
- Welded steel plate structure
- Hydraulic transmission with nitrogen-cylinder return
- Quick blade-gap adjustment
- Illuminated cutting line
- Stepless adjustment of upper blade travel
- Fence-type safety guard
- CNC backgauge system described as low-noise and high-precision
Standard configuration
Built-in spring pressure cylinders; Steel ball worktable supports; Squaring arm and front support arms; Bosch-Rexroth hydraulic valve group; EMB tubing connectors; Siemens main motor; Schneider electrical components; Manual blade-clearance adjustment; One set of upper and lower 6CrW2Si blades.
Controller options
The catalogue presents the following controller choices. The selected controller, enabled functions and installed axes must match the ordered machine configuration.
Estun E21s
Backgauge and block control; Control for general AC motors and frequency inverter; Intelligent positioning; Stock counter; Holding/decompression time setting; Up to 40 programs; Up to 25 steps per program; One-side positioning; Retract function; One-key parameter backup and restore; mm/inch units; Chinese/English language selection.
DAC-310T
Panel-based housing; Bright LCD screen; Backgauge control; Retract function; Cutting-angle or gap control; Stroke-length limitation; Manual movement of axes; Stock count.
QC12Y cutting and backgauge specifications
All 38 swing-beam shear rows use the prefix QC12Y/K. For example, suffix 4x2500 identifies QC12Y/K 4x2500. The strength column is ≤450 for every row, with the unverified source unit KN/CM.
|
Model suffix |
Thickness |
Cutting length |
Cutting angle |
Backgauge range |
Strokes |
|
4x2500 |
4 |
2500 |
1°30′ |
20-500 |
16 |
|
4x3200 |
4 |
3200 |
1°30′ |
20-500 |
13 |
|
4x4000 |
4 |
4000 |
1°30′ |
20-600 |
10 |
|
4x6000 |
4 |
6000 |
1°30′ |
20-800 |
5 |
|
6x2500 |
6 |
2500 |
1°30′ |
20-500 |
15 |
|
6x3200 |
6 |
3200 |
1°30′ |
20-500 |
12 |
|
6x4000 |
6 |
4000 |
1°30′ |
20-600 |
9 |
|
6x5000 |
6 |
5000 |
1°30′ |
20-600 |
8 |
|
6x6000 |
6 |
6000 |
1°30′ |
20-800 |
5 |
|
8x2500 |
8 |
2500 |
1°30′ |
20-500 |
11 |
|
8x3200 |
8 |
3200 |
1°30′ |
20-500 |
8 |
|
8x4000 |
8 |
4000 |
1°30′ |
20-600 |
8 |
|
8x5000 |
8 |
5000 |
1°30′ |
20-600 |
8 |
|
8x6000 |
8 |
6000 |
1°30′ |
20-800 |
8 |
|
10x2500 |
10 |
2500 |
1°30′ |
20-500 |
10 |
|
10x3200 |
10 |
3200 |
1°30′ |
20-500 |
10 |
|
10x4000 |
10 |
4000 |
1°30′ |
20-600 |
10 |
|
10x6000 |
10 |
6000 |
1°30′ |
20-800 |
10 |
|
12x2500 |
12 |
2500 |
2° |
20-600 |
12 |
|
12x3200 |
12 |
3200 |
2° |
20-600 |
10 |
|
12x4000 |
12 |
4000 |
2° |
20-600 |
10 |
|
12x5000 |
12 |
5000 |
2° |
20-600 |
6 |
|
12x6000 |
12 |
6000 |
2° |
20-1000 |
5 |
|
16x2500 |
16 |
2500 |
2°30′ |
20-600 |
10 |
|
16x3200 |
16 |
3200 |
2°30′ |
20-600 |
10 |
|
16x4000 |
16 |
4000 |
2°30′ |
20-800 |
10 |
|
16x5000 |
16 |
5000 |
2° |
20-1000 |
6 |
|
16x6000 |
16 |
6000 |
2° |
20-1000 |
5 |
|
20x2500 |
20 |
2500 |
3° |
20-800 |
8 |
|
20x3200 |
20 |
3200 |
3° |
20-800 |
8 |
|
20x4000 |
20 |
4000 |
3° |
20-100* |
5 |
|
20x6000 |
20 |
6000 |
3° |
20-1000 |
4 |
|
25x2500 |
25 |
2500 |
3° |
20-1000 |
8 |
|
25x3200 |
25 |
3200 |
3° |
20-1000 |
5 |
|
30x2500 |
30 |
2500 |
3° |
20-1000 |
4 |
|
30x3200 |
30 |
3200 |
3°30′ |
20-1000 |
4 |
|
40x2500 |
40 |
2500 |
4° |
20-1000 |
3 |
|
40x3200 |
40 |
3200 |
4° |
20-1000 |
3 |
QC12Y power and overall dimensions
The same 38 QC12Y/K model suffixes. Dimensions are length x width x height.
|
Model suffix |
Main motor |
Overall dimensions |
|
4x2500 |
5.5 |
3040 x 1550 x 1550 |
|
4x3200 |
5.5 |
3840 x 1550 x 1550 |
|
4x4000 |
5.5 |
4600 x 1700 x 1700 |
|
4x6000 |
7.5 |
6460 x 2100 x 3200 |
|
6x2500 |
7.5 |
3040 x 1710 x 1620 |
|
6x3200 |
7.5 |
3840 x 1710 x 1620 |
|
6x4000 |
7.5 |
4620 x 1850 x 1700 |
|
6x5000 |
7.5 |
5410 x 1710 x 1620 |
|
6x6000 |
11 |
6480 x 2100 x 2300 |
|
8x2500 |
7.5 |
3040 x 1700 x 1700 |
|
8x3200 |
7.5 |
3860 x 1700 x 1700 |
|
8x4000 |
7.5 |
4640 x 1700 x 1700 |
|
8x5000 |
7.5 |
5400 x 2400 x 2000 |
|
8x6000 |
11 |
6480 x 2100 x 2350 |
|
10x2500 |
11 |
3040 x 1800 x 1700 |
|
10x3200 |
11 |
3860 x 2000 x 1700 |
|
10x4000 |
11 |
4650 x 2100 x 2000 |
|
10x6000 |
15 |
6500 x 2100 x 2300 |
|
12x2500 |
18.5 |
3140 x 2050 x 2000 |
|
12x3200 |
18.5 |
3880 x 2150 x 2000 |
|
12x4000 |
18.5 |
4680 x 2150 x 2100 |
|
12x5000 |
18.5 |
3245 x 1900 x 1900** |
|
12x6000 |
18.5 |
6900 x 2600 x 2700 |
|
16x2500 |
185* |
3140 x 2150 x 2000 |
|
16x3200 |
18.5 |
3880 x 2150 x 2000 |
|
16x4000 |
18.5 |
4650 x 2150 x 2200 |
|
16x5000 |
18.5 |
5900 x 2600 x 2700 |
|
16x6000 |
22 |
6900 x 2700 x 2700 |
|
20x2500 |
22 |
3440 x 2300 x 2500 |
|
20x3200 |
22 |
4150 x 2350 x 2700 |
|
20x4000 |
22 |
4850 x 2600 x 2400 |
|
20x6000 |
22 |
6700 x 3000 x 3000 |
|
25x2500 |
37 |
3200 x 2700 x 2900 |
|
25x3200 |
37 |
4200 x 2400 x 2500 |
|
30x2500 |
37 |
3300 x 2900 x 3000 |
|
30x3200 |
40 |
4200 x 2500 x 2600 |
|
40x2500 |
75 |
3200 x 3300 x 3200 |
|
40x3200 |
90 |
4300 x 3300 x 3000 |
