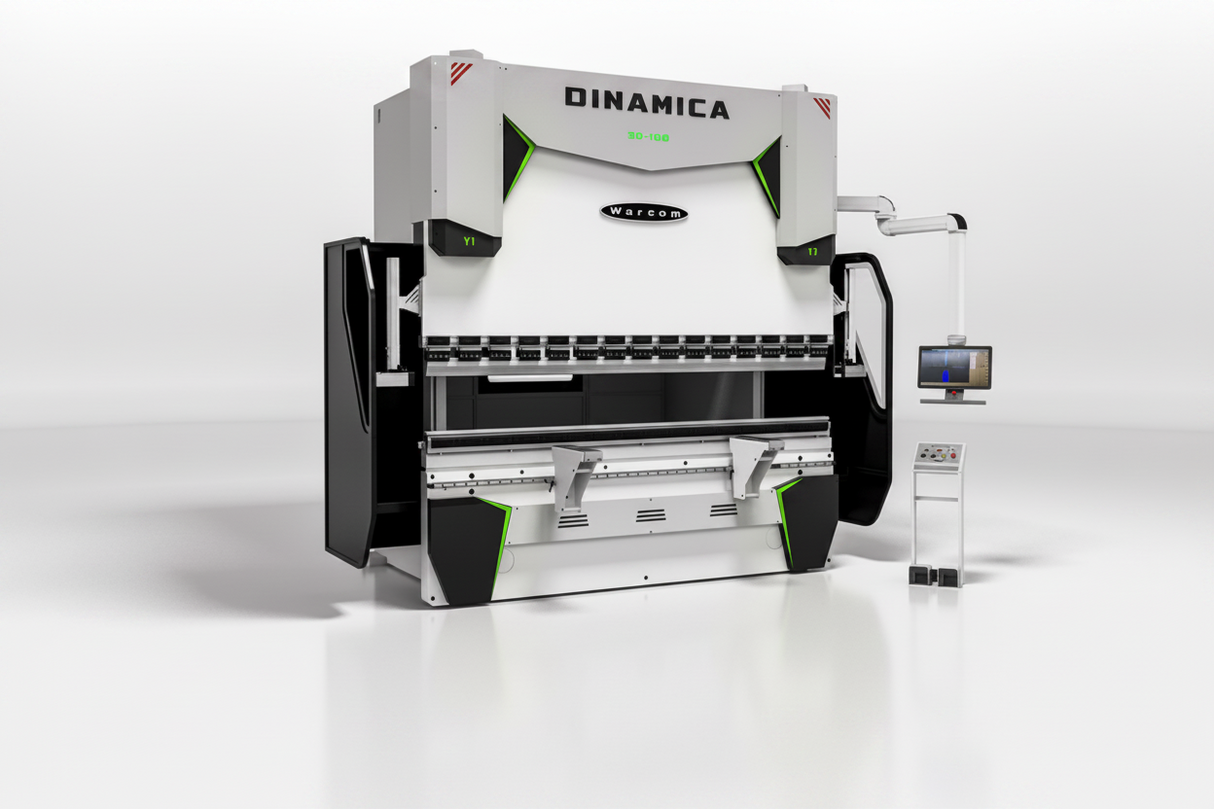

Warcom Dinamica 60-30 CNC Hydraulic Press Brake
$0.00
Unit price
/
Unavailable
The Warcom Dinamica 60-30 is a high-performance CNC hydraulic press brake engineered for precision sheet metal fabrication. Featuring an ESA S875 21-inch touchscreen CNC control, 4-axis (Y1-Y2-X-R) operation, motorized X-R backgauge, hydraulic crowning, and the latest Lazer Safe safety system, this machine provides exceptional bending accuracy, repeatability, and operator safety.
Designed for demanding fabrication environments, the Dinamica 60-30 combines robust construction with advanced hydraulic technology to maximize productivity and precision.
Specifications
| Specification | Value |
|---|---|
| Manufacturer | Warcom |
| Model | Dinamica 60-30 |
| Machine Type | CNC Hydraulic Press Brake |
| Capacity | 60 Ton |
| Maximum Bending Length | 3200 mm |
| Distance Between Frames | 2550 mm |
| Throat Depth | 500 mm |
| Daylight Opening | 500 mm |
| Ram Stroke | 300 mm |
| X-Axis Travel | 600 mm |
| R-Axis Travel | 150 mm |
| Y-Axis Positioning Accuracy | ±0.01 mm |
| X-Axis Positioning Accuracy | ±0.1 mm |
| Approach Speed | 200 mm/sec |
| Bending Speed | 10 mm/sec |
| Return Speed | 180 mm/sec |
| Main Motor | 7.5 kW |
| Hydraulic Oil Tank Capacity | 115 L |
| Maximum Oil Temperature | 45°C |
| Electrical Supply | 400 V |
| Frequency | 50 Hz |
| Power Requirement | 3 Phase (N+M) |
| Approximate Weight | 8,000 kg |
| Machine Color | RAL 7035 (Warcom Grey) |
Standard Features
- 4-Axis CNC (Y1-Y2-X-R)
- ESA S875 21" Touchscreen CNC Controller
- Talento Touchscreen Control
- Motorized X-R Backgauge
- Digital CAN BUS Motors
- Two Manual Backgauge Finger Stops
- Manual PROMECAM Upper Tool Clamping
- Manual PROMECAM Lower Tool Clamping
- Twin Roll Ram Guiding
- DCS PLUS Dynamic Hydraulic Crowning Unit
- Heat Exchanger
- Low Noise Hydraulic Pump
- Two Height Adjustable Front Support Arms
- Linear Guide Front Supports
- Anti-Scratch Support Material
- Side Parking for Front Supports
- Latest Generation Lazer Safe Safety System
- Adjustable LED Front Working Light
- CSA Compliant
Machine Does Not Include
- Bending tools
- First hydraulic oil fill
CNC Control
- ESA S875
- Talento 21-inch Touchscreen
- 4-Axis Control
- Y1
- Y2
- X
- R
Backgauge
- Motorized X-R Backgauge
- Digital CAN BUS Motors
- Two Manual Finger Stops
- 600 mm X-Axis Travel
- 150 mm R-Axis Travel
Safety Features
- Latest Generation Lazer Safe Safety System
- Adjustable LED Front Working Light
- DCS PLUS Dynamic Hydraulic Crowning
- Heat Exchanger
- Low Noise Hydraulic Pump
- CSA Certified
Electrical Requirements
- 400 Volt
- 50 Hz
- 3 Phase
Approximate Machine Weight
8,000 kg
Available Optional Upgrades
- 6-Axis Configuration (Y1-Y2-X-R-Z1-Z2)
- 7-Axis Configuration with X5 Conical Bending
- 8-Axis Configuration with X5-X6 Conical Bending
- Pneumatic Tool Clamping (Promecam)
- Pneumatic Die Clamping
- Wila Hydraulic Tool Clamping
- Standard Tool Package
- Wila Tool Package
- Lazer Safe Motorized Safety System
- Lazer Safe IRIS Fast Bend
- Lazer Safe Angle Measurement System
- DATA M Copra Laser Check 6G
- Autopol 3D Offline Programming Software
- Wireless Digital Protractor
- Programmable LED Tool Station Indicator
Ideal Applications
- Precision Sheet Metal Fabrication
- Industrial Metal Forming
- Electrical Enclosures
- HVAC Manufacturing
- Stainless Steel Fabrication
- Agricultural Equipment
- Automotive Components
- General Manufacturing
