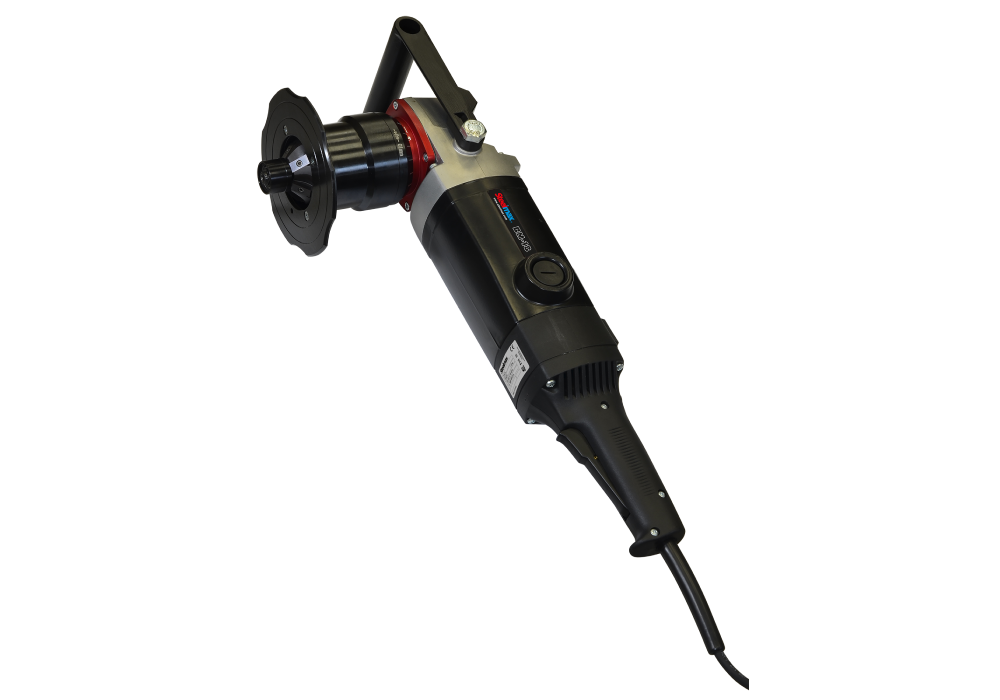

0.687″ Portable Shape Beveler

Manufacturer: Steelmax

Model: BM18


Quote Request

 Thank you for your quote request, we will be in touch shortly.

The Steelmax BM18 is a light weight portable beveling machine for use on flat, curved or rolled plate. It can also perform OD and ID bevels on pipe, including deburring, and can chamfer and countersink holes with a minimum diameter of 1-9/16″ (40 mm). Interchangeable bevel milling heads, utilizing indexable carbide inserts, are available for bevel angles of 22.5°, 30°, 37.5°, 45° and 60°.  A radius milling head is also available with indexable carbide inserts to radius plate edges with a perfect 2, 3, 4 and 5 mm radius.

The BM18 is equipped with a simple bevel depth adjustment, overload protection and electronic speed control for use on a variety of materials, including steel and aluminum. The BM18 beveler is highly efficient for edge weld preparation and for producing radiused plate edges for optimal paint and coating adhesion. The compact design makes the BM18 an excellent tool for many fabrication applications.

Standard Features

·         Highly-efficient beveling machine – up to 10 times faster than grinding

·         Produces no hazardous dust, greatly improving working environment

·         Guide plate and roller guides insure consistent, highly accurate bevel angles

·         Lightweight ergonomic design reduces worker fatigue

·         Variable speed control permits adjustment of milling head for use on various grades of steel and aluminum

·         Versatile tool which can be used to bevel or radius mill straight edges, contours and holes

·         Ideal solution for radius milling for paint and coating preparation

·         Optional anti-abrasion plate and special inserts available for aluminum milling

Specifications and Capacities
Part Number SM-BM18 (110-120V/50-60Hz)
SM-BM18-230 (220-240V/50-60Hz)
Power Supply 110-120V/50-60Hz or 220-240V/50-60Hz
Motor 2200W 3.0 HP
Motor speed (without load) 1800 – 5850 rpm
Maximum bevel width b=11/16? (18 mm) see figure 1
Bevel angles depending on milling head 22.5, 30, 37.5, 45, 60, degrees
Min. material thickness 1/8? (1.5 mm)
Min. diameter of countersink ca 1-9/16? (40 mm)
Beveling with radius R2, R3, R4, R5 see figure 2
Dimensions (L x W x H) 23? x 6.1? x 9.4? (585 x 156 x 238 mm)
Weight (without milling head) 22 lbs (10 kg)
