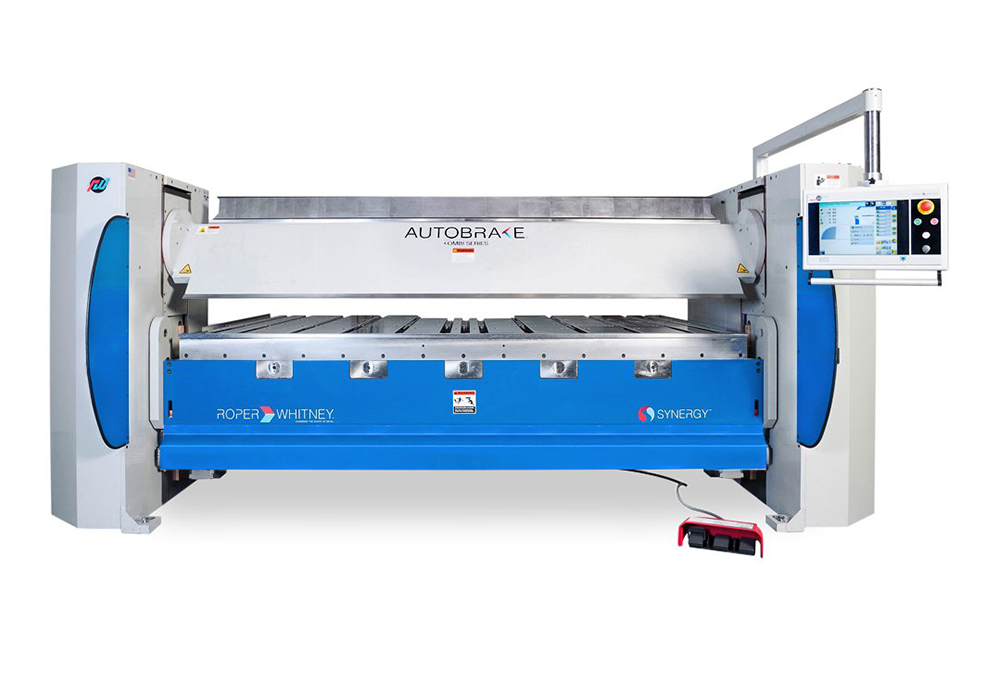

10 Foot 10 Gauge Automatic Kombi Beam Folding Brake
The Roper Whitney AB1010K Autobrake provides accuracy and repeatability when forming up to 10ft long 10 gauge or lighter materials. This sheet metal brake is a high speed solution to make multiple bends.
This machine incorporates a rotating Kombi beam making this machine even more versatile, this unique tooling assembly adds to the machine’s straight and box folding capabilities to produce more complex shapes in less time.
The backgauge provides accurate part location through the use of servo drives and are expandable with optional backgauge extensions. The rigid design includes crowning adjustments to ensure accurate bending regardless of raw material stresses. Various options of tooling are provided to help customize to your specific needs, and can be provided in tool steel or hardened.
Standard Features
- 30° Clamping Beam
- 4” Kombi Box Tooling
- Manual Crowning Adjustments
- 61” Backgauge
- Spring Steel Backgauge Fingers
- 15” Touchscreen Monitor with Synergy Control
- Konnect Software Package (Included While Under Warranty)
Specifications and Capacities
|
Bending capacity (Mild Steel) |
10 ga/ 3,5 mm |
|
Bending capacity (Stainless) |
14 ga/ 2,0 mm |
|
Bending length |
126 in/ 3200 mm |
|
Bending bars |
0.472 in/ 12 mm, 1.378 in/ 35 mm |
|
Back gauge depth (standard) |
61 in/ 1550 m |
|
Clamping beam opening height |
7.9 in/ 200.4 mm |
|
Clamping beam straight bar tooling |
30 degrees |
|
Folding beam adjustment |
3.14 in/ 80 mm |
|
Crowning of the folding beam |
5-point 0" – .030" adjustment |
|
Working height |
35 in/ 889 mm |
|
Machine weight |
13,500 lbs/ 6,136 kg |
|
Back gauge servo motor |
3/4 hp |
|
Clamping beam motor |
4 hp/ 3 kw |
|
Bending beam motor |
Dual 4 hp/ 3 kw |
|
Max. Box Depth |
6.3 in/ 160 mm |
