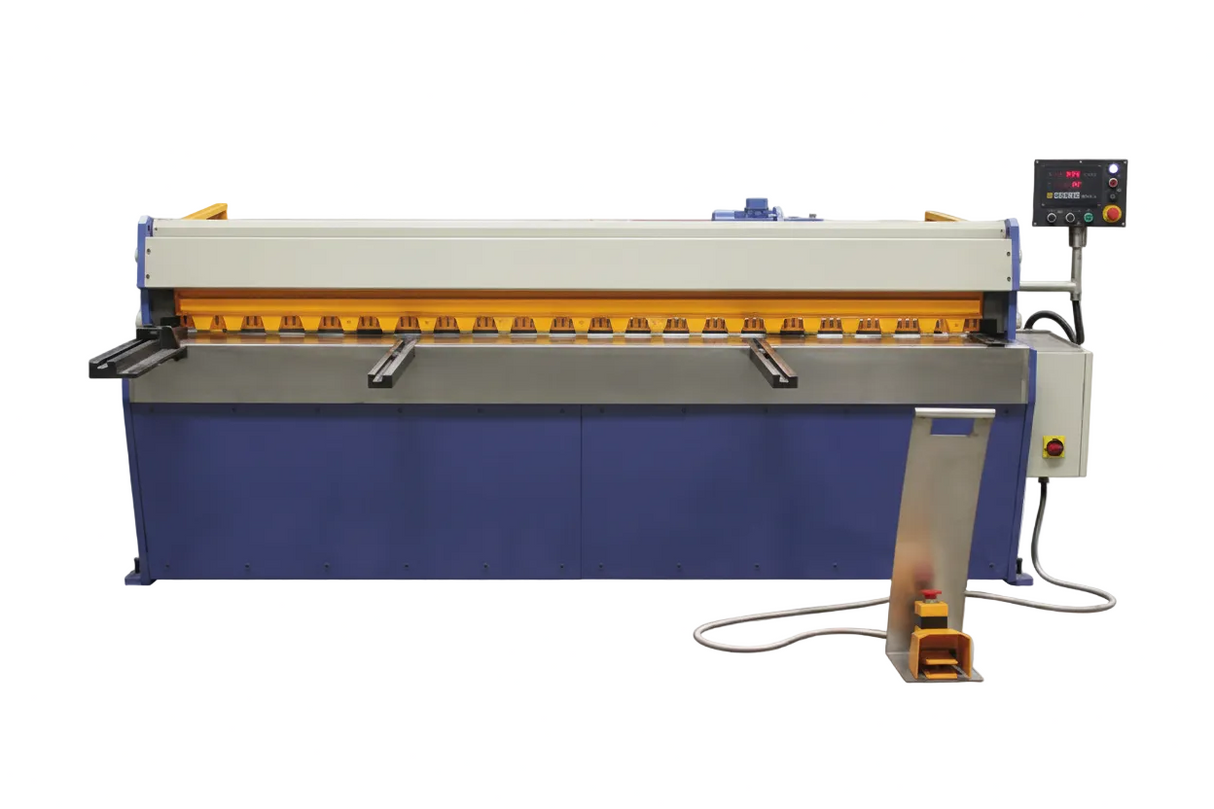

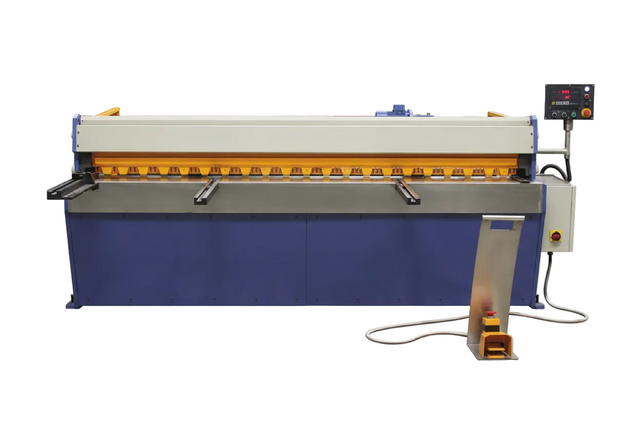

BM11D-4X51 Mechanical Guillotine Shear

The BM11D-4X51 Mechanical Guillotine Shear is a high-precision sheet metal cutting machine designed for efficient, accurate, and repeatable cutting operations. Built with a rigid welded structure and advanced mechanical drive system, it delivers reliable performance for both ferrous and non-ferrous materials.

This model is ideal for fabrication shops, HVAC production, and general sheet metal processing.

Key Features

• European-style streamlined design for durability and precision
• High-accuracy cutting with vibration stress-relieved frame
• Low cutting angle reduces material distortion
• Manual quick-set blade clearance adjustment
• NC-controlled back gauge for repeatable accuracy
• Foot pedal operation for single and continuous cuts
• Silent direct-drive system with brake motor
• CE certified and ISO-compliant build quality
• Safety guard and emergency stop system included

Technical Specifications

• Maximum Cutting Thickness: 0.16" (4 mm)
• Cutting Length: 51.18" (1300 mm)
• Cutting Angle: 1°45′
• Strokes Per Minute: 55
• Back Gauge Range: 0 – 25.6" (650 mm)
• Table Height: 31.5" (800 mm)
• Motor Power: 7.5 kW
• Net Weight: 4,739 lbs (2150 kg)

Machine Dimensions

• Length: 104.33" (2650 mm)
• Width: 87.0" (2210 mm)
• Height: 49.2" (1250 mm)

Standard Equipment

• E10s NC back gauge system
• High chrome D2 blades
• Large working table
• Foot pedal control
• Safety guarding system
