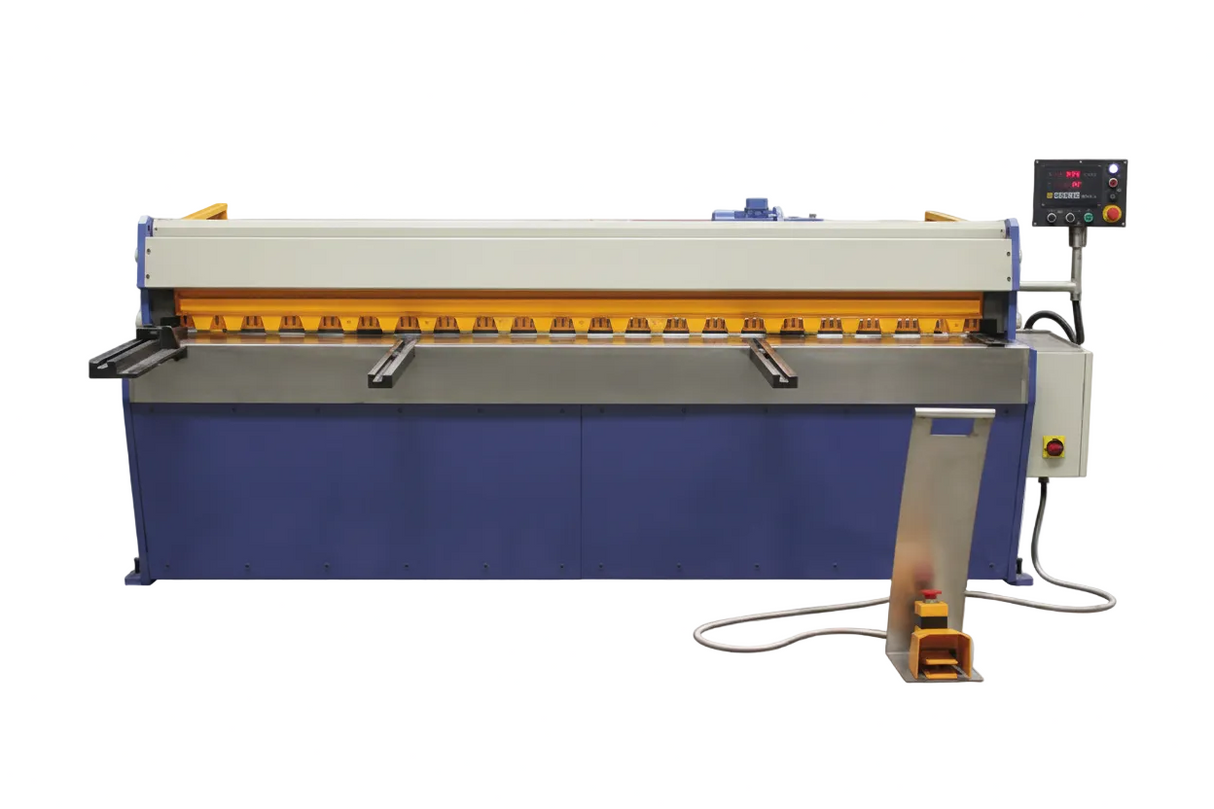

BM11D-4X98 Mechanical Guillotine Shear

The BM11D-4X98 Mechanical Guillotine Shear is a high-performance sheet metal cutting machine designed for precision, durability, and efficient production. Built with a welded steel frame and advanced mechanical drive system, it delivers accurate cuts with minimal material distortion.

This model is ideal for handling longer sheets while maintaining consistent cutting quality in industrial environments.

Key Features

• Heavy-duty welded steel construction with stress relief
• European design for precision cutting performance
• Low cutting angle reduces twisting and deformation
• Manual quick-set blade clearance adjustment
• NC-controlled back gauge for repeatable accuracy
• Silent direct-drive system with brake motor
• Foot pedal operation for single and continuous cutting
• High productivity with low energy consumption
• CE certified with full safety guarding system

Technical Specifications

• Maximum Cutting Thickness: 0.16" (4 mm)
• Cutting Length: 98.43" (2500 mm)
• Cutting Angle: 1°20′
• Strokes Per Minute: 55
• Back Gauge Range: 0 – 25.6" (650 mm)
• Table Height: 31.5" (800 mm)
• Motor Power: 7.5 kW
• Power Supply: 380V / 50Hz
• Net Weight: 4,850 lbs (2200 kg)

Machine Dimensions

• Length: 123.0" (3124 mm)
• Width: 87.0" (2210 mm)
• Height: 46.5" (1180 mm)

Standard Equipment

• E10s NC back gauge system
• High chrome D2 cutting blades
• Large working table
• Foot pedal control
• Safety guard with interlock system
• Emergency stop system
