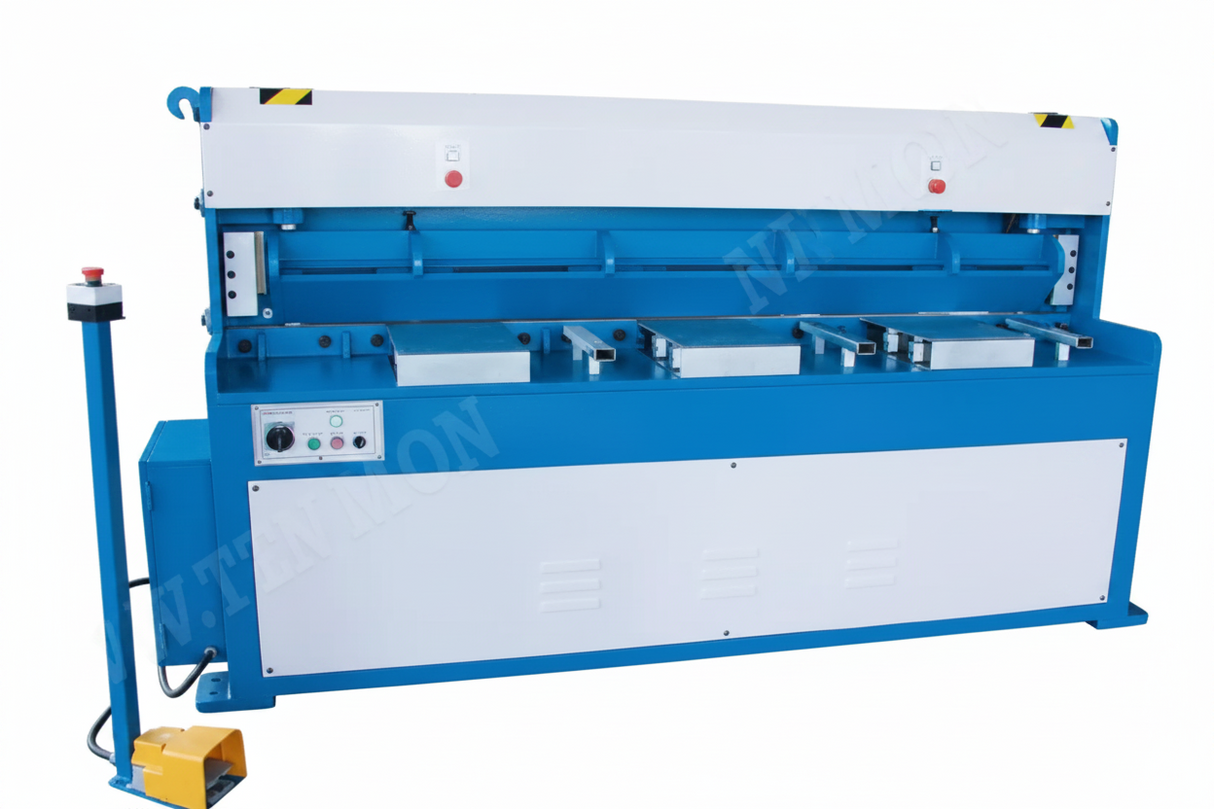

BM11E-1300×6.5 Hydraulic Shearing Machine
$0.00
Unit price
/
Unavailable
The BM11E-1300×6.5 Hydraulic Shearing Machine is designed for precision cutting of sheet metal, offering reliable performance for light to medium-duty fabrication shops. It features a hydraulic drive system, adjustable cutting angle, and quick blade clearance adjustment for efficient and accurate shearing.
Key Features
- Hydraulic-driven system for smooth and consistent cutting
- Adjustable cutting angle to minimize sheet distortion
- Quick-set blade clearance adjustment for ease of operation
- Rolling ball worktable for improved material handling
- Durable construction suitable for sheet and non-ferrous metals
- Optional CNC back gauge system for enhanced precision
Specifications
| Parameter | Value |
|---|---|
| Max Cutting Thickness | 0.26" (6.5 mm) |
| Max Cutting Width | 51.2" (1300 mm) |
| Cutting Angle | 2.5° |
| Strokes per Minute | 20 |
| Motor Power | 7.4 HP (5.5 kW) |
| Back Gauge Range | 24.8" (630 mm) – Electric |
| Machine Dimensions (L×W×H) | 84.6" × 68.9" × 71.3" |
| Net Weight | 5,445 lbs |
| Gross Weight | 5,887 lbs |
Optional Configurations
- CNC back gauge system
- Extended support table
- Custom blade configurations
