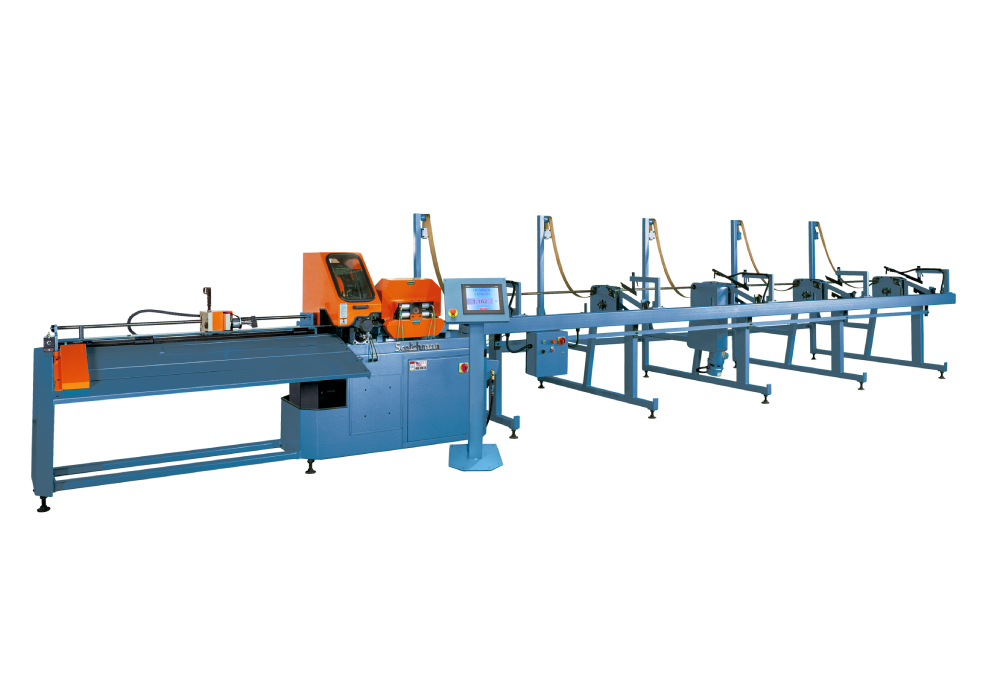

12.5" Blade Automatic Roller Feed Cold Saw

Manufacturer: Scotchman

Model: CPO 315 RFA


Quote Request

 Thank you for your quote request, we will be in touch shortly.

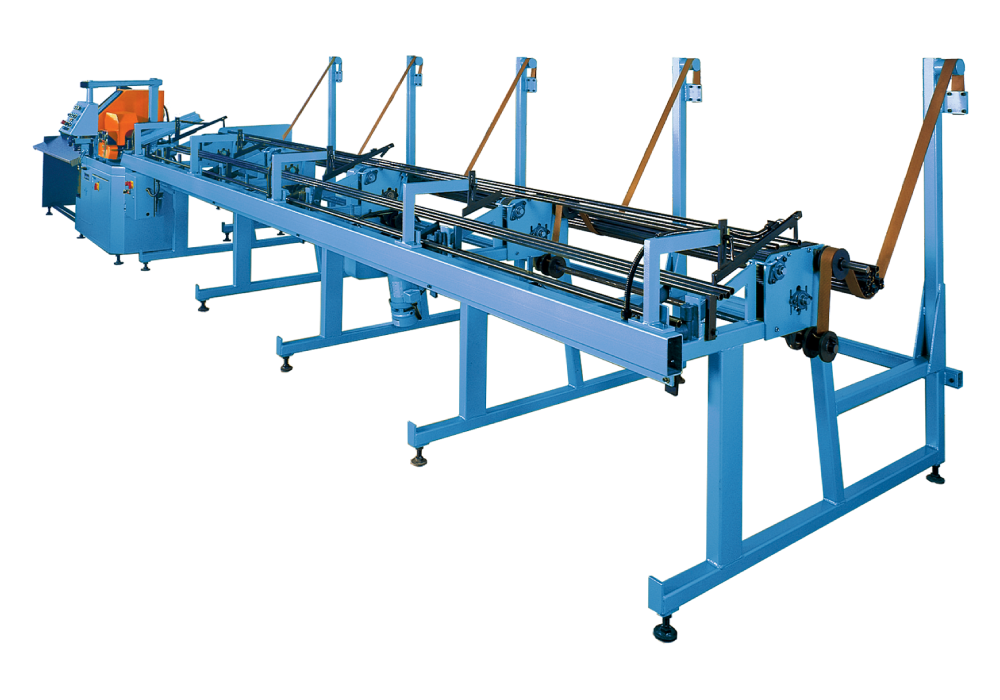

The Scotchman CPO 315 RFA is a fully automatic cold saw that provides uninterrupted cutting on tubes, solids, and extrusions. This machine comes equipped with a standard supply table that accepts raw stock loading of material lengths from 30 inches up to 24 feet. It allows the saw to automatically load, trim, cut and sort lengths up to 120″.

Touch screen controls make the saw simple to operate, with the ability to store profile settings such as speeds & feeds, which make changing material sizes faster.  This machine is ideal for high volume and long length applications.

With optional equipment you can feed directly into a deburring machine or acquire form jaws that can handle thin wall applications without distortion.

The CPO 315 RFA is backed by a 2-Year parts warranty.

Standard Features
  • Fully Automatic Cycle
  • Touch Screen Controls Actuate the Complete Cycle
  • Automatic Loading of each New Bar
  • Automatic Trim Cut of each New Bar
  • Automatic Tube Ejection
  • Clamping Both Sides of Blade - Highest Quality, Burr-Free Cuts
  • 5 H.P. Variable RPM Speed Control
  • Interlocking Safety Hood
  • Blade Guides for Accurate Tolerances
  • Trim and Remnant Gate
  • Adjustable Stroke Control on the Saw Head for Feed Rate
  • Piece Counter
  • Length Scale in both Inches and Metric
  • Digital Read-out for Quick and Easy Fine Adjustment of Length Setting
  • Standard table takes up to 24' Material
  • Automatic De-Scrambler
  • Mist Coolant System
  • One Saw Blade
  • One Gallon Concentrated Coolant
  • Warranty: Two Years on Parts
  • Made in USA
Specifications and Capacities

Cutting Speeds Based on Mild Steel

CPO 315 RFA/ST CPO 315 RFA/ST NF

Variable Speed 11 to 177 rpm 3,000 rpm

Cutting Capacities Based on Mild Steel

Round Tube

  Round Solid

Square Tube

Square Solid

3" (76 mm)

1-3/4" (44.5 mm)

3" x 3" (76 x 76 mm)

1-1/2" x 1-1/2" (37 x 37 mm)

Length Tolerance

+ or - 0.006 repeatability

Minimum Cut Length

1-1/2"

Maximum Cut Length

60" (90"or 120" Available)

Motor HP Ferrous Models

5 hp

Motor HP Non-Ferrous Models

5 hp

Power Supply

208/230/460 3 Phase (must specify voltage)

Air Pressure

90 lbs. Minimum

Squareness Tolerance

+ or - .002 per Diameter Inch

Maximum Saw Blade

12-1/2" (315 mm)

Arbor Bore Size

40 mm

Pin Spacing

4/12/64

Supply Table Maximum Raw Stock

24'

Supply Table Width:

24"

Dimensions

L-384" x W-46" x H-63"

Shipping Weight

2,745 lbs.

(1,245 kg)
