5" Automatic CNC Mandrel Tube Bender
$0.00
Unit price
/
Unavailable
Description

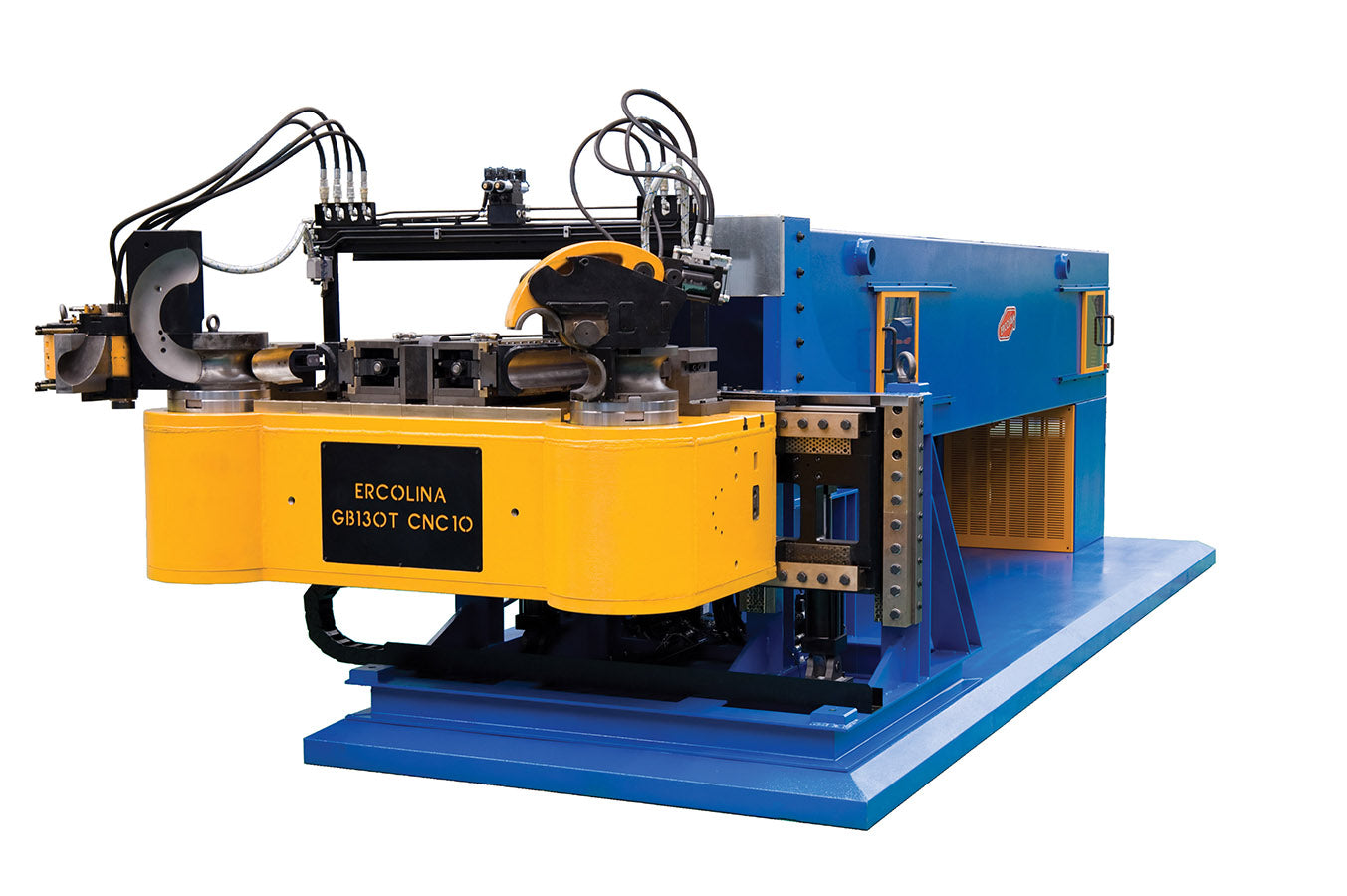

Ercolina’s GB130 CNC mandrel bender is ideal for industrial bending of tube, pipe, square and rectangular profiles to a center line radius as tight as 1.5 x diameter. Large radii tooling available to 18″ CLR.Standard Features
- Mild steel tube capacity 5″ (.196 wall)
- Stainless tube capacity 5″ (.150 wall)
- Square tube capacity 4″ (.160 wall)
- Minimum tube capacity 1-1/2″
- Maximum pipe capacity 4″ Sch. 40
- Interactive PLC touch screen offers easy access to auto and manual operating modes, system diagnostics and multiple language capability
- Programmable bend angles with independent material springback setting for each bend
- Programmable auto mandrel positioning allows operator to optimize extraction for improved bend quality
- Programmable clamping, pressure die and boost movements with manual override
- USB for unlimited program memory storage and communication
- Precision encoders on each axis
- Touch screen displays absolute (ABS) or incremental (INC) positioning with inch or metric readout
- Programmable tail stock interference zone monitors position and eliminates workhead collision
- Standard hydraulic ports accept Ercolina’s patented (KST) clam shell clamp system
- Accepts YBC and XYZ input values
- Y – Feeding Hydraulic
- B – Feeding Hydraulic
- C – Bending Hydraulic CNC
Specifications and Capacities
- Tube Capacity – Mild Steel 5″ (.196 wall), Stainless 5″ (.150 wall), Square Tube 4″ (.160 wall)
- Pipe Capacity 4″ Sch. 40
- Bending Radius 18″
- Bending Radius 3.125″
- Tube Inside Carriage 5″
- Length Through Carriage 236″
- Length in Carriage 177″
- Interactive Control 10″ touch screen color
- Number of Programs Unlimited w/USB
- Bend Direction CCW
- “Y” Axis Speed (ft/min) 164
- “B” Rotation Speed (RPM) 30
- “C” Bend Speed (RPM) 2
- “Y” Axis ± .2mm
- “C” Axis ± .5mm
- Power Three Phase 480V
- Dimensions (Height x Width x Length) 71″ x 75″ x 319″
- Weight (Dry) 18,000 lbs.
