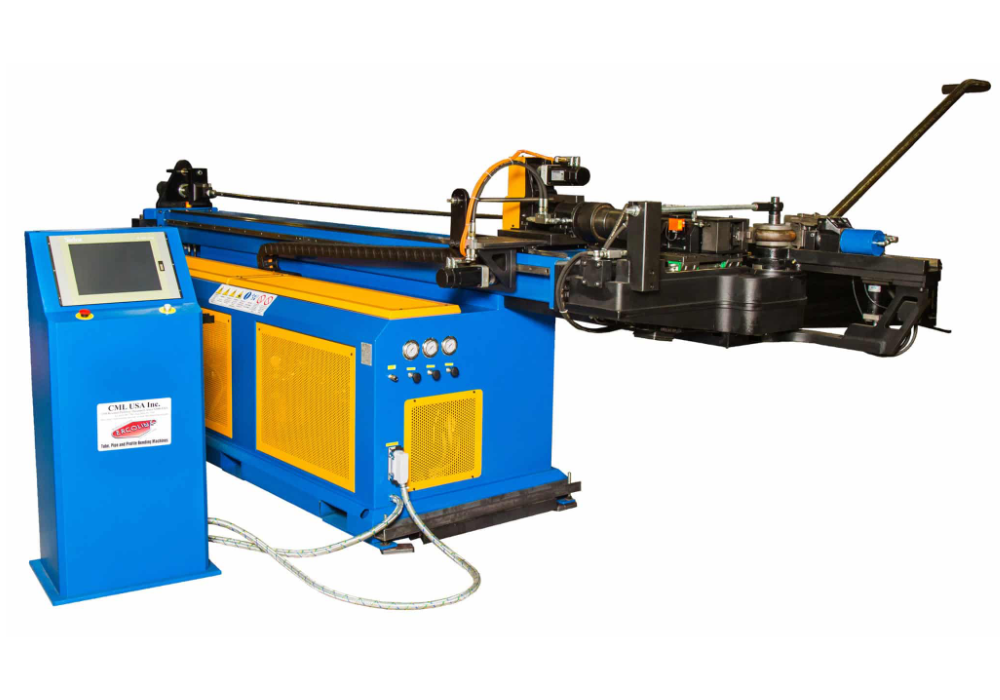

3" Automatic CNC Mandrel Tube Bender

Manufacturer: Ercolina

Model: 76CNC6V5


Obtain quality repeatable bends in steel, stainless, aluminum, titanium and brass with Ercolina’s Erco Bender 76 Mandrel Bender. Ercolina’s model EB76 – 3 Axis mandrel bender has an extended bending head capable of bending complex shapes and profiles.

Standard Features
  • Mild steel tube capacity 3″ (.083 wall)
  • Stainless tube capacity 3″ (.065 wall)
  • Square tube capacity 2″ (.065 wall)
  • Maximum pipe capacity 2″ Sch. 40
  • Stainless tube capacity 2" (.065 wall)
  • Maximum pipe capacity 1-1/2" Sch. 40
  • Automatic or manual bend sequencing
  • Independent pressure and clamp die adjustment
  • Programmable carriage movement for tight radii
  • Standard right hand bending direction
  • Interactive touch screen with auto and manual operating modes, system diagnostics and multiple language capability
  • Programmable material springback settings for each bend angle
  • USB for unlimited program memory storage
  • Displays absolute (ABS) or incremental (INC) positioning with inch or metric readout
  • Optional file importation of IGES and DXF files - consult Ercolina for details and pricing
  • Accepts YBC and XYZ input values
  • Y - Feeding Electric Servo
  • B - Rotation Electric Servo
  • C - Bending Hydraulic CNC
Specifications and Capacities
  • Max. Tube Capacity –  Mild Steel 2½″ (.083 wall), Stainless 2½″ (.065 wall)
  • Pipe Capacity 1½″ Sch. 40
  • Max. Bending Radius 9.8″
  • Min. Bending Radius 1.5 x Ø
  • Max. Shaft Rotation 210°
  • Max. Bending Angle 185°
  • Max. Tailstock Capacity 2½″
  • Interactive Touch Screen Control 10″ color screen
  • Max. Material Length –  Standard table 13′
  • Optional Table Extension  21′
  • Minimum Underhead Swing Clearance 14.5″
  • Length of Bending Head  59″
  • Maximum Carriage Travel  125″
  • Number of Programs  Unlimited
  • Precision of Bend Angle  +/- .5°
  • Power  Three Phase 480V
  • Dimensions (Height x Width x Length) 52″ x 44″ x 205″
  • Weight  7,200 lbs
