4" Tube & Angle Roller w/ Anti-Twist System

Manufacturer: Ercolina

Model: CE100H3-RLI


Quote Request

 Thank you for your quote request, we will be in touch shortly.

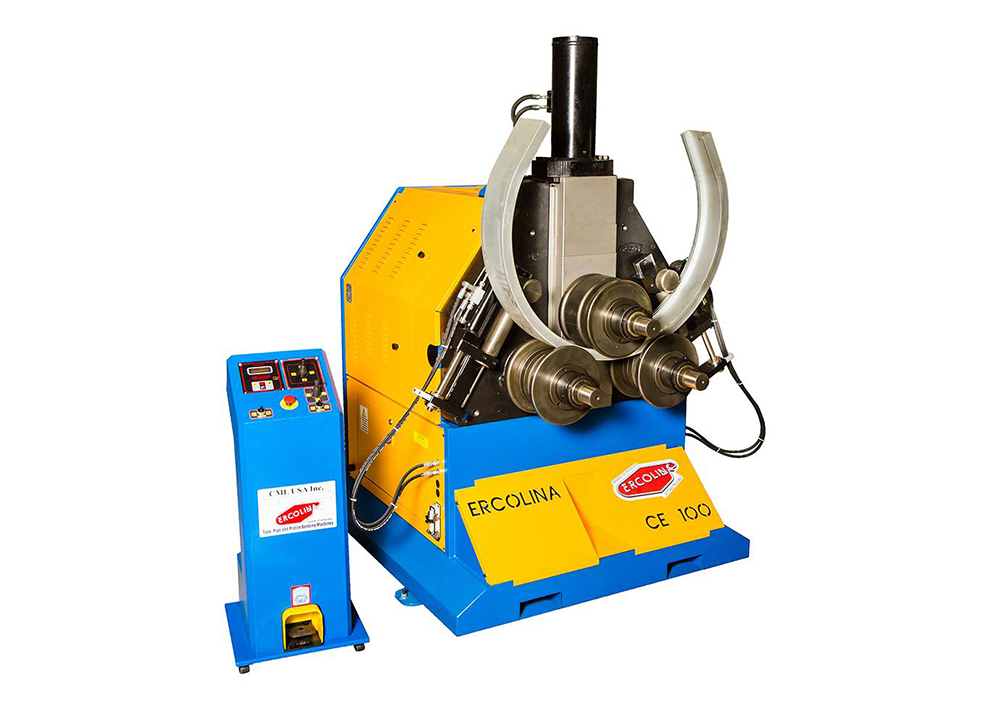

Ercolina’s CE100 Angle Roll – Section Bender has a heavy duty structure with rigid components for high section modulus ratings.

Standard Features
  • 100mm roll shaft diameter
  • Maximum pipe capacity 4″ Sch. 40
  • Maximum angle capacity 4″ x 4″ x 1/2″
  • Bending speeds 20% faster than competitive machines
  • Forged roll shafts precision ground and fitted for maximum performance and minimal deflection
  • Heavy duty structure and rigid components for high section modulus ratings
  • Reinforced engineered mainframe design proven to outperform competitive models
  • Three axis hydraulic anti-twist system for angle iron “Leg-in” applications
  • Patented by Ercolina, simultaneous downfeed and roll movement minimizes deformation
  • Programmable touch pad controls with digital center roll positioning display
  • Memory storage with 8 individual programs and unlimited passes
  • Remote control pendent with low voltage controls and foot pedal switch
  • Threaded roll shafts with micrometric flange adjustment helps eliminate spacer usage
  • 3 Motor, inline direct drive roll shaft system with motor and brake on each shaft
  • All capacities based on mild grade materials; heavy wall and high tensile materials reduce machine capacity.
Specifications and Capacities
  • Pipe (Max.) 4″ Sch. 40
  • Angle (Max.) 4″ x 4″ x ½″
  • Tube (Max.) 4½″ – .237 wall
  • Roll Shaft Diameter 100mm
  • Center Roll Positioning Hydraulic 30 Tons
  • Shaft Speed 6 RPM
  • Universal Tooling (Included) 12⅝″ O.D.
  • Programming NC - Touchpad
  • Number of Programs 8
  • Distance between Shafts 19¼″
  • Section Modulus 90 cm³
  • Operating Voltage 220V or 480V 3ph
  • Length, Width, Height 66″ x 58″ x 8
Ercolina • Tube & Angle Roller • 3 Axis • CE100H3-RLI.
