2" Rotary Draw Bender
$0.00
Unit price
/
Unavailable

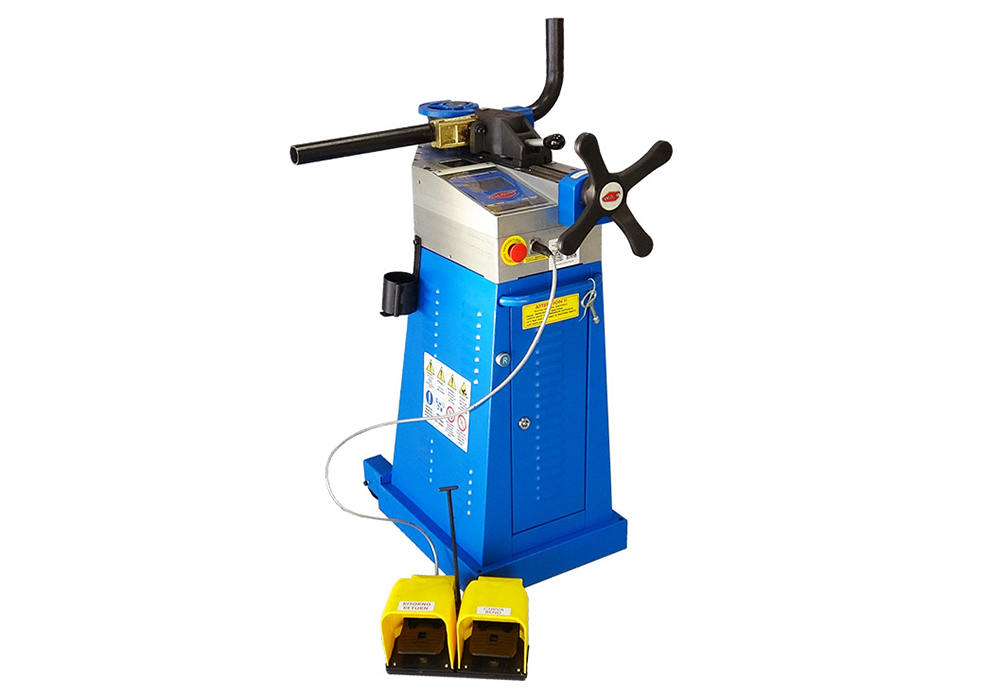

Ercolina SB48-TC Super Bender is ideal for producing consistent quality bends in large diameter pipe, tubes, squares, rectangular, solids and other profiles.
Standard Features
- Bend to CLR as small as 2D
- Touch screen programming of bend angle with system diagnostics in multiple language capability
- Touch screen indicates bend angle, springback and bend speed for each angle within the program
- Automatically monitors and adjusts bending speed throughout bend cycle providing maximum torque and protecting machine components
- Quick-change tooling system
- Material spring back compensation
- Foot pedal control for hands-free operation
- Counter bending die positioning monitored electronically for accuracy and repeatability
- Accepts Ercolina’s A40-P two axis positioning table for multiple and sequential bends
- Portable with base wheels and lift handle
- No hydraulic components
- All capacities based on A53 grade A 48,000 psi tensile materials; heavy wall and high tensile materials reduce machine capacity.
Specifications and Capacities
- Tube - (Min.) ¼″ (Max.) 2″
- Pipe - (Max.) 1½″ Sch. 40
- Centerline Radius - (Min.) 2 x Ø (Max.) 8⅞″
- Degree of Bend - 0-210°
- Bending Speed - Variable
- Unlimited programs with unlimited bends per program
- Material Positioning Table Available
- Voltage - 120V 1ph (3ph available)
- Length, Width, Height - 22½″ x 16¼″ x 39½″
- Weight- 300 lbs.
