3" Tube & Angle Roller
$0.00
Unit price
/
Unavailable

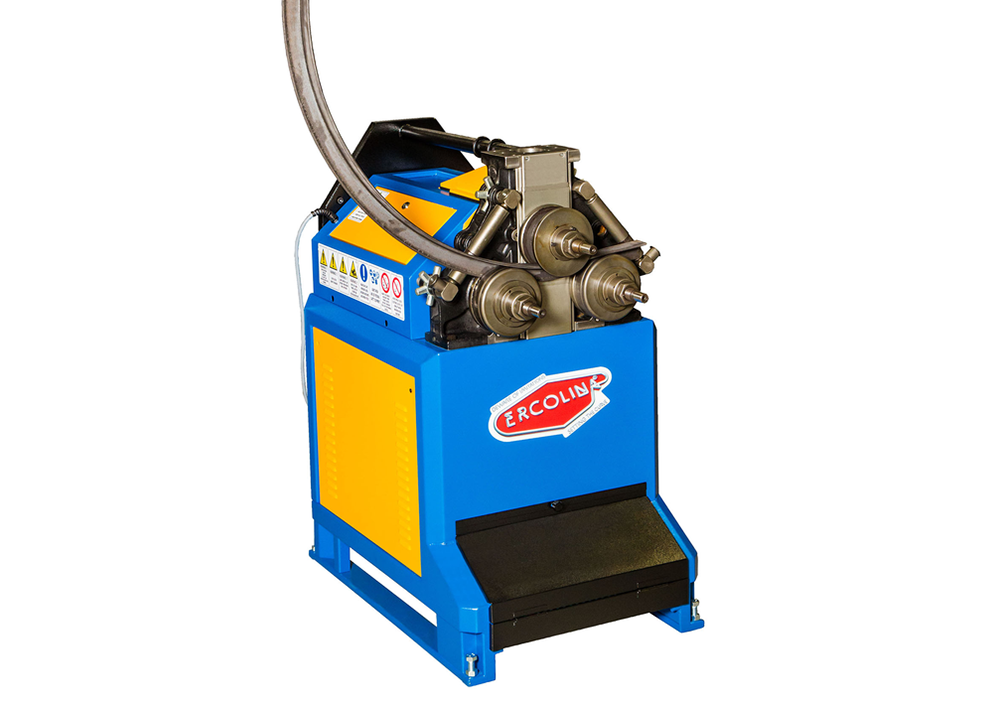

Ercolina’s CE50H3 angle roll model offers hydraulic center roll positioning.
Standard Features
- 50mm roll shaft diameter
- Maximum pipe capacity 2-1/2″ Sch. 40
- Maximum angle capacity 2-1/2″ x 2-1/2″ x 1/4″
- Bending speeds 20% faster than competitive machines
- Universal tooling set included with each machine – 7″ OD
- Forged roll shafts precision ground and fitted for maximum performance and minimal deflection
- Heavy duty structure and rigid components for high section modulus ratings
- Reinforced engineered mainframe design proven to outperform competitive models
- Patented by Ercolina simultaneous downfeed and roll movement to minimize deformation
- Programmable touchpad controls with digital center roll positioning display
- Hydraulic machine with memory storage with 8 individual programs and unlimited passes
- Remote pendent with low voltage controls and foot pedal switch
- Threaded roll shafts with micrometric flange adjustment helps eliminate spacer usage
- Inline direct drive roll shaft system
- Optional Anti-twist correction system for angle iron “Leg In” applications
- All capacities based on mild grade materials; heavy wall and high tensile materials reduce machine capacity.
Specifications and Capacities
- Pipe (Max.) 2½″ Sch. 10
- Angle (Max.) 2½″ x 2½″ x ¼″
- Tube (Max.) 3″ – .095 wall
- Roll Shaft Diameter 50mm
- Center Roll Positioning Hydraulic 10 Tons
- Shaft Speed 9 RPM
- Universal Tooling (Included) 7″ O.D.
- Programming NC - Touchpad
- Number of Programs 8
- Distance between Shafts 11⅞″
- Operating Voltage 220V or 480V 3ph
- Length, Width, Height 45″ x 29″ x 52″
